Abstract

The region of Metlaoui (South Atlas of Tunisia) is listed as one of the major seismotectonic zones of the national territory. About 10 major seismic events with moderate magnitude have occurred from the beginning of last century. The event of 7/11/1989 (Ms = 4.4) was undoubtedly the most important. It caused very significant material damage estimated at 224,525,000 Tunisian Dinars. This study uses a mapping tool to define areas with relatively high degrees of hazard and vulnerability. It also seeks to understand the active fault of the seismic events recorded in this region.

Keywords: Metlaoui region, Seismotectonic magnitude, Mapping, Hazards, Vulnerability, Active fault.

Received: 28 October 2021 / Revised: 2 December 2021 / Accepted: 20 December 2021/ Published: 14 January 2022

Contribution/ Originality

This study contributes to define the zones of strong seismicity, and to show that the faults of Gafsa-Séhib, Metlaoui-Mtalga and Metlaoui-Thèlja constitute an irrefutable argument for the neotectonic activity in southwestern Tunisia, as well as the existence of a link between these faults and the seismic activity recorded at Metlaoui.

1. INTRODUCTION

On November 7, 1989 at 5:48 p.m., the city of Metlaoui (South Atlas of Tunisia) Figure 1 experienced a relatively intense seismic activity (Aliouet, 2017; Dlala, 1992; Dlala & Hfaidh, 1993). The epicenter of this tremor was located a few kilometers south of the Metlaoui city. This earthquake, of magnitude 4.4, caused panic among the local population; it was arguably the most important in the region of Metlaoui since the last event of 22 May 1972 with Ms 4.2 (Aliouet, 2017; Dlala & Hfaidh, 1993; Said, 2011).

Current ongoing research on the assessment and understanding of seismic hazard has been discussed by several authors. Allen, Griffin, Leonard, Clark, and Ghasemi (2020); Allen, Griffin, and Clark (2018a) summarizes the evolution and the development of the seismic risk understanding in Australia 2018 (NSHA18), study the depth treatment of the epistemic uncertainties associated with the risk model improved in the catalog of earthquakes and identify the dominant factors causing the changes resulted from the hazard. The work of  Rashad, José, and Peláez (2020) in United Arab Emirates, Qatar and Bahrain, shows a probabilistic assessment of the seismic hazard in terms of maximum ground acceleration (PGA) and spectral acceleration values ​​(SA ), for a probability of exceeding 10% and 5% in 50 years. Three alternative ground motion attenuation models for crustal earthquakes and one for those of intermediate depth were selected and an applied catalog of Poisson earthquakes was prepared for this work. Ghasemi et al. (2020) study the region of Papua New Guinea (PNG) where the level of seismicity poses significant risks. The results of the updated seismic zoning map suggest a new probabilistic assessment and better understand the spatial distribution of seismic risk.

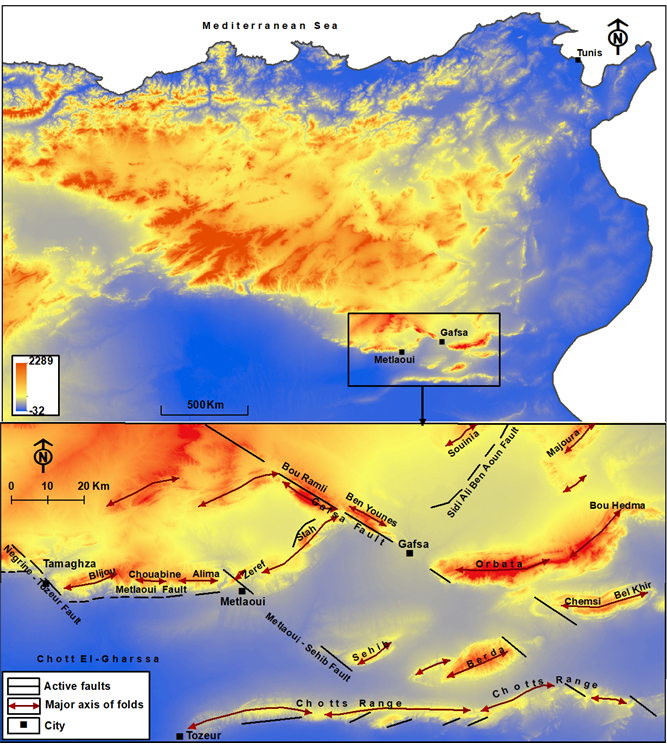

Figure 1. Digital elevation model of the southern Atlas of Tunisia with location of the study area.

Understanding seismic hazard is one of the fundamental objectives in earthquake monitoring. Seismic hazard is commonly evaluated as a measure of the largest event that may occur. This is important as it dictates the level of strong ground motion that may be induced by a seismic event, which is closely related to the potential for damage. A commonly referenced definition of seismic hazard is: "An estimation of the mean probability (over space and time) of the occurrence of a seismic event with a certain magnitude within a given time interval." The challenges in estimating seismic hazard are clearly highlighted in this definition with regard to the uncertainty involved in "mean probability", "certain magnitude" and "within a given time interval". Therefore, it is necessary to quantitatively analyze and discuss these three areas when predicting earthquake risk.

The seismic events that occurred in the city of Metlaoui caused enormous damage to property. This work is based on a macroseismic investigation initiated on the major event that affected the city of Metlaoui (Southern Tunisia) through a cartographic approach; it consists:

2. MATERIALS AND METHODS

The various cartographic, photographic and satellite data and the very high resolution images used for the study and mapping of the seismotectonic, the morpho-tectonic framework and the seismic hazard are presented in Table 1.

Table 1. Data used.

Database
Date
Scale
Title
Topographic maps
1957 and 1993
1/100000 and 1/50000
Metlaoui and Gafsa
Geological map
1985
1/100000
Metlaoui

1952
1/25000
Aerial photographs
1963
1/25000
Chain of  Metlaoui

1990
1/60000
ASTER satellite image
2000
15 m
Chain of  Metlaoui
Landsat ETM+ image 2001
2001
30 m
Chain of  Metlaoui
Very high resolution Google image
2009
15 m
2012
10 m
Chain of  Metlaoui
2015
5 m

The data used were geo-referenced in the same coordinate system: UTM projection-Zone 32 – and WGS 84 ellipsoid reference under ENVI software (Exelis-Visual Information Solutions, USA). All these layers were held within a Geographical Information System (ArcGIS, ESRI, USA).

The contribution of cartography to the approach of the seismic hazard required the collection of bibliographic information related to this topic, the collection of possible information on topography, geology, morphology and its links with neotectonic activity, seismology (historical and instrumental seismicity) and field research to control and update the information collected.

The general methodology for the representation of the sisimic hazard is illustrated in Figure 2. Data processing methods, data sources and fieldwork and surveys are reported.

Quaternary tectonics and geology in the southwest of Tunisia were studied by several authors (Aliouet, 2017; Aliouet, Soudani, Melki, & Ahmed, 2020; Ben-Ouezdou, 1994; Castany, 1953; Castany & EG., 1954; Coque & Jauzein, 1965; Gasmi, 2012; Roux, 1911; Said, 2011; Vaufrey, 1932; Zargouni, 1984; Zargouni, 1986) .

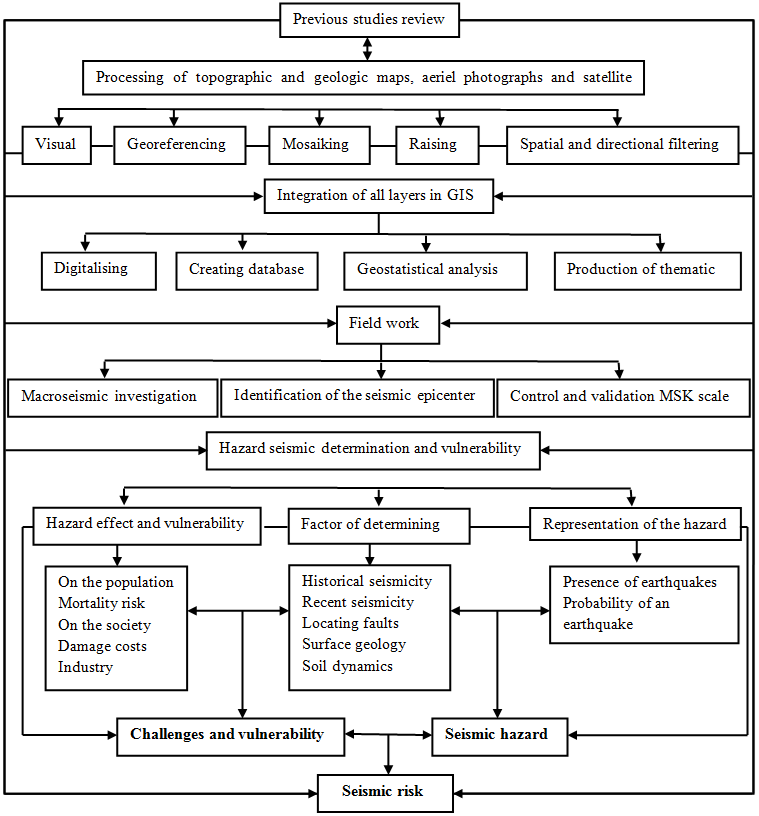

Figure 2. Data processing flowchart.

To understand the seismotectonic framework of the Metlaoui region, a seismotectonic map Figure 3 was developed to cover the city of Metlaoui and its surroundings within a radius of 100 km. This map has allowed us to identify two shortening directions: the first oriented NW-SE to NNW-SSE and the second direction West-East (Dlala, 1992). The calculated epicenters are distributed and concentrated around active faults known as active faults such as the Gafsa fault in direction N120, the Séhib fault in direction N135, the Metlaoui fault and that of the North of the Chotts in direction N90 (Zargouni, 1986). The large distribution of epicenters around the city of Metlaoui confirms that the latter is a privileged center of earthquakes.

A more detailed study at the level of the Metlaoui region shows that the epicenter of the main earthquake of the 7/11/1989 earthquake is located a few kilometers south of this city. It should be noted, according to neotectonic, seismotectonic and microtectonic data that this earthquake was triggered by a compressive stress field NW-SE which characterizes this region (Dlala & Hfaidh, 1993).

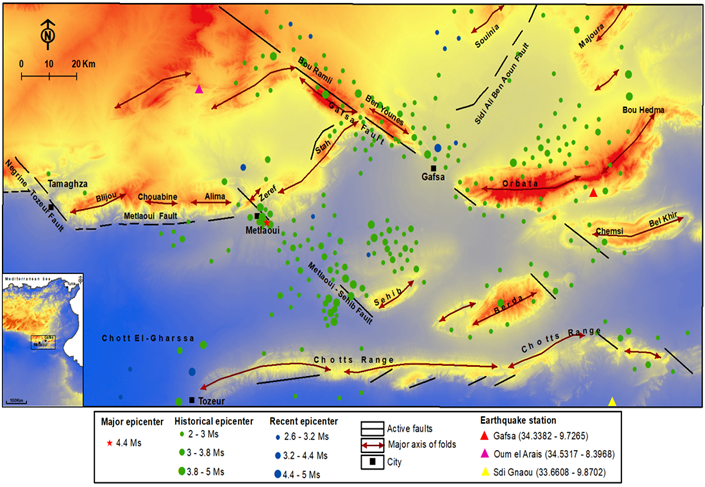

Figure 3. Seismotectonic map of the Metlaoui region within a radius of 100Km.

For the morpho-tectonic framework, a map of Geological and tectonic lineaments Figure 4 is established through topographic maps, the interpretation of aerial photos, type directional filtering (Sobel, Roberts, etc.), as well as through the application of various data fusion processing and spectral indices on Landsat-7 ETM + and ASTER satellite images of the Metlaoui region. In order to obtain a map of the probable lineaments, the combination and the superposition of the information drawn from these supports with the data of the geological map, of the bibliography and of field observations made it possible to identify the sure tectonic accidents.

The simplified map of tectonic lineaments revealed the important role of neotectonics in the arrangement of forms and formations at the level of the Metlaoui ridge and its southern foothills.

This work has two major objectives: i) To identify the influence of tectonic processes on the arrangement of landforms both in mountains and on the foothills, and ii) To address the probable role of certain accidents in the recent evolution of the relief south of the Metlaoui range and in the intensity of the current seismic events ».

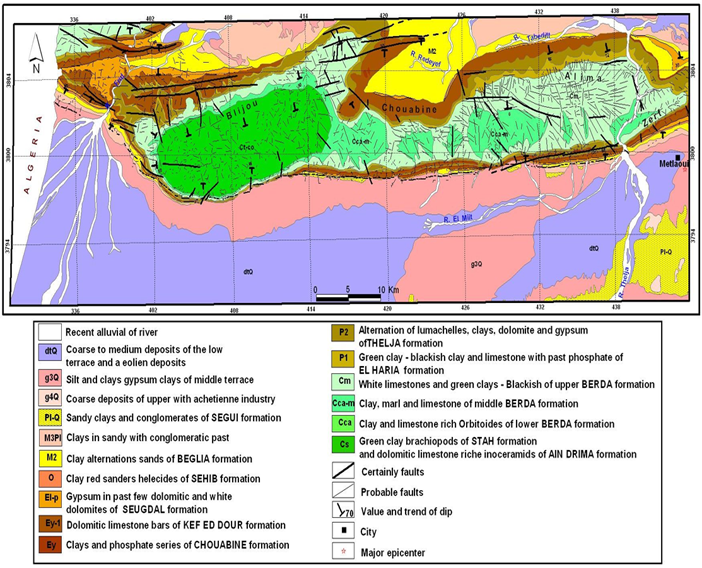

Figure 4. Geological and tectonic lineaments map of Metlaoui region.

3. RESULTS

The faults identified during the fieldwork are: the Metlaoui directional fault; the Mtalga-Metlaoui fault (Ben-Ouezdou & Zargouni, 1988) and the Thèlja-Metlaoui fault (Aliouet, 2017) which constitutes the extension towards the North of the Séhib fault. A more detailed study at the level of the Metlaoui region shows that the epicenter of the main earthquake of the 7/11/1989 is located a few kilometers south of the city of Metlaoui. In this area, the Metlaoui N90, Metlaoui-Mtalga N70 and the Metlaoui-Thelja N30 faults slipped during the recent Quaternary. The historical and instrumental seismicity data confirm that the seismicity of the Metlaoui region and its surroundings is related to the same earthquake fault.

3.1. Seismic Hazard Assessment in the Metlaoui Region

The Metlaoui region, as recorded in its seismic history about ten major events according to the catalogue of the National Institute of Metrology, Attafi (1973) is characterized by moderate magnitudes and maximum intensity levels that varied between VI and VII Table 2.

Table 2. Some seismic events in the Metlaoui region (INM).

Date
Magnitudes (Richter)
Intensity (MSK)
25/08/1911
4.40
VI
25/04/1912
4.40
VI
25/02/1916
4.40
VI
22/05/1972
5.00
VII
07/11/1989
4.40
VI
05/11/1990
3.20
VI
11/05/1994
4.50
VI
23/03/1996
3.30
VI
04/04/2008
2.43
III
12/08/2009
2.93
VI
29/04/2014
2.08
II

The earthquake of 7/11/1989, was recorded by the Sidi Gnaou station Figure 5. It was the most important in the Metlaoui region since the event of May 22, 1972 (Ms 4.2, Intensity VII).

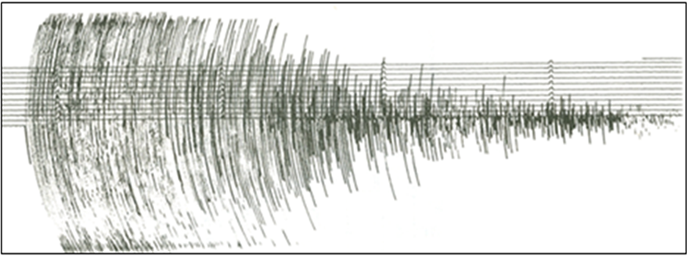

Figure 5. Earthquake of 7/11/1989 Ms = 4.4 Sidi Gnaou station.

To begin this task we have gathered the available data of historical and instrumental seismicity. A map of the distribution of intensities of the Metlaoui region within a radius of 100 km has been drawn up Figure 6. The latter shows the existence of four zones of strong seismic intensity varying between VI and VII (MSK intensity scale) such as the Metlaoui zone. Examination of the intensity map in the Metlaoui region shows that the orientation and distribution of the high intensities follow two alignments: West-East and North West-South East. This distribution is explained by the pre-existing faults.

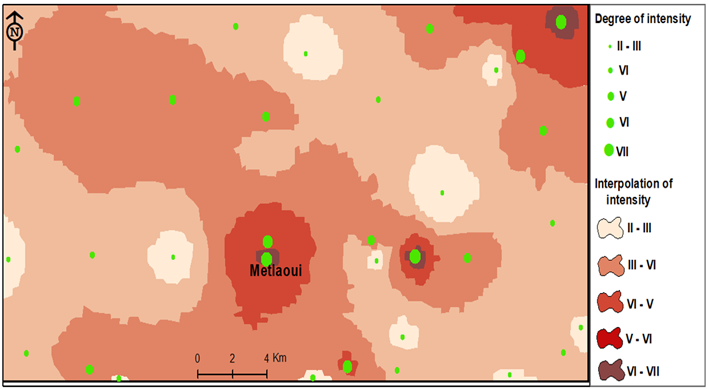

Figure 6. Simplified maximum intensity map in the Metlaoui region.

3.2. The Effects of the Metlaoui Earthquake on Buildings

The Housing Service of the Regional Directorate of Gafsa, was tasked, in the week following the magnitude 4.4 (Richter) seismic shock in Metlaoui on 7/11/1989, to carry out an investigation to estimate the cost of damage linked to this earthquake. The survey showed that the earthquake resulted in a severe impact on buildings with 175 houses suffering very serious damage, around 35% of the total number of buildings observed Table 3.

Table 3. Effect of the earthquake of 7/11/ 1989 on constructions in the Metlaoui region (Ministry of Equipment and Housing, Regional Directorate of Gafsa).

  Number   Locality
  Deanship
Number of constructions observed
Number of constructions with low disorders
Number of constructions with severe disorders
1 El  Kaîna
Mzirâa
15
6
9
2 Magroune1
Mzirâa
12
2
10
3 Magroune2
Mzirâa
07
0
7
4 Oued Lartha
Mzirâa
22
0
15
5 Ouled Ousaif
Mzirâa
06
0
6
6 Mzirâa
Mzirâa
98
7
43
7 Ennouhoudh
El markez
66
4
6
8 Moderne
El markez
13
4
4
9 El Amel
El markez
41
3
4
10 Ezourour1et 2
El mahata
43
6
24
11 Esâada East
El mahata
71
8
20
12 jeune
El mahata
15
5
4
13 Ennassim
El mahata
4
0
1
14 Esâada  West
El mahata
64
9
21
15 El Malaji
El markez
28
2
4
Totale
504
56
175

The earthquake caused very high damage in old buildings in several localities of the city of Metlaoui. Walls and roofs collapsed and large, deep cracks were observed. Fortunately no loss of human life was recorded.

4. DISCUSSION

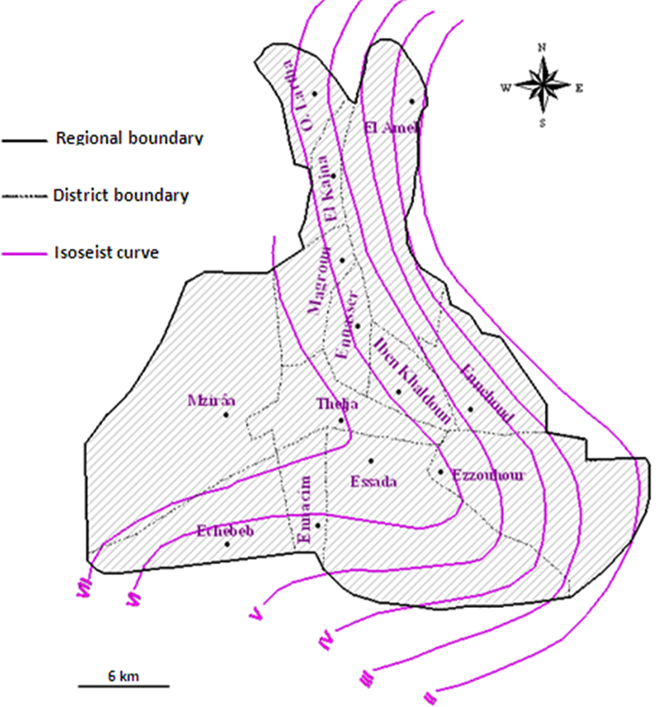

Figure 7. Isoseism map generalized in the Metlaoui city.

4.1. Macroseismic Investigation

A macroseismic survey was carried out in Metlaoui to investigate the effects of the earthquake of 7/11/1989. It was based on a hundred questionnaires, which were distributed to the population of the affected areas. We interpreted the information gathered using the MSK intensity scale to determine intensity levels. The distribution of intensity levels allowed us to identify the areas of highest intensity, which were used to determine the epicentral zone and produce the isoseistic curve map. The investigation carried out on the assessment of the cost of the damage relating to the material losses caused by this earthquake allowed us to clarify the assessment of the intensities in the disaster area. All localities affected by the earthquake of 7/11/1989 were classified according to the degree of intensity of damage using the MSK scale. This classification allowed us to establish the isoseismal map Figure 7.

4.2. Determination of the Seismic Hazard

The evaluation of the seismic hazard amounts to quantifying, for a given region, the possibility of being subjected to seismic shock of given characteristics. To determine the seismic hazard in the Metlaoui region, which is experiencing active seismicity, it is necessary to evoke the destructive characteristics of the earthquake of 7/11/1989. The census which was carried out by the Regional Directorate of Gafsa (Ministry of Equipment and Housing), as part of the assessment of the extent of the seismic risk. It shows that this earthquake was threatening for human life and especially its destructive character for buildings. Thus, around 231 buildings were damaged compared to the total number of buildings observed Table 4.

Table 4. Relative frequency of buildings affected by the earthquake of 7/11/1989 (according to the regional management of Gafsa, ministry of equipment and housing).

Number Locality
Deanship
Number of constructions observed
Number of damaged buildings
Frequency relating to damaged buildings
1 El Kaina
Mziraa
15
15
6.50
2 Magroun 1
Mziraa
12
12
5.19
3 Magroun 2
Mziraa
7
7
2.99
4 Oued Lartha
Mziraa
22
15
6.50
5 Ouled Oussaief
Mziraa
6
6
2.59
6 Mziraa
Mziraa
98
50
21.65
7 Ennouhoudh
El Markaz
66
10
4.32
8 Moderne
El Markaz
13
8
3.46
9 Malaji
El Markaz
28
6
2.59
10 El Amel
El Markaz
41
4
1.73
11 Ezzouhour1 et2
El Mahatta
43
30
12.98
12 Essaada East
El Mahatta
71
28
12.12
13 Le jeune
El Mahatta
15
9
3.89
14  Ennassim
El Mahatta
4
1
0.43
15 Essaada West
El Mahatta
64
30
12.98
Total
504
231
100

The material damage caused by this earthquake was very significant. It generated total financial losses estimated at 224,525,000 Tunisian Dinars, with 61,100,000 Tunisian Dinars for the losses recorded in public buildings (Tables 5 and 6).

Table 5. The financial impact of the 7/11/1989 earthquake on buildings (Ministry of Equipment and Housing, Regional Directorate of Gafsa).

The State’s contribution is estimated at

Number of houssing
Houssing cost (dinars)
Total costs (dinars)
Public institutions
Total costs (dinars) Public institutions
Category  2
13
461
5993
Primary schools
30 100 000
Category  3
383
204
78132
Secondary schools
13 000 000
Category  4
1755
80
140400
Administrations
18 400 000
Total
224525
Total
61 100 000

Table 6. Financial implications of the 7/11/1989 earthquake on public institutions (Ministry of Equipment and Housing, Regional Directorate of Gafsa).

Public institutions
Damage values
Primary schools
Modern city
2.500.000
El Kaina city
1.500.00
El Manjem city
2.700.000
Ennouhoud city
3.500.000
El Mahata city
4.500.000
Esâada city
1.500 .000
Zouhour city
1.000.000
Road to Tozeur
1.500.000
Républic city
7.500.000
El Thèlja city
2.200.000
El MIzirâa city
2.100.000
Secondary schools
Metlaoui secondary school
4.000.000
Technic secondary school
2.000.000
Mixed secondary school
7.000.000
Public administrations
Public bookstore
700.000
Finance recipe
1.000.000
The seat of Tribunal and Justice
5.500.000
Delegation center
2.200.000
The old hospital
5.000.000
Post center
1.500.000
Total
51.100.000

Indeed, this situation necessarily insists on finding solutions to this destructive phenomenon, to minimize material and bodily damage. Any study approach shows that the practice of the earthquake-resistant construction rule was an essential solution in all development programs in the future, both for the inhabitants (apartments, houses, etc.) and for the infrastructures (roads, bridges, etc.), as well. that the education of the populations of this region remains an important obligation to face the serious situation caused by this destructive catstrophy.

4.3. Mapping of the Seismic Hazard

Studies and research devoted to seismic hazard mapping are of paramount importance in the field of mitigation against this risk (Ksentini, 2004). Seismic hazard mapping is an essential element in its management since it allows thematic data to appear on the study area (extent of a risk, population, buildings, etc.) and to superimpose them.

It requires gathering all the data available on the morphotectonics, seismotectonics and seismicity of the region (historical and instrumental seismicity):

The shape of the isoseismal curves has in fact made it possible to define the risk levels from the weakest to the strongest; the highest level of risk corresponds to areas where the degrees of hazard and vulnerability range from relatively high to very high. It covers the areas closest to the corridor of the Thèlja-Metlaoui fault. The lowest level characterizes areas with low to relatively low threat level and / or vulnerability level.

The seismic hazard mapping remains a basic document for land use and urban planning in the city of Metlaoui. It is an essential tool in the prevention and management of crises. It covers the planner's expectations by providing answers to the knowledge of this hazard. It can help decision-makers and planners (Municipality, Ministry of Equipment and Housing ...) to orient the future expansion of the urban space of the city of Metlaoui and avoid the seismic risk corridor.

5. CONCLUSION

The study and cartographic approach of the seismic hazard in the Metlaoui region required collecting all possible information and updating the information collected. The analysis of the morpho tectonic and seismotectonic framework carried out in the area in question is a better recourse to better understand the network arrangement of the pre-existing faults. The latter prove a characteristic example of deformation in the recent Quaternary. They constitute an argument for neotectonic activity in the Metlaoui region and in the southwest of Tunisia. It would probably be the seismogenic source of all the seismic events recorded in this region, in particular the earthquake of 7/11/1989. The concentration of epicenters around the city of Metlaoui confirms that the latteris an area very vulnerable to seismic risk.

The examination of seismotectonic maps, of maximum intensities, isoseismal and generalized macroseismic investigation in the Metlaoui region have made it possible to identify areas with high seismicity which correspond to areas with degrees of hazard and vulnerabilities range from relatively high to very high. It also appears that the extension of the urban fabric does not take into account the seismo-tectonic risk. These new data should better guide the development and urban planning projects of the city of Metlaoui.

Funding: This study received no specific financial support.

Competing Interests: The authors declare that they have no competing interests.

Authors’ Contributions: Both authors contributed equally to the conception and design of the study.
