Abstract

The current situation of fast depleting non-renewable resources and excessive damage done to mother earth due to severe mechanization and industrialization has resulted in alarming rate of pollutions. The one-word answer for it is that we should start harnessing renewable resources of energy. Tapping sun’s energy is a wonderful and apt answer to the current situation of energy requirement. World over this technology is worked upon to make use of sun’s energy easy to be converted into usable energy form i.e. electricity. The research work being carried on in varied fields however to mention one such aspect of solar panels is irradiance -receiving and capturing powers. Along with the irradiance, the area of a panel which is exposed to sun, the daytime and location are some of the factors affecting the amount of power generated using solar power as generating source. From research point of view, to analyze the effect of variation of these parameters, it is difficult to get the analysis data using solar panels and hence now a day’s emulator is preferred and used for research purposes. This paper focuses on the basics of emulator, its structure, functioning, effect of various parameter variations on the analysis of the generated power and other related benefits using emulator. The paper also presents the effect of partial shading on the maximum power generated and the efficiency hence obtained. The performance analysis is done on an Experimental set up fabricated in Research lab.

Keywords: PV emulator, I-V, P-V characteristics, Photovoltaic module, Partial shading, Hardware implementation controller.

Received: 7 October 2021 / Revised: 10 November 2021 / Accepted: 3 December 2021/ Published: 28 December 2021

Contribution/ Originality

This paper contributes to the existing literature by presenting the effect of various parameter variations on the analysis of the generated power using solar power and related benefits using emulators. The performance analysis presented in the paper is done on an Experimental set up fabricated in the Research lab funded by DST, Delhi, India.

1. INTRODUCTION

Nowadays, with increasing exploitation of non-renewable energy resources, the world needs to focus more on renewable energy resources. Among all kinds of renewable energy resources, PV Solar energy is considered to be the most effective and sustainable one because of the abundance of solar radiant energy (Chiang, Chang, & Yen, 1998). Solar energy resource is one of the leading renewable resources helping worldwide to deal with energy and power generation crisis in both public as well as the private sector (Babu, Ram, Sangeetha, Laudani, & Rajasekar, 2016; Nishioka, Sakitani, Uraoka, & Fuyuki, 2007). The Worldwide growth of solar photovoltaic is extremely dynamic and varies strongly as per country. Global Solar PV is estimated to grow significantly from 494.3GW in 2018 to 1582.9 GW in 2030  (Al-Shetwi, Sujod, & Ramli, 2015).

The limitation for analysis of the photovoltaic system is not only that it requires large space as well as expensive installation of PV Panels but also varying environmental conditions (day, night, cloudy, rainy, etc.). To overcome these limitations PV emulator has been proposed to simulate the better performance of a photovoltaic system which can evaluate the performance in the laboratory at any time and also not reliant on any actual photovoltaic panel (Zhou, Holland, & Igic, 2014). The PV Emulator helps to emulate I-V (Current-voltage) curve and P-V (power voltage) curves of a solar cell (privileged by external conditions such as solar irradiance, temperature, and relative humidity) which is required for analysis purposes (Ebrahim, Ahmed, Elmasry, & Mohammed, 2015). PV emulator architecture comprises of three major sections: PV model implementation, control strategy, and power stage control (Ayop & Tan, 2017) which are discussed in detail in paper further.

2. NEED OF PV EMULATOR

Installation of an actual photovoltaic system for laboratory testing proves to be very costly and there is a change in climatic conditions, atmospheric conditions that cannot help in getting desired outputs (Shahabuddin et al., 2018). Therefore, a system is required which can emulate similar results of PV panel by varying different parameters necessary to get the desired output (Ayop & Tan, 2017). PV Emulators comprising of switching mode power supplies are highly recommended for high power applications. These are usually known for their high efficiency and fast dynamic response. It comprises of linear power supplies which comes into picture when there is low power control and also less complexity is required (Vagapov & Alecksey, 2016). Conventionally, controls of PV Emulators were usually digital (DSP Boards) but nowadays PV Emulators are PC controlled using a proprietary software like LabVIEW, DSPACE, PyLab works, MATLAB Simulink etc. These softwares provide an environment for better understanding of non-linearity of I-V / P-V Graphs, manually adjusting various parameters and easy extraction of experimental values (Vlad et al., 2017). PV Emulator simulates the I-V curve and the P-V curve under varying environmental conditions. It tests and verifies different parameters of a Photovoltaic system like efficiency, fill-factor etc.

3. SYSTEM DESCRIPTION

Figures 1 (a) and Figure 1 (b) is a connection diagram and block diagram representation of the proposed system with DC Programmable supply-based PV Emulator consisting of a PC installed with proprietary software (soft panel) connected with controller (SPVE001). The controller is bi- directionally connected to convertor which is further connected to load to give the desired output (Moussa, Khedher, & Bouallegue, 2019).

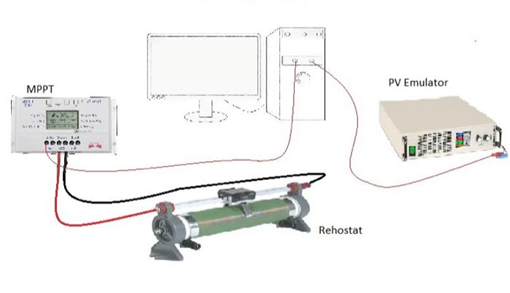

Figure-1(a). Connection diagram of the proposed system.

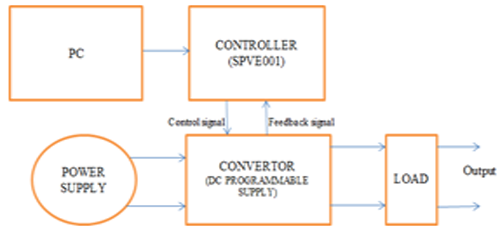

Figure-1(b). Block Diagram of proposed system with DC Programmable supply-based PV Emulator (Ebrahim et al., 2015).

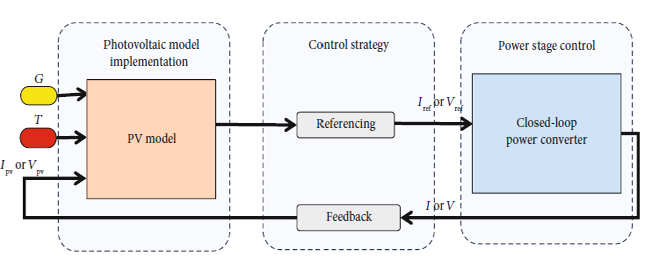

Figure 2 is a general Structure of the proposed PV Emulator Controller section shown with respect to Figure 1. In this, different parameters are varied which when compiled with the controller, generates a control signal and transfers to the DC Programmable supply. A DC-DC converter as shown in Figure 1 is an important part of a PV emulator based on converter logic. Thus, converter generates output voltage and output current, sends feedback to the controller, and generate output I-V and P-V curve and display them on PC (Shahabuddin et al., 2018).

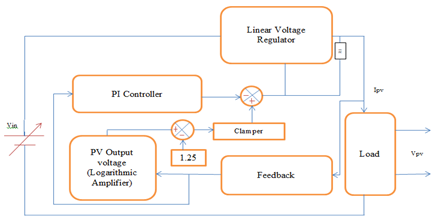

Figure-2. General Structure of PV Emulator Controller (Moussa et al., 2019).

3.1. Curve Analysis of a PV Module

The I-V curve as shown in Figure 3 is a graphical representation of the feasible working spots of a photovoltaic module when tested under conditions like solar radiation, temperature, and partial shading. There are a few variables that need to be understood for having a clear idea of the current-voltage graph: -

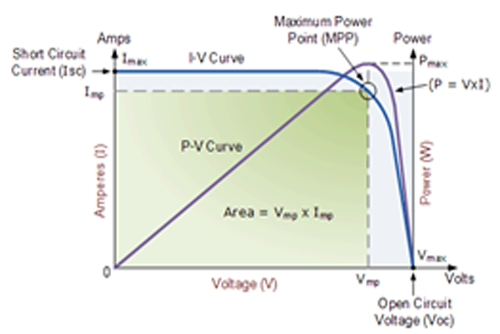

Figure-3. Non-linear I-V curve of PV cell or module.

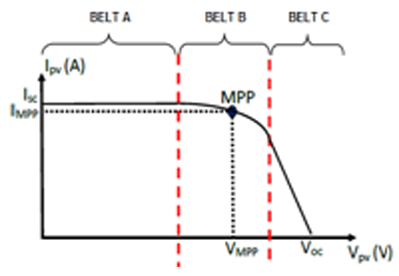

The I-V curve as shown in Figure 3 can be disintegrated into three belts: -

The above-stated variables are calculated by using the Equations 1 to 4 given below:

Where G is the irradiance, T is the temperature, Vmpp and Impp are the voltage and current at maximum power point respectively, a is the temperature coefficient of Isc, b is the temperature coefficient of Voc, c is the coefficient showing the power deviation in the function of the panel temperature.

The value of these variables is acquired in standard climatic conditions (Tsd=25°C, Gsd=1000W/ m²) where

Tsd and Gsd are temperature and irradiance at standard test conditions (STC) respectively and the values of Voc*, Isc*, Vmpp*, Impp* are given by the manufacturer of the PV module.

The PV current Ipv as shown in Figure 2 can be expressed as a function of T and G, and PV voltage VPV can be expressed as a function of T, G, and IPV. The proposed PV emulator is designed by using analog circuits, which are constructed around operational amplifiers, logarithmic amplifier, variable resistors, adjustable linear voltage regulator, the DC power supply, and power load to reproduce VPV = (T, G, IPV) data.

Figure-4. I-V and PV Curve.

The current-voltage (I-V) and power voltage (P-V) curves combined are given in Figure 4.MPP is the point where maximum power (Pmax) is extracted from PV module with voltage as Vmp and current as Imp. The I-V graph provides information that helps in designing a solar system so that it can work near to its MPP (Abdourraziq, Abdourraziq, Maaroufi, Tlemcani, & Darab, 2017; Patel & Rana, 2016).

3.2. Use of Simulation Software

This soft panel is applicable for Silov Solution Solar PV Emulator SPVE001. SPVE001 has 1KW Solar PV Emulator. When using the software, the programmable SPVE001 and PC must be connected via a USB cable for command’s transmission. The soft panel is designed to program SPVE001 as a Solar Panel, and it monitors the output of Solar PV Emulator. When the input parameters are set, the screen will show the output waveform to preview I-V and P-V characteristics of a Solar PV cell or Solar PV Panels before sending out the set voltage and current to the Power Supply.

4. FUNCTIONING OF AN EMULATOR

The solar PV emulator is a programmable device designed to emulate an actual solar panel. It comprises of three key elements: - PV Model Implementation, Control Strategy and power stage control (Ebrahim et al., 2015) as shown in Figure 5. The Primary agenda of the PV model implementation is to possess the data in all operating conditions derived from the PV Emulator which imitates the real photovoltaic cell. It generates the characteristics of PV panels. It has three inputs: - Irradiance (G), Temperature (T), measured PV panel current or voltage depending on control type used for the power convertor (voltage controlled or current controlled). The Control Strategy is the level between PV model and power converter. It decides the juncture between load characteristics and PV emulator characteristics (Mallal, El Bahir, & Hassboun, 2019). The control stage is implemented to lead the measured current or voltage as close as possible to reference current or voltage (Iref or Vref). Power convertor can be of three types based on PV emulator purpose: linear regulator (Moussa et al., 2019) programmable DC power supply (Ayop & Tan, 2017) and switching mode power supply (SMPS) (Ickilli, Can, & Parlak, 2012).

Figure-5. General PV emulator architecture.

5. EXPERIMENTAL RESULTS

The experimental setup of Figure 1 is shown in Figure 6 below

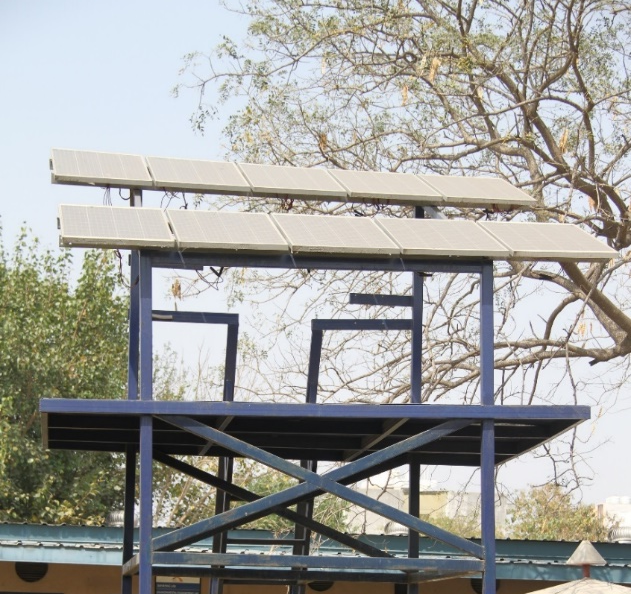

Figure-6(a). Solar Panel of 1kW capacity.

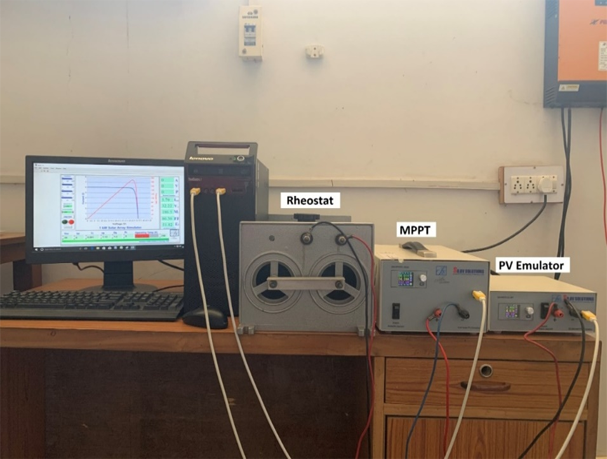

Figure-6(b). Experimental Setup of proposed system.

The Emulator as shown in Figure 6 (b) is connected to the controller through PC which will take control signal from the controller and give the feedback signal to the controller for appropriate action. The output (display of PC) panel have irradiance settings of four panels, temperature settings and the value of effect of variation of irradiance, temperature can be measured in terms of current and voltage at Max power, maximum power extracted, fill factor and percentage efficiency.

(a) Effect of Temperature Variations:

The temperature of the panels is varied from 0 degrees to 50 degrees in a step of 25 each i.e. 0 °, 25° and 50°keeping irradiance constant at STC and corresponding I-V and P-V curves obtained are shown in Figures 7 (a) and 7 (b). Table 1 shows the corresponding calculated parameters for these variations in temperature.

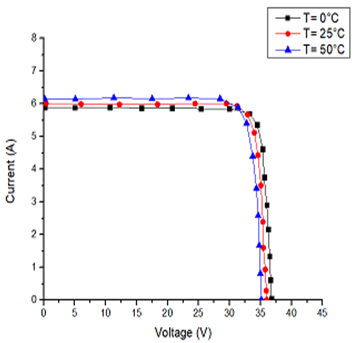

Figure-7(a). I-V curve for temperature variations.

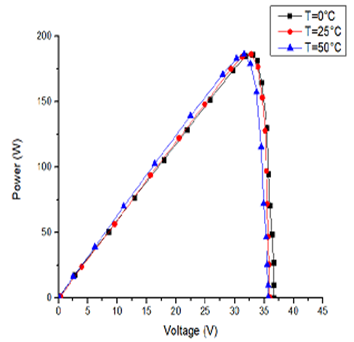

Figure-7(b). P-V curve for temperature variations.

Table-1. Calculated Parameters for temperature variation.

Calculated Parameters
Values at T=0°C
Values at T=25°C
Values at T=50°C
Current at max. power, Impp(A)
5.66
5.79
5.91
Voltage at max. power, Vmpp(V)
32.99
32.22
31.45
Open circuit voltage, Voc(V)
37
36
35
Short Circuit current Isc(A)
5.8
6
6.2
Maximum power, P(W)
186.8
186.5
186
Fill factor, FF
87.36
86.36
85.36
Efficiency (%)
51.9
51.82
51.66

The graphs and table given above shows that as the temperature increases, Impp and Isc increases, Vmpp and Voc decreases resulting in decrease in maximum power with increase in temperature. The results also show that with the increase in temperature, fill factor and efficiency of generating power also decreases.

(b) Effect of Irradiance Variations

Keeping the temperature constant at STC, the irradiance is varied with values of 1000 W/m2,650 W/m2 and 500 W/m2 and results as obtained are shown in Figures 8(a) and Figure 8 (b) in terms of I-V and P-V curve and Table 2 showing the corresponding calculated parameters.

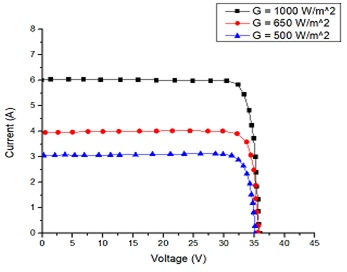

Figure-8(a). I-V curve for irradiance variations.

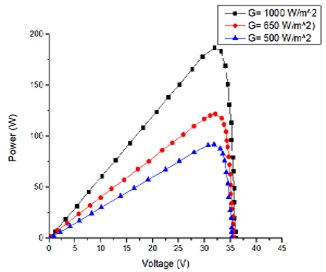

Figure-8(b). P-V curve for irradiance variations.

Table-2. Calculated Parameters for Irradiance variation.

Calculated Parameters
Values at G=500 W/m2
Values at G=650 W/m2
Values at G=1000 W/m2
Current at max. power-Impp(A)
2.92
3.78
5.79
Voltage at max. power-Vmpp(V)
31.48
31.76
32.22
Open circuit voltage VOC(V)
35
35.6
35.7
Short Circuit current Isc (A)
3
4
6
Maximum power-Mp (W)
91.96
120.3
186.5
Fill factor-FF
85.99
86.14
86.36
Efficiency (%)
50.8
51.03
51.82

The graphs and table given above shows that as the irradiance increases, Impp, Isc, Vmpp, Voc, Mp, Fill-factor and efficiency all increases however the increase is current is very high as compared to increase in voltages. The variation in currents is nearly double when irradiance doubles resulting in nearly doubling the maximum power extracted from the panels. Thus, by enhancing irradiance the maximum power extracted from the panels improves drastically along with some improvement in efficiency.

(c) Effect of Partial Shading

Partial shading is the concept of shading effect on few PV panels resulting in difference in irradiance received by these shaded panels as compared to non-shaded panels. The software used in the proposed model have the restriction of irradiance of first panel (G1)> irradiance of second panel (G2)> irradiance of third panel (G3)>irradiance of fourth panel (G4). Figure 9 (a), Figure  9(b), Figure 9(c) and Figure 9 (d) shows the I-V and P-V curve for the various partial shading conditions of the four panel and Table 3 and Table 4 shows the corresponding calculated parameters.

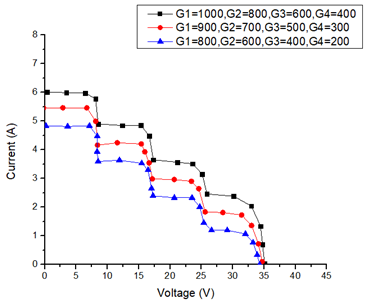

Figure-9(a). I-V curve for partial shadingvariations.

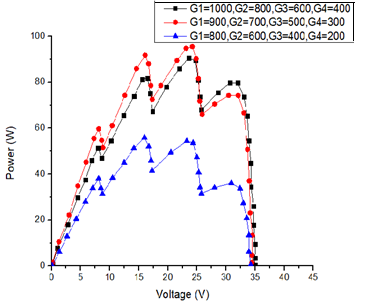

Figure-9(b). P-V curve for partial shading variations.

Table-3. Calculated Parameters for partial shading variations.

  Calculated Parameters
Values at
G1=1000 W/m2 G2=800W/m2
G3=600 W/m2G4=400 W/m2
Values at
G1=900 W/m2G2=700W/m2
G3=500 W/m2G4=300 W/m2
Values at
G1=800 W/m2G2=600 W/m2
G3=400 W/m2G4=200 W/m2
Current at max. power-Impp(A)
3.454
2.854
3.509
Voltage at max. power-Vmpp(V)
23.75
23.59
15.84
Maximum power-Mp(W)
82.03
67.34
55.59
Open circuit voltage VOC(V)
35
34.9
34.8
Short Circuit current Isc (A)
6
5.5
4.9
Fill factor-FF
39.08
35.79
33.41
Efficiency (%)
32.44
31.17
30.49

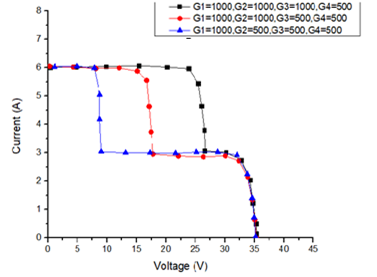

Figure-9(c ). I-V curve for partial shading variations.

Figure-9(d). P-V curve for partial shading variations.

Table-4. Calculated Parameters for partial shading variation.

  Calculated Parameters
Values at
G1=1000 W/m2 G2=1000W/m2
G3=1000 W/m2G4=500 W/m2
Values at
G1=1000 W/m2G2=1000W/m2
G3=500 W/m2G4=500 W/m2
Values at
G1=1000 W/m2G2=500 W/m2
G3=500 W/m2G4=500 W/m2
Current at max. power-Impp(A)
5.79
5.721
2.854
Voltage at max. power-Vmpp(V)
24.16
16.1
31.46
Maximum power-Mp(W)
139.9
92.12
89.79
Open circuit voltage VOC(V)
35
35
35
Short Circuit current Isc(A)
6
6
6
Fill factor-FF
66.21
43.6
42.49
Efficiency (%)
44.64
34.39
40.09

It is clear from Figure 9 and Table 3,4 that due to partial shading, Maximum power extracted from the panels reduces drastically leading to decrease in fill factor and efficiency.

(d) Comparison of Parameters with and Without Partial Shading Condition

Table 5 compares the effect of partial shading of only one panel out of four with respect to all non-shaded panels. It is clear from the Table that the power extracted reduces drastically due to partial shading condition thereby reducing the fill factor and overall efficiency of the panels.

Table-5. Comparison of Parameters with and without partial shading (only one panel is partial shaded).

Calculated Parameters
Values at G
(i.e. G1=G2=G3=G4=1000 W/m2)
Values at
G1=1000 W/m2 G2=1000W/m2
G3=1000 W/m2G4=500 W/m2
Current at max. power-Impp(A)
5.79
5.79
Voltage at max. power-Vmpp(V)
32.22
24.16
Open circuit voltage VOC(V)
35.7
35
Short Circuit current Isc (A)
6
6
Maximum power-Mp(W)
186.5
139.9
Fill factor-FF
86.36
66.21
Efficiency (%)
51.82
44.64

6. CONCLUSION

This paper presented an insight of the PV emulator and its ability to produce I-V and P-V characteristics like the actual PV panels under different environmental conditions. This will be helpful to replicate actual solar panels from different manufacturers by providing information about the effect of variations due to the temperature, irradiance, and partial shading on overall performance. A hardware experimental set up is formulated in the research lab wherein an emulator is connected to controller and software for analysis purposes. The result hence obtained is summarized as below:

  1. As the temperature increases, Impp and Isc increases, Vmpp and Voc decreases, resulting in decrease in maximum power extracted from the panels and decrease in efficiency.
  2. As the irradiance increases, Impp, Isc, Vmpp, Voc, Mp, Fill-factor and efficiency increases, however the increase in current is very high as compared to increase in voltage, leading to very high increase in maximum power extracted from the panels.
  3. Due to partial shading, maximum power extracted from the panels reduces drastically, leading to decrease in efficiency.

The obtained results show the ability of the photovoltaic emulator to replicate the results obtained from actual PV panels. Along with this, it will be worthy to share that emulator requires much less space than a photovoltaic system. The PV emulator also allows the modules to be characterized under known conditions and can be translated for other conditions, i.e. if it is cloudy and the short-circuit current is lower than expected, the converted values can properly indicate expected short-circuit current, etc. thereby helpful in obtaining various research related parameters for performance analysis of modelled PV Panel. The PV emulator can further be used to test various MPPT algorithms with or without load safely for comparison purposes before hardware implementations.
