Abstract

High performance TiO2 photoanodes undoped and doped with silver nanoparticels of size about 15 nm were fabricated. Employing these electrodes dye-sensitized solar cells (DSSCs) were fabricated using N719 dye as sensitizer and iodide-triodide as redox couple. Current-voltage measurements were performed under the illumination of 100 mW cm-2 (AM 1.5). The electrical parameters of the fabricated cells were extracted from the current-voltage data that include open-circuit voltage, short-circuit current, shunt resistance, series resistance, fill-factor, ideality factor and solar energy-to-electricity conversion efficiency. The comparison of parameters revealed improvement in both the photovoltaic and electrical parameters of the plasmonic cell. The conversion efficiency measured for the reference cell without Ag NPs in TiO2 was 7.43 %, whereas the efficiency of plasmonic device with TiO2:Ag NPs was 9.26 %, resulting an overall efficiency improvement of  23% with Ag NPs. The increased performance of the plasmonic DSSC can be assigned to the improvement of its photovoltaic and electrical parameters. The improved short-circuit photocurrent density appears to be boosted due the enhanced light harvesting capability of the photoanode caused by the localized surface plasmon resonance effect induced in Ag nanoparticles. While, the rise in Voc can be credited to the upward shift of Fermi level of TiO2 due to the dopping of Ag nanoparticles in TiO2 network.

Keywords: Dye-sensitized solar cells, Photoanode, Compact layer, Ag nanoparticles, Plasmonic device, Fermi level shifting.

Received: 5 July 2018 / Revised: 13 August 2018 / Accepted: 20 September 2018/ Published: 2 November 2018

Contribution/ Originality

This study is based on one of the few attempts on photoanode engineering employing plasmonic effect for developing higher efficiency DSSCs. The comparison with the existing data has revealed significant improvement in the photovoltaic and electrical properties of the plasmonic device. This study has reported that Ag nanoparticles hold a unique plasmonic effect employing which performance parameters of the DSSC are improved much greater as compared to other metallic nanoparticles.


1. INTRODUCTION

The dye-sensitized solar cells (DSSCs), initially reported by O’regan and Grfitzeli (1991) have attracted much interest of the scientists and researchers as next-generation alternative potential photovoltaic technology to the traditional silicon-based owing to their manufacturing ease, low price, reasonable  efficiency, unique applications, design flexibility and clean source of renewable energy (Elbohy et al., 2015; Toor et al., 2016; Shah et al., 2017; Shah et al., 2018; Toor et al., 2018; Wei et al., 2018).

A DSSC comprises of a photoanode typically a mesoporous wide band semiconducotor film deposited on a fluorine-doped tin oxide (FTO) glass which is sensitized with a dye, an electrolyte consisting of redox coupled solution and a counter electrode commonly consisting of a platinum coated conductive glass substrate (Nazeeruddin et al., 2011). To make a device, the two electrodes are joined together and electrolyte is injected in between. Great efforts have been put until now for the manufacturing and optimization of various components of DSSC and have been the subject of a number of review articles (Gong et al., 2012; Saranya et al., 2015; Su’ait et al., 2015; Wali et al., 2015; Ye et al., 2015; Fan et al., 2017; Gong et al., 2017; Yeoh and Chan, 2017; Yun et al., 2018).

Since its birth, efficiency of DSSC has reached 14.5% under standard conditions (Lee et al., 2017). Although, this has doubled since its birth, however, the theoretical limit for the efficiency of DSSC is 26.8% which is yet to be  achieved (Tripathi et al., 2015). The photoanode is an important component of the DSSC. This provides support for the adsorption of sensitizer and helps in the transportation of the photo-excited electrons from the sensitizer to the external circuit (Ye et al., 2015). Light absorption by sensitizer and the capability of the photoanode material to collect and transfer the charges efficiently with in the diffusion length is decisive for the high conversion efficiency of DSSC. Power conversion efficiency could be increased by manipulating the photoanode structure in different ways like increasing the surface area of the photoanode material, designing new dyes, inserting different nanostructured material like noble metals, etc (Nbelayim et al., 2017).

A way to widen the surface area of photoanode material and to decrease the recombination of charges is to treat the TiO2 films by TiCl4 solution. By depositing a thin compact layer of TiO2 particles prior to mesoporous TiO2 film will reduce the recombination of charges at FTO/TiO2 and FTO/electrolyte interfaces, while post treatment of photoanode with TiCl4 increase the surface area of photoanode and the quantity of dye adsorption. Both of these result in the increment of incident light absorption and ultimately enhanced photocurrent (Lee et al., 2012). The concept of insertion or doping of noble metals in photoanode has shown tremendous effect on the power conversion efficiency by boosting the photo-absorption cross-section of the dye (Saravanan et al., 2017). In noble metals like silver, gold, etc, the localized surface plasmon resonance (LSPR) phenomenon is induced by the collective oscillation of electrons in the nanostructure which is further stimulated by the incident light, hence, the absorption of light and scattering effect is increased that rises the current generation of the cell and ultimately improves the efficiency of DSSC (Jun et al., 2016; Villanueva-Cab et al., 2016).

In spite of the accomplishment of record efficiency in DSSCs, scaling up of the technology new techniques and approaches are required with guaranteed price improvement and steadiness in efficiency (Sarker et al., 2015). Knowledge of the substantial parameters affecting photovoltaic response of the solar cells are required for the designing, replication and their improvement (Ishibashi et al., 2008; Kyaw et al., 2012; Elbohy et al., 2015). In this work, photovoltaic performance of the plasmonic DSSC employing high performance TiO2 photoanode doped with silver nanoparticles is carried out. Current density – voltage (J–V) curve of the device is compared under light with the reference cell. The electrical parameters of the fabricated cells were extracted from the current-voltage data, that include open-circuit voltage, short-circuit current, shunt resistance, series resistance, fill factor, ideality factor and solar energy-to-electricity conversion efficiency. The comparison of these parameters of both types of devices are also made.

2. EXPERIMENTAL DETAILS

2.1. Preparation of Silver Nanoparticles Suspension

Ag NPs of approximately 15 nm diameter were prepared by simple chemical reduction route. Silver nitrate AgNO3 of analytical grade purity was used as starting materials without further purification. 1M AgNO3 was added in 20 ml DI water. This solution was heated till boiling with slowly stirring. 1% sodium boroxide with 0.2% PVP in 5 ml DI water was separately prepared and was added to the heated solution of AgNO3 drop wise until a bright yellow color was achieved.

2.2. Optical Absorption Measurements of Silver Nanoparticle Colloidal Solution

UV-Vis-NIR absorption spectra of Ag Nanoparticles solution was taken by a Varian Cary 5000 spectrometer. Transmission electron microscopy (TEM) images of NPs were acquired by a JEOL 2100F microscope.

2.3. Preparation of High Performance TiO2 and TiO2: Ag NPs Photoanodes

The high performance TiO2 photoanodes were prepared and sensitized in N719 dye using a previously reported method (Elbohy et al., 2016). For plasmonic cell, the photoanode was soaked in Ag nanoparticles suspension. The color of the photoanode changed from transparent to transparent yellowish after Ag nanoparticles were attached to TiO2. The cells were assembled using method described in our previous work (Shah et al., 2017). The current-voltage measurements of fabricated DSSCs were performed under solar simulator illumination light intensity of 100 mW.cm-2 using the facility described in a previous work (Elbohy et al., 2016).

3. RESULTS AND DISCUSSION

3.1. Absorbance Spectra of Colloidal Ag NPs

The silver nanoparticles were successfully synthesized by chemical reduction method. The creation of Ag NPs was detected with the appearance of yellowish stain solution (Mahmudin et al., 2015). For the confirmation of formation and structural characteristics the UV-Vis spectroscopy of Ag NPs in colloidal solution was performed. The absorption spectra of the colloid shown in Fig. 1 makes it obvious that the absorbance peak is around 400 nm, that corresponds to surface plasmon resonance (SPR) of Ag NPs.  The presence of this single peak signifies  the presence of spherical or roughly spherical silver nanoparticles (Guzmán et al., 2009) and is also confirmed by the TEM image (Figure 2).

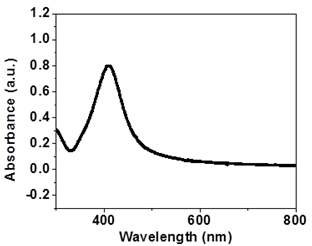

Fig-1. Absorbance spectra of colloidal Ag NPs.

3.2. Surface morphology of Colloidal Ag NPs

The TEM image of colloidal Ag naparticles is shown in Fig. 2. It is evident from the figure that the morphology of nanoparticles is almost spherical and average size is about 15 nm. The morphology is in agreement with the shape of the SPR band in the UV–Vis spectra.

Fig-2. TEM images of Ag NPs.

3.3. Photovoltaic Performance

The short-circuit current density (Jsc), open-circuit voltage (Voc), fill factor (FF), ideality factor (n), series resistance (Rs), shunt resistance (Rsh) and photoelectric conversion efficiency (η) were determined to compare the performance of the DSSCs made employing undoped and silver nanoparticles doped photoanodes. These parameters can be expressed as follows:

The fill factor corresponds to the largest rectangular area that can fit in the J-V curve and can be calculated using the following relation:

Where Vmax and Imax represent the voltage and current at the point of maximum power output of the cell, respectively.

The value of the ideality factor (n) under illumination was determined via the following relation (Würfel et al., 2015):

Where Jo is the saturation current, q is the electron charge, V is the applied voltage, and kB is the Boltzmann constant.

The current–voltage  characteristics  largely  dependent  on  the series (Rs)  and  shunt  (Rsh)  resistance (Mali et al., 2012; Shah et al., 2017).  The values of these resistances can be determined from the I-V curve using the relations (3) and (4) (Jiang et al., 2008).

The efficiency (n) of a solar cell is defined as the ratio of output power to total power incident on the cell and can be calculated by the following relation:

Where Jsh is the short circuit current density, Voc is the open circuit voltage, Pin is the intensity of incident light.

The current density versus voltage (J-V) characteristics of the plasmonic and reference DSSC fabricated using N719 dye as sensitizer measured under 1 Sun illumination are compared in figure 3.

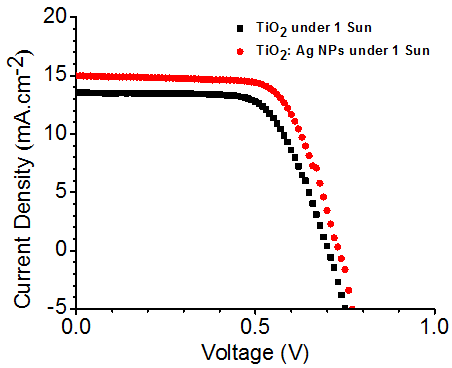

Fig-3. J-V curves recorded under AM 1.5G illumination on TiO2 and TiO2:Ag NPs photoanodes based DSSCs.

The various parameters of the TiO2 and TiO2:Ag NPs photoanodes based DSSCs are determined and shown in table 1. As can be observed from figure 3 and table 1, the plasmonic DSSC has exhibited better performance and provided  a  solar energy-to-electricity conversion efficiency (n) of   9.26 %  with higher  short-circuit  photocurrent  density (Jsc) of 15.82 mA/cm2, higher  open-circuit  photovoltage of (Voc)  770  mV and higher FF of 76.0. The overall power conversion efficiency, short circuit current density, open circuit voltage and fill factor of the plasmonic device were observed higher than the reference cell by 25%, 12.4 %, 5.5 % and 5.6 %, respectively.

Table-1. Comparison of the parameters of TiO2 and TiO2: Ag NPs photoanodes based DSSCs.

Photoanode
Jsc (mA.cm-2)
Voc (mV)
FF (%)
h (%)
n
Rsh (W)
Rs (W)
TiO2
14.08
730
72.2
7.43
2.8
12.1 k
52
TiO2:Ag NPs
15.82
770
76
9.26
1.6
7.1 k
40

A relatively  higher  Rs is obtained owing  to  the  potential  blockade  at  the  TiO2/dye interface, Mali et al. (2012).  In the  case of  plasmonic DSSC  the comparatively higher performance can be attributed to the  lower  value  of  Rs. The greater value of Rsh for the plasmonic DSSC specifies less leakage current through the cell.  The enhanced performance of the plasmonic cell may be attributed to the decrease in the ideality factor of the cell.

The increament in the Jsc value for the Ag NPs doped photoanode based device can be attributed to plasmon induced charge transfer from Ag nanoparticles to TiO2 (Ahmad et al., 2017). The VOC of a DSSC is equal to the difference between the quasi-Fermi level in the TiO2 layer and Fermi level of the redox couple, therefore, the improvement in Voc can be assigned to upward shift of Fermi level of TiO2 with the dopping of Ag NPs (Ahmad et al., 2017; Shah et al., 2017).

4. CONCLUSIONS

In this study, Ag nanoparticles doped high performance TiO2 photoanode has been investigated for enhancing the performance of DSSCs. Photovoltaic study showed improvement in the device parameters and performance.  The enhanced performance of the plasmonic cell is attributed to the lower value  of  Rs, larger value of Rsh, less shorts or leaks, lower value of ideality factor, enhanced light harvesting caused by the localized surface plasmon resonance effect, the plasmon induced charge transfer from Ag nanoparticles and upward shift of Fermi level of TiO2 with the addition of Ag nanoparticles.

Funding: This research was carried out with financial support extended by the HEC Pakistan and US National Academy of Sciences, under the PAK-US Science and Technology Cooperation Program, Phase-V, project number 5-530/PAK-US/HEC/2013/193.
Competing Interests: The authors declare that they have no competing interests.
Contributors/Acknowledgement: All authors contributed equally to the conception and design of the study. The authors are thankful to the financial support extended by the HEC Pakistan and US National Academy of Sciences, under the PAK-US Science and Technology Cooperation Program, Phase-V, project number 5-530/PAK-US/HEC/2013/193.
