1. INTRODUCTION

Zirconium titanate (ZrTiO4) is a small ceramic constituent material which is widely use of application to very good thermal and electrical properties and high resistance to heat and corrosive environment [1]. ZrTiO4 thin films coatings have attracted much attention especially in dielectric applications which have high resistivity and dielectric constant (38-40) [2]. For size miniaturization, a low dielectric loss (tanδ ~10-2 to 10-3) for high frequency selectivity and low signal attenuation and more [3]. Laterally, with the good dielectric properties, ZrTiO4 thin films also exhibit good optical and electrical properties to find applications in antireflection coatings, wave guides for light, an insulator in electronic devices which requiring high permittivity and as protective coatings [2]. Due to their excellent optical, electrical and dielectric properties, it is important to study the dependence of film properties on the deposition conditions at the present time [4].

ZrTiO4 thin films have been deposited by different techniques such as the dc magnetron sputtered ZrTiO4 thin films have dielectric constants in the range of 35±7. The change in the dielectric constants due to the variation in the deposition temperature [5]. Moreover, those the correlation between the micro strain and dielectric loss of ZrTiO4 thin films were studied. ZrTiO4 thin films have been additional studied because of their excellent dielectric properties, such as the dielectric constant and dielectric loss of 38 and 0.006, respectively [6].

For engineering applications, the deposition of the ZrTiO4 thin films should be simple processing and low cost. In the present study, ZrTiO4 thin films were using dc magnetron sputtering which is a low cost preparation method. ZrTiO4 thin films fabrication which has dielectric properties at low frequencies should be by using dc magnetron sputtering technique from the Zr and Ti targets have not been reported earlier. Moreover, Pamua, et al. [4] Growth of nanocrystalline zirconium titanate thin films at ambient temperatures using dc reactive magnetron sputtering from Zr and Ti metal targets placed in a single cathode. The present study demonstrates the dielectric constant of these films did not show much dependence on high frequency were not much to shows whereas the loss is higher at lower frequency region. The dielectric constant and loss of the films measured at frequencies in the range of

100 Hz-15 MHz were values between 37.0-46.5 and 0.007-0.03, respectively. In this paper, we designed the ZrTiO4 thin film by a reactive dc magnetron co-sputtering. The methodical study of structural, microstructural, and dielectric properties of the films are reported.

2. EXPERIMENTAL PROCEDURE

2.1. Film Preparation

ZrTiO4 thin films were deposited on Si (100) wafers, glass slides and stanless steels of the substrates by using a reactive dc magnetron co-sputtering system. Titanium (99.97%) and zirconium (99.95%) metals with a diameter of

3 inches were used as sputtering targets. Ultra high prerity Ar (99.999%) and O2 (99.98%) gases were used as sputtering and reactive gas respectively. By reactive fixed flow rates of 4 sccm and 20 sccm, respectively. The target to substrate distance for both targets was 13 cm. A diffusion pump together with a rotary pump were used to achieve the base pressure of 5.0 × 10-5 mbar. Prior to deposition, the targets were pre-sputtered for 5 min in order to eliminate the contaminants from the target surfaces. The Zr sputtering current (IZr) and Ti sputtering current (ITi) were varied from 0.5 A to 2.5 A without heating. The deposition time for all prepared films was 40 min.

2.2. Characterization

The structural analysis of the ZrTiO4 thin films were characterized by X-ray diffraction. The phases were compared with the Joint Committee on Powder Diffraction Standard (JCPDS) files. The crystallite size of the films were determined from Scherrer’s formula. The surface and cross-sectional morphologies were examined by field emission scanning electron microscopy (FE-SEM: Hitachi, S4700). The transmittance spectra of the ZrTiO4 thin films are analyzed by UV-VIS-NIR-spectrophotometer (Shimapzu, UV-3600) in the range of 200 nm to 2500 nm. Swanepoel’s envelope method was used to determine the optical constant of the films [7]. The optical packing densities (p) of the films were calculated by using the relation is given by the bulk refractive index (nb = 2.31) of ZrTiO4 and nf is the observed film refractive index and wavelength; l = 650 nm [8]. The dielectric constant and dielectric loss (tanδ) were measured by using a precision impedance analyzer Agilent 4294A.

3. RESULTS AND DISCUSSIONS

3.1. Crystalline Structure

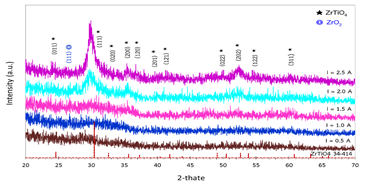

Fig-1 shows the XRD pattern of the ZrTiO4 thin films at different sputtering currents of 0.5 A to 2.5 A without heating. This result showed that the thin films were crystalline, which exhibits an orthorhombic crystal structure (JCPDS 34-0415) and possesses α-PbO2-type structure belonging to the Pbcn space group [9].

The ZrTiO4 thin films were an amorphous structure at sputtering currents of 0.5 A, 1.0 A and 1.5 A respectively. And show preferred orientation in (111) direction at sputtering currents of 2.0 A and 2.5 A. The other observed XRD patterns are (011), (020), (200), (120), (201), (121), (022), (202), (122), and (311) peaks were shown also. Titania and zirconia thin films deposited by dc magnetron sputtering without substrate heating been reported to be amorphous earlier [10, 11].

The crystallite sizes are estimated from the full width at half maximum (FWHM) of the 111 peaks by using Scherrer’s method (Table-1). The crystallite sizes are in the range of 14.95-20.06 nm at sputtering currents of 2.0 A and 2.5 A respectively. It is found that crystallite size increases with increasing sputtering currents.

Fig-1. XRD patterns of the ZrTiO4 thin films
Source: The result is a doctoral research. Analyzed with X-ray diffraction from School of Energy, Environment and Materials, King Mongkut’s University of Technology Thonburi

3.2. Cross-Sectional Morphology

Fig-2 shows the FE-SEM cross-sectional images of the ZrTiO4 thin films. It is seen that the thickness of the films increases from 60 to 280 nm when sputtering current was increased from 0.5 A to 2.5 A without heating. These results are consistent with the XRD results, that are the intensity of XRD peaks increases with increasing sputtering current. It is clearly visible that the sputtering currents of 2.5 A present a columnar structure. These films are formed by a dense coalescence of columns propagating from the electrode to the film surface. It is concluded that increasing the sputtering currents of 2.5 A (Fig-2 (c)), promotes the formation of denser columnar structures, likely due to sputtering processes have much high energy and consistent with the results of the XRD patterns.

Fig-2. Cross-sectional FE-SEM morphology of the ZrTiO4 thin films (a) 0.5 A, (b) 1.5 A, and (c) 2.5 A.

Source: The result is a doctoral research. Analyzed with field emission scanning electron microscopy from Thai Microelectronics Center:TMEC.

3.3. Properties of ZrTiO4 Thin Films

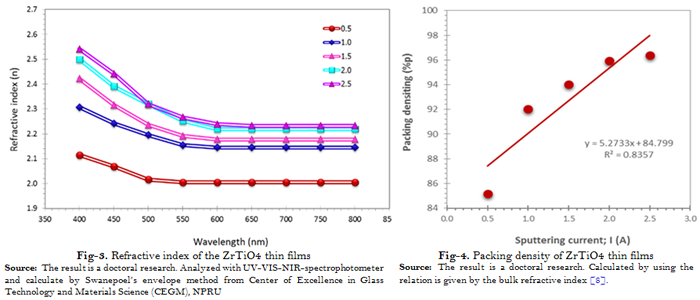

The refractive index (n) of the films deposited on glass at different sputtering currents are shown in Fig-3. It is observed that refractive index increased with increase in sputtering currents. The values of n ranged between 2.01 and 2.23 (at 650 nm) [4]. It is seen that the film structure changes from a porous structure into a dense structure and have crystallite more than as the sputtering currents increases. These means that the packing density of the films increases together with crystallite addition are results in the increase in the refractive index. The optical packing density values were ranged between 0.85 and 0.96 (Fig-4). From this study it was observed that the refractive index values were strongly dependent on packing densities [4].

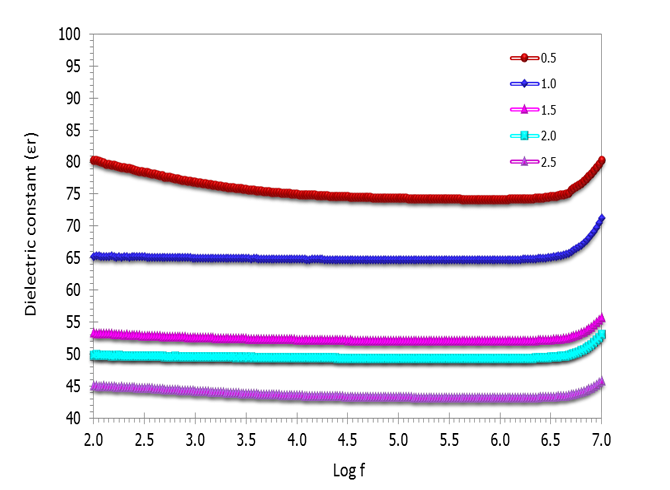

Fig-5. Dielectric constant of the ZrTiO4 thin films

Source: The result is a doctoral research. Analyzed with precision impedance analyzer from National Metal and Materials Technology Center (MTEC).

Fig-5 shows the dielectric properties of the ZrTiO4 thin films at different sputtering currents of 0.5 A to 2.5 A. The dielectric constant and loss of the films were measured at frequencies in the range of 100 Hz-10 MHz and it is observed that as the sputtering current increases, the high dielectric constant width decreases from 74.3 to 43.3 for ZrTiO4 thin films which were higher more than which other research because of higher energy [4, 12, 13].

4. CONCLUSIONS

ZrTiO4 thin films were deposited by reactive dc magnetron co-sputtering method without heating. The XRD results showed that crystal structure of ZrTiO4 thin films at sputtering currents above 2.0 A was crystallization of the orthorhombic phase (111). The values of refractive index ranged between 2.01 and 2.23 (at 650 nm). The optical packing density values were ranged between 0.85 and 0.96. From this study, it was observed that the refractive index values were strongly dependent on packing densities and crystalline of films. The high dielectric constant width decreases from 74.3 to 43.3 when sputtering current increases, which is higher than other research. In, conclusion the refractive index, packing density and dielectric constant depend on energy of sputtering currents.

REFERENCES

[1] J. Macan, A. Gajovic, D. Dekanic, and H. Ivankovic, "Zirconium titanate ceramics for humidity sensors synthesized by Sol-Gel Process, J.G.Heinrich and C. Aneziris," in Proc. 10th ECerS Conf., Goller Verlag, Baden-Baden, 2007.

[2] D. Pamu, K. Sudheendran, K. M. Ghanashyam, and K. C. J. Raju, "Optical and microwave characteristics of ambient temperature deposited zirconium tin titanate high-k films," EPJ Applied Physics, vol. 44, pp. 71-75, 2008. View at Google Scholar | View at Publisher

[3] C. L. Huang, M. H. Weng, C. C. Wu, and C. C. Wei, "Microwave dielectric properties and microstructures of V2O5-Modified Zr0.8Sn0.2TiO4 ceramics," Japanese Journal of Applied Physics, vol. 40, pp. 698-702, 2001.View at Google Scholar

[4] D. Pamua, K. Sudheendranb, K. M. Ghanashyam, and R. K. C. James, "Dielectric properties of ambient temperature grown nanocrystalline ZrTiO4 thin films using DC magnetron sputtering," Materials Science and Engineering, vol. 168, pp. 208-213, 2010. View at Google Scholar | View at Publisher

[5] T. Kim, J. Oh, B. Park, and K. S. Hong, "Dielectric properties and strain analysis in paraelectric ZrTiO4 thin films deposited by DC Magnetron Sputtering," Japanese Journal of Applied Physics, vol. 39, pp. 4153-4157, 2000.View at Google Scholar | View at Publisher

[6] D. S. Kim, D. H. Park, G. D. Kim, and S. Y. Choi, "Dielectric properties of ZrTiO4 thin films synthesized by sol-gel method," Metals and Materials International, vol. 10, pp. 361-365, 2004.View at Google Scholar | View at Publisher

[7] R. Swanepoel, "Determination of the thickness and optical constants of amorphous silico," Journal of Physics E, vol. 16, pp. 1214-1222, 1983. View at Google Scholar | View at Publisher

[8] S. K. Venkata, K. Sudheendran, K. M. Ghanashyam, R. K. C. James, and A. K. Bhatnagar, "Effect of process parameters and post deposition annealing on the optical, structural and microwave dielectric properties of RF magnetron sputtered (Ba0.5,Sr0.5)TiO3 thin films," Vacuum, vol. 81, pp. 307-316, 2006. View at Google Scholar | View at Publisher

[9] R. E. Newnham, "Crystal structure of ZrTiO4," Journal of the American Ceramic Society, vol. 55, pp. 409-413, 1967.

[10] M. H. Suhail, R. G. Mohan, and S. Mohan, "Dc reactive magnetron sputtering of titanium-structural and optical characterization of TiO2 films," Journal of Applied Physics, vol. 71, pp. 1421-1427, 1992.View at Google Scholar | View at Publisher

[11] M. H. Suhail, R. G. Mohan, and S. Mohan, "Studies on the properties of zirconia films prepared by direct current reactive magnetron sputtering," Journal of Vacuum Science & Technology A, vol. 9, pp. 2675-2677, 1991. View at Google Scholar | View at Publisher

[12] M. Viticoli, G. Padeletti, S. Kaciulis, G. M. Ingo, L. Pandolfi, and C. Zaldo, "Structural and dielectric properties of ZrTiO4 and Zr0.8Sn0.2TiO4 deposited by pulsed laser deposition," Materials Science and Engineering: B, vol. 118, pp. 87-91, 2005.View at Google Scholar | View at Publisher

[13] G. Padeletti, A. Cusma, M. Viticoli, G. M. Ingo, A. Mezzi, and B. Watts, "ZT thin films produced by metal organic-chemical vapour deposition to be used as high-k dielectrics," Materials Science and Engineering: B, vol. 109, pp. 104-112, 2004. View at Google Scholar | View at Publisher
