Oxy-fuel Combustion is a technology with the potential of drastically reducing the amount of CO2 emission, it relies on the use of oxygen and recycled CO2 instead of air as the oxidant. This helps to reduce the amount of the CO2 and NOx emissions. This study focuses on the components of flue gas produced and their amounts for oxy-fuel combustion in a coal-fired power plant (CFPP) and also the boiler efficiency using the direct (input-output) method. The combustion process of pulverized coal in a 120MW power plant is studied using Aspen Plus 11. The amount of each component in flue gas in coal-fired processes with air or O2/ CO2 (using recycle of 20%, 40%, 60% and 80% of CO2) as oxidizer was obtained. From the process simulation, as the recycle % of CO2 was increased, the flame temperature, CO and NOx emissions were reduced. The simulation results of air combustion were compared with that of oxy-fuel combustion with 80% recycle and it was seen that the flame temperature dropped from 1894oC when air was used as oxidizer to 1679oC for oxy-fuel combustion with 80% recycle. Also, there was a reduction in the amount of NOx produced, but the SOx levels were constant for both combustion processes. The Gross Calorific Value (GCV) of the coal was calculated from its Proximate Analysis using Dulong’s formula and it was used to estimate the Boiler Efficiency using the Direct (Input-Output) method and a value of 83.6% was obtained.
Keywords: Clean coal technology, Carbon capture, Coal sequestration, Coal combustion, Coal gasification.
Received: 29 October 2021 / Revised: 3 December 2021 / Accepted: 17 December 2021/ Published: 27 December 2021
This study is one of the very few studies that has done a detailed evaluation of oxy-fuel combustion of coal using Aspen plus in order to generate energy and also to combat emissions from coal usage through carbon capture and storage.
Global energy consumption is rapidly growing coupled with a corresponding rise in the prices of oil has prompted a quest for alternate energy sources. In Nigeria for instance, this is a massive problem due to inconsistent electricity. This seemingly non-availability of power supply has affected negatively and severely lowered the output of numerous companies and household businesses. The results are significant losses and system breakdown which can wreak great havoc on a nation’s economy. Coal burning is one of the common sources of electricity in many countries throughout the world and remain the major source of GDP to Nigeria’s sister country, South Africa [1]. The combustion of coal makes provision for stable and sustainable fuel supplies. The combustion of coal is also a sustainable energy process as it utilizes existing infrastructure for mining, processing, and transportation, making it a very cost-effective procedure to many countries' portfolios. Carbon dioxide (CO2) is commonly considered as the primary greenhouse gas. According to the International Energy Agency's (IEA) published statistics, global CO2 emissions summed up to 31.6 billion tons in 2011, with coal burning accounting for approximately 40% of the total [2]. Due to these statistics, reducing CO2 emissions from coal-fired power plants (CFPP) is critical and have been a subject of debate and of great concern for over a decade now. In most first world countries, public awareness and laws had been enacted which have led to a number of policies in reducing greenhouse gas emissions. Most of the restrictions were influenced by international initiatives such as the Kyoto Protocol and the IPCC Intergovernmental Panel on Climate Change [3]. Previous studies on coal and coal products has revealed that CO2 produced from coal combustion and gasification processes can be trapped and stored in a variety of ways, including [4]:
Post combustion capture: CO2 produced by combustion in pulverized coal-fired power plants are captured via flue gas cleaning using chemical solvents, solid minerals, and other methods.
Pre-combustion capture: This involves trapping the CO2 before combustion: Integrated gasification combined cycle (IGCC) uses a shift reactor to convert CO to CO2.
Oxy-fuel Combustion: Combustion in oxygen rather than air using recovered flue gas is referred to as oxyfuel combustion. Chemical looping combustion: Oxygen is delivered using solid oxygen carriers and it reacts with fuel to produce a high-concentration CO2 stream in the flue gas, after which the oxygen carriers are regenerated to collect oxygen from air in a second reactor.
Oxy-fuel combustion is one of the most crucial CO2 capture methods for both new and current CFPPs. To produce CO2 rich stream appropriate for sequestration, coal is burned with a mixture of oxygen and recycled flue gas [5]. Oxy-fuel combustion is a very distinct pollution control measure and quite unique combustion technology [5-7]. At the same time, Oxides of nitrogen (NOx) emissions can be mitigated. Other gaseous emissions include water vapor, sulphur oxides (SOx), nitrogen oxides (NOx), carbon dioxide (CO2), and usually some compounds identified as hazardous air pollutants (HAPs) including mercury [8]. Combustion of fuels containing sulphur always results in the emission of SO2 and SO3. The SO2 and SO3 reacts with the water vapour in the atmosphere to form sulphurous acid (H2SO3) and sulfuric acid (H2SO4) respectively. This dual by-product along with nitric acid (HNO3) forms the components of acid rain. Acid rain is a major environmental issue because it can result in the damage of crops, forest degradation, reduced visibility, chemical breaking down of building stones and monuments, and promotes acidity of rivers and streams [7].
During the combustion process, NOx is one of the primary pollutants emitted into the environment. NOx is actually used to represent the emissions of nitric oxide (NO), nitrogen dioxide (NO2), and trace quantities of other nitrogen species. NOx is generated mainly from the combustion of fossil fuels at high temperatures and the presence of oxygen and nitrogen from both the air and fuel or only the fuel, in the case of oxy-fuel combustion [8]. Incomplete combustion of fuel represents wasted energy and causes an uprise in CO and Particulate Matter emissions. Although burning of liquid and gaseous fuels typically results in low CO emissions, control of unburned carbon in boiler ssystems that burn solid fuel (e.g., coal. Biomass etc.) is a crucial design and operating concern. Fuel properties, boiler and firing system characteristics, and unit operating conditions are some of the factors that affect Carbon burnout [8]. The fuel (either solid, liquid or gas) is burned using a mixture of oxygen (usually greater than 95 percent purity) and recycled flue gas in oxyfuel combustion. To ensure that there is the right gas to transmit the heat through the boiler, the recycled flue gas is used to stabilize flame temperature and cover up for the volume of the missing N2 (if air was used as oxidizer for the combustion). Boiler Efficiency is the energy absorbed by the boiler feed water during its conversion to superheated steam and is expressed as a percentage of the energy in the fuel. The boiler efficiency can be stated as either a net or a gross calorific value. Calorific values must be corrected to ambient temperature before being used in boiler calculations [9]. BS 845 is one of the standards for assessing boiler efficiency [10] however the two major approaches for determining boiler efficiency is by the "direct method" or the "indirect or loss method". In the Direct method (or Input-Output method), the difference between the energy in steam and the energy in boiler feed water, expressed as a percentage of the energy in fuel, is the boiler efficiency [9].
The indirect method focuses on the Energy Lost; hence its name ‘Loss Method’ and it’s represented by the equation below:
Or
Boiler Efficiency = 100- L1-L2-L3-L4-L5 (5)
Where L1 to L5 are the various losses as a percentage of the total energy of the fuel
L1 = Latent heat loss in flue gas.
L2 = Sensible Heat loss in the gas.
L3 = Loss due to unburn carbon.
L4 = Radiation loss.
L5 = Other losses such as incomplete combustion, heat in boiler ash, boiler blowdown, inward flow of cold air and outward flow of hot gases.
Process system simulation can be utilized to create a model of a coal fired power plant. Process system simulation is an established approach used in research for process engineering that relies on system engineering sciences that covers important fields such as chemical thermodynamics, chemical reaction kinetics, transfer phenomena, and gas-solid hydrodynamics with computer technology as the primary simulation instrument. Hysys, Chem CAD, Pro II, Aspen, and other advanced commercial software packages are available for process system simulation [11].
For sensitivity analysis, design optimization, and case studies, the Aspen Plus software package has been effectively employed to model several stable processes involving solids, electrolytes, coals, and biomass samples using the sequential modular method and the equation-oriented method [12]. From the standpoint of computable simulation, Aspen Plus can create a process simulation with reasonable reliability and adaptability [13]. Hence, In this study Aspen Plus is used to simulate oxy-fuel combustion of a 120MW coal fired power plant.
2.1. Simulation Method
One of the simulation packages included in the Aspen Engineering Suite is Aspen Plus. AspenTech Int. Inc. designed and developed this software. The Aspen Plus simulator provides a sufficient and integrated solution for a chemical process, allowing users to assess the process' viability as well as carry out researches and investigate the effect of various operational parameters on the overall process being modelled. It is a powerful tool for simulation studies and aids in the analysis of process outcomes. The ASPEN Plus program is well-known for its ability to model a whole power plant on a large scale [14, 15].The Aspen Plus version 11 simulation tool was used to simulate the coal combustion process in this study and this was due to some important factors that were taken into consideration, such as:
(1) Its ability to define non-traditional components in terms of ultimate and proximate analysis, as well as a large built-in physical database that may be employed in all simulation computations.
(2) Its ability to handle solids. Even if the solids effectively pass through the process as an inert component, the inclusion of solids in a process alters the heat and mass balances. Aspen Plus has a specific property model for solid particles that appropriately depicts them [14].
The flowsheet was set up in ASPEN Plus as "solids with metric units," and the simulation was given the MIXCINC stream class. Both conventional and non-traditional streams can be used in the simulation with the MIXCINC stream class. Non-conventional components are non-homogeneous substances with a variable composition that are not found in the Aspen Plus component database. The physical features of these components, such as coal, must be defined by traditional coal studies (ultimate and proximate, as well as sulphur analysis), whereas the traditional stream class was utilized to simulate all other streams in the simulation. The enthalpy and density of the substance must also be calculated using property procedures. The property methods HCOALGEN and DCOALIGHT were used to calculate the enthalpy and density of the coal in this study. Based on the ultimate, proximate, sulphur analyses, these property approaches use statistical correlations to calculate the specific heat, enthalpy, and density of the coal. The IDEAL base calculation approach was chosen for its simplicity; this allowed calculations to be done using the Ideal Gas Law.
2.2. Process Description
Figure 1 depicts the flow chart of oxy-fuel coal combustion. Wet coal is first placed in a drying block (RStoic), where it is dried by primary air (AIR1). This step lowers the moisture content from 10% to 1%. All nonconventional components are assumed to have a molecular weight of 1.0 by Aspen Plus. According to the reaction, 1 mol of coal reacts with 0.0555084 mol of water to produce 0.0555084 mol of water. By controlling the Fortran block, the moisture content of coal is reduced from 10% to 1%. The chemical reaction for coal drying is Equation 6. The coal is then placed in a FLASHING block (DRY-FLAS) to further evaporate the H2O from the system
The non-conventional solid dried coal feed (DRYCOAL) is first broken down into its constituents (C, H, O, N, S, and ASH) and moisture (H2O). The RYIELD reactor, labelled DECOMP, performs the coal decomposition. It is a reactor model that generates products based on component yield specifications obtained from the ultimate analysis, and this determines the mass flowrate of each component in the RYIELD reactor block outlet stream (DECOMP) transformed to solid carbon graphite.
Gaseous H2, O2, N2, Cl2 and S are formed from hydrogen, oxygen, nitrogen, chlorine, and sulphur. The moisture content is then transformed to liquid H2O at the end. The heat generated by coal decomposition (HEAT-DEC) is transferred to the Combustion Chamber (COMB-CHB). The Fortran block calculates the decomposition products H2O, H2, O2, N2, Cl2, S, C, and Ash.
The combustion process is modelled using Gibb's reactor (COMB-CHB). The oxidant is a mix of O2 and CO2 from recovered flue gas. H2O, N2, O2, CO, CO2, Cl2, SO2, SO3, NO and NO2 are the primary by-products of coal combustion.
The combustion chamber products (COMB-PRD) were used to heat water (modelled using two heaters- HEATERS 1 and 2) in order to produce steam at a pressure of 124.61bar and a temperature of 537.78oC, which were the inlet stream conditions for a 120MW thermal power plant with a correction factor of 1 [16]. The amount of feed water that will be fed into the unit is 6679kg/h, according to the Water Design specification.
The ash and flue gas are separated in the solid’s separation block (S-SEP) after passing through the heat block (Heater-1). The separation block (GAS-SEP) recycles flue gas in order to complete the process of pulverized coal combustion in an O2 and CO2 atmosphere. A Heater Block (Heater 3) lowers the temperature of the Exit Gas as it exits the Gas Separator (GAS-SEP).
2.3. Stream Data
The simulation is carried out to meet the inlet stream conditions (temperature and pressure) of a 120MW CFPP unit by Geete and Khandwawala [16]. The coal sample used for the simulation in this study was bituminous coal. The results of the proximate, ultimate and sulphur analysis are as given in Table 1.
The mass flow rate of coal feed used for the study was 1000 kg/h [13] while the mass of theoretical air per mass of bituminous coal basis is 9.07kg/kg. The theoretical amount of oxygen consumed during the combustion was calculated based on this value. Assuming an excess air of 10%. The mass of the dry coal that entered the combustion chamber (IN-COMB) was 909.1kg/h, hence the amount of supplied air for combustion was 9070kg/h (mass flowrate of BRN-AIR in air combustion (Figure 2). The amount of oxygen supplied was 2104.25kg/h which is the flowrate of Oxygen in COMB-AIR for oxy-fuel combustion with 80% recycle. The recycled gas (GAS-REC) consists of CO2 (80% was recycled back to the Combustion Chamber) and O2 (all the oxygen was recycled back). From the calculated results of oxygen design specification, the mass flow rate of oxygen in stream AIR-2 is 1797.95kg/h

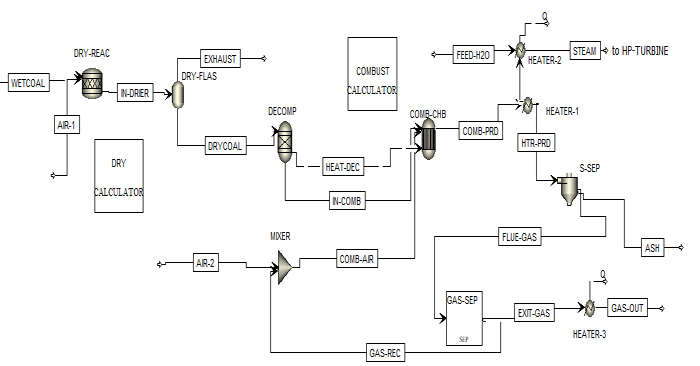

Figure-1. The flow sheet of Oxy-Fuel Coal Combustion.

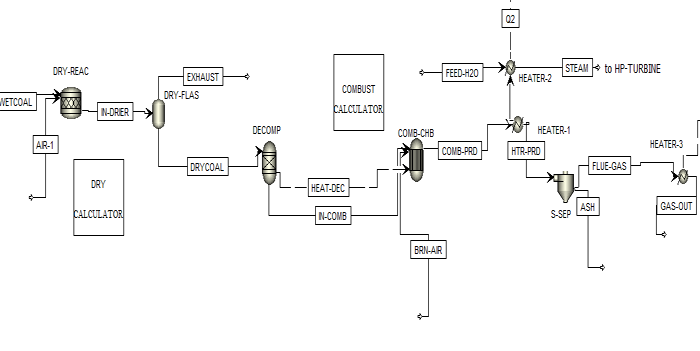

Figure-2. The flow sheet of Coal Combustion using Air.
Table-1. Ultimate, Proximate and Sulphur Analysis of Bituminous coal.
Ultimate Analysis (%) |
|
Moisture |
10 |
Ash |
9.2 |
Volatile Matter |
45.7 |
Fixed Carbon |
45.1 |
Proximate Analysis(%) |
|
Carbon |
67.1 |
Hydrogen |
4.8 |
Nitrogen |
1.1 |
Sulphur |
1.3 |
Chlorine |
0.1 |
Oxygen |
16.4 |
Sulphur Analysis(%) |
|
Pyritic |
0.6 |
Sulfate |
0.1 |
Organic |
0.6 |
Table-2. Stream Data for air combustion and oxy-fuel combustion.
Wetcoal |
AIR-1 |
AIR-2 |
FEED-H2O |
BRN-AIR |
|
Temperature(OC) |
25 |
300 |
25 |
25 |
25 |
Pressure (atm) |
1 |
1 |
1 |
1 |
1 |
Mass Flowrate(kg/h) |
1000 |
5000 |
1797.95 |
6679 |
9070 |
Component(mole fraction) |
- |
21%O2 +79% N2 |
100% O2 |
100% H2O |
21%O2 +79% N2 |
Table-3. Process models used in various parts of the Oxy-Fuel Combustion in ASPEN Plus.
Name |
Model |
Function |
DRY-REAC |
RStoic |
Coal Drying |
DECOMP |
RYIELD |
Coal Decomposition |
COMB CHB |
RGIBBS |
Coal Combustion |
S-SEP |
CYCLONE |
Solid Separator |
HEATER-1 |
HEATER |
Cooling of Combustion products (COMB PRD) from COMB CHB |
HEATER-2 |
HEATER |
Heating of Feed H2O to produce STEAM |
HEATER-3 |
HEATER |
Cooling of EXIT-GAS |
GAS-SEP |
SSPLIT |
Separating a portion of the FLUE-GAS consisting of mainly CO2 and O2 for recycle |
Table-4. Simulation Results of the Oxy-Fuel Combustion with a recycle of 80% CO2 in ASPEN Plus.
AIR-2 |
COMB-AIR |
COMB-PRD |
EXIT-GAS |
FLUE-GAS |
GAS-OUT |
GAS-REC |
HTR-PRD |
STEAM |
|
Temp(oC) |
25 |
104.252 |
1679 |
120 |
120 |
30 |
120 |
120 |
537.78 |
Press(atm) |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
124.61 |
Component |
Mass Flowrate(kg/h) |
||||||||
H2O |
0.00 |
0.00 |
395.16 |
395.16 |
395.16 |
395.16 |
0.00 |
395.16 |
6679 |
N2 |
0.00 |
0.00 |
9.46 |
9.46 |
9.46 |
9.46 |
0.00 |
9.46 |
0.00 |
O2 |
1797.95 |
2104.25 |
306.30 |
0.00 |
306.30 |
0.00 |
306.30 |
306.30 |
0.00 |
C |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
H2 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
S |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
Cl2 |
0.00 |
0.00 |
0.90 |
0.90 |
0.90 |
0.90 |
0.00 |
0.90 |
0.00 |
SO2 |
0.00 |
0.00 |
23.35 |
23.35 |
23.35 |
23.35 |
0.00 |
23.35 |
0.00 |
SO3 |
0.00 |
0.00 |
0.035 |
0.035 |
0.035 |
0.035 |
0 |
0.035 |
0 |
CO2 |
0.00 |
8649.60 |
10811.9 |
2162.37 |
10811.9 |
2162.37 |
8649.60 |
10811.9 |
0.00 |
CO |
0.00 |
0.00 |
32.14 |
32.14 |
32.14 |
32.14 |
0.00 |
32.14 |
0.00 |
NO |
0.00 |
0.00 |
0.94 |
0.94 |
0.94 |
0.94 |
0.00 |
0.94 |
0.00 |
NO2 |
0.00 |
0.00 |
0.001 |
0.001 |
0.001 |
0.001 |
0.00 |
0.001 |
0.00 |
Total Mass Flow(kg/hr) |
1797.95 |
10753.85 |
11579.29 |
2624.26 |
11579.29 |
2624.26 |
8955.90 |
11579.29 |
6679 |
Table-5. Composition of Outlet flue gas under Air combustion and Oxy-fuel combustion with different Recycle percentages.
Air |
20% CO2 Recycle |
40% CO2 Recycle |
60% CO2 Recycle |
80% CO2 Recycle |
|
Flame Temperature |
1894oC |
3075 oC |
2923 oC |
2630 oC |
1679 oC |
H2O |
395.1556 |
395.1556 |
395.1556 |
395.1556 |
395.1556 |
N2 |
6946.883 |
4.429034 |
5.023538 |
6.307769 |
9.459961 |
SO2 |
23.36135 |
23.36812 |
23.36729 |
23.36548 |
23.3478 |
CO2 |
2151.839 |
800.0751 |
1167.934 |
2379.781 |
10811.9 |
CO |
38.77668 |
1000.96 |
962.3332 |
802.3997 |
32.12072 |
NO |
43.81134 |
11.71529 |
10.44194 |
7.691676 |
0.942013 |
NO2 |
0.030096 |
0.00762 |
0.007246 |
0.005875 |
0.001023 |
SO3 |
0.017657 |
0.009203 |
0.010242 |
0.0125 |
0.03459 |
Cl2 |
0.9000 |
0.9000 |
0.9000 |
0.9000 |
0.9000 |
The simulation results are presented in Table 4. The major component of the stream FLUE-GAS was CO2 with the highest mass flowrate of 10811.90kg/h followed by H2O with 395.16kg/h then O2 with 306.30kg/h. Other components in the FLUE-GAS are low in values.
3.1. Comparison of Different Recycle Ratios in Oxy-Fuel Combustion
The combustion of pulverized coal under atmospheric condition is shown in Figure 2. The major component of the combustion products of coal using air as the oxidant is N2.
Oxy-fuel combustion involved combustion in the presence of O2/CO2. The study was carried out with different recycle percentages of CO2 back to the combustion chamber (20%, 40%, 60% and 80%).
The flame temperature for the oxy-fuel combustion with recycle percentages of 20%,40%, 60% and 80% are given as 3075oC, 2923 oC, 2630 oC and 1679 oC respectively. Firing coal with pure oxygen will result in a tremendously high flame temperature which is very dangerous, so the recycled CO2 acts as a dilutant (the same function of N2 in the case of air combustion) and helps to reduce the flame temperature. The CO2 absorbs some of the heat produced during the combustion process such that the higher the amount of CO2 that is present during the combustion, the lesser the flame temperature. The implication of this act is that there is reduction in the concentration of CO2 present in the gaseous mixture of O2/CO2 sent to the combustion chamber. This invariably increases the O2 concentration and thus causes an increase in the flame temperature (since less heat is absorbed due to reduced CO2).
During the combustion process, CO and NOx are some of the major pollutants that are produced. NOx is one of the primary pollutants emitted into the atmosphere. NOx reacts with atmospheric precipitation to form acid rain, while CO reacts with the hemoglobin in the blood, thereby reducing the amount of oxygen transported in the body. From the results, the mass flowrates of NOx and CO was lowest in oxy-fuel combustion with recycle of 80%, the mass flowrate of NOx was very low (0.943kg/h) when compared to oxy-fuel combustion with recycle of 20% CO2 (11.722kg/h). The results shows that the higher the amount of CO2 recycled, the lower the NOx present in the flue gas. This is due to the fact that some of the recycled CO2 is reduced to CO by red hot coal which then reduces the NOx to N2
As can be seen in Table 5, the mass flowrates of carbon monoxide in the oxy-fuel combustion with recycle percentages of 20%, 40%, 60% and 80% are 1000.96kg/h, 962.332kg/h, 802.4kg/h and 32.12kg/h respectively. This again shows that the higher the amount of CO2 recycled back into the O2/CO2mixture, the lower the amount of CO that is present in the flue gas, the difference in the amount of CO emitted between recycles of 20% and 80% is actually quite significant . This can be attributed to the fact that some of the CO2 that is recycled into the combustion chamber is reduced to CO by hot coal. CO is a good reducing agent and reduces the NOx that are formed after the combustion process to N2 while the CO itself is oxidized back to CO2 hence the concentrations of NOx and CO decreases while that of CO2 increases
3.2. Oxy-Fuel Combustion vs Air Combustion
The flame temperature of the air combustion and oxy-fuel combustion with 80% recycled CO2 was compared and the result shows that the flame temperature using air was higher (1894 oC) than that of oxy-fuel combustion with 80% recycled CO2 (1679 oC). This can be traced to the heat capacities of both N2 and CO2. CO2 has a higher heat capacity meaning it takes more heat to increase its temperature, hence if both N2 and CO2were subjected to the same amount of heat, N2 will have a higher temperature. From the results in Table 5, it can be seen that the flowrate of NOx was highest in the air combustion (43.841kg/h) compared to oxy-fuel combustion, in fact the decrease of NOx was very tremendous in oxy-fuel combustion with recycle of 80% (0.943kg/h) which means that the formation of NOx is restrained effectively by oxyfuel combustion. In atmospheric (air) combustion, the N2 is from the coal and also from the air but in oxy-fuel combustion, the N2 is only present in the coal and the NOx formed during oxyfuel combustion is reduced to molecular nitrogen, N2. This results corroborates the report by Odeh [17]; Odeh [18] that worked on pyrolysis of six demineralized coals of different ranks.
The mass flowrate of SOx (both SO2 and SO3) was quite constant for the two types of combustion process 23.376kg/hr, for air combustion and 23.382kg/hr for oxyfuel combustion with 80% recycle.
3.3. Sensitivity Analysis
Figures 3 – 5 presents effects of temperature on the formation of the oxides of carbon, nitrogen and Sulphur. The increase of temperature causes the amounts of NO, SO2 and CO to increase, whereas the amounts of N2, SO3 and CO2 decreases. The mass flow rate of NO is affected by temperature, increasing from 0.0477 kg/h to 2.3706kg/h in the temperature range of 1000 oC to 2000 oC, which corresponds to a decrease in the mass flow rate of N2 from 9.878kg/hr. to 8.793 kg/h. This shows that the formation of NOx is favored at high temperatures.
The mass flow rate of SO2 increases from 22.783kg/hr to 23.360kg/hr when the temperature is increased from 1000 oC to 2000 oC also the amount of CO2 decreases from 11063.8kg/h to 9145.9kg/h and the CO increases from 0.0034kg/h to 244.131kg/h. When the temperature is between 1500 oC to 1750 oC, the mass flow rate of CO increased a bit faster and at temperatures above 1750 oC, the increase was very rapid. The mass flow rate CO2 decreased spontaneously because CO2 is reduced by coal to generate CO at high temperatures.
The influence of the excess oxygen in the range of 10% - 30% on the flue gas composition is shown in Figures 6 to Figure 8. These figures indicates that the generation of NOx, SO3 and CO2 is enhanced by increasing the excess oxygen ratio and the amounts were increased by 0.298, 0.0221 and 128.7kg/h respectively when the excess oxygen is increased from 10% to 30%. The generation of N2, SO2 and CO was suppressed and the amounts were decreased by 0.14, 0.02 and 16.52kg/h respectively. This can be attributed to the fact that at high oxygen concentration (excess oxygen), N2, CO, SO2 is oxidized to their higher oxides i.e., NO, CO2 and SO3 respectively.
3.4. Steam Output and Thermal Efficiency
The main aim of the study was to stimulate a 120MW oxyfuel combustion (with 80% recycle) for a coal fired power plant . The inlet steam conditions were 124.61 bar and 537.78oC [16]. The heat that was produced from the combustion process was used to raise the temperature of feed water at 25oC to pressurized steam. From Design specification, it was seen that 6697kg/h of steam at 124.61bar and 537.78oC could be produced (provided no energy was wasted).

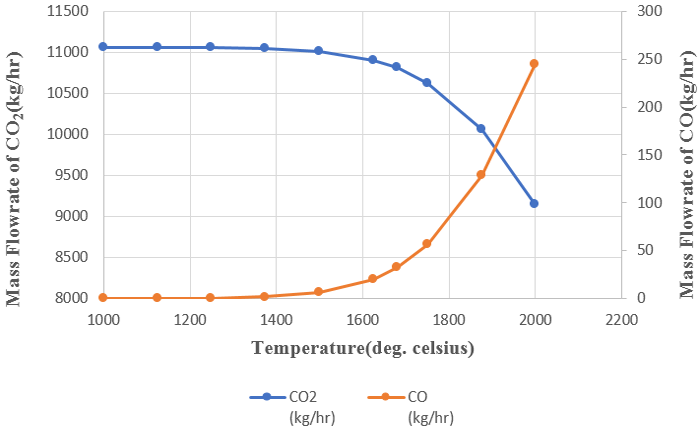

Figure-3. Effect of temperature on CO and CO2 Formation.

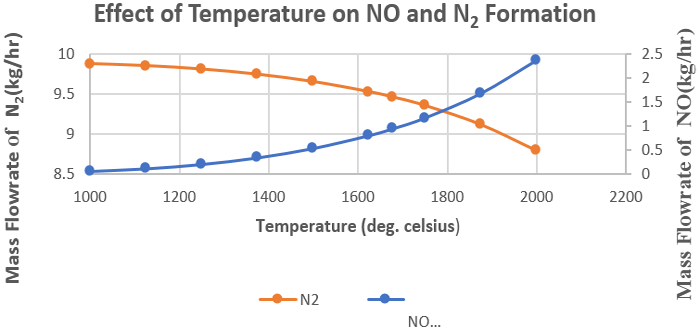

Figure-4. Effect of Temperature on NO and N2 Formation.

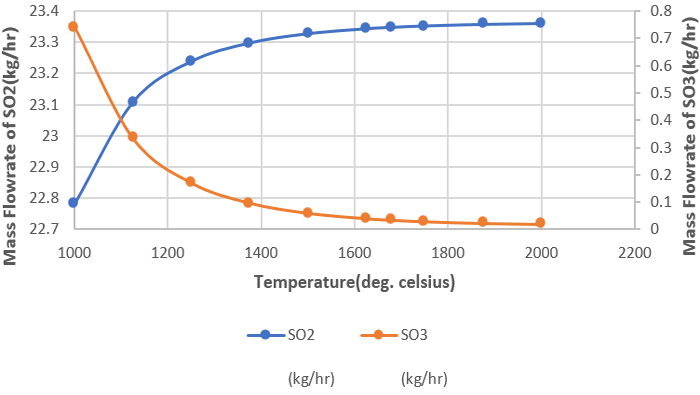

Figure-5. Effect of Temperature on SO2 and SO3 Formation.

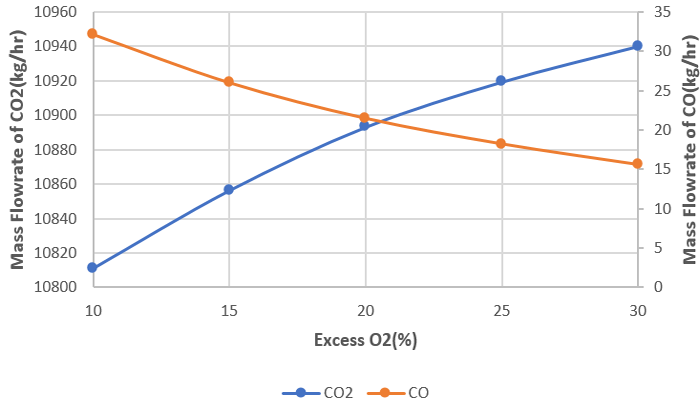

Figure-6. Effect of Excess O2 (%) on CO2 and CO Formation.

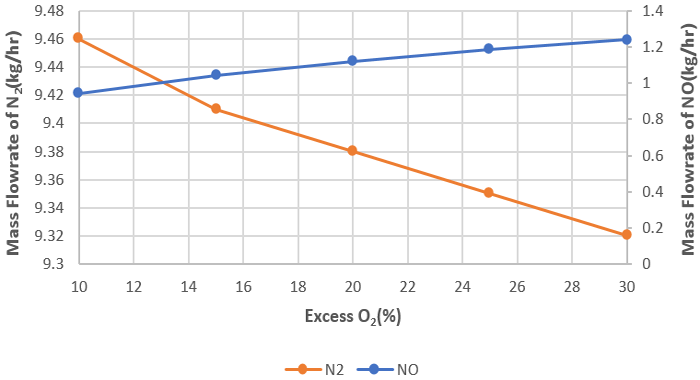

Figure-7. Effect of Excess O2 (%) on N2 and NO Formation.

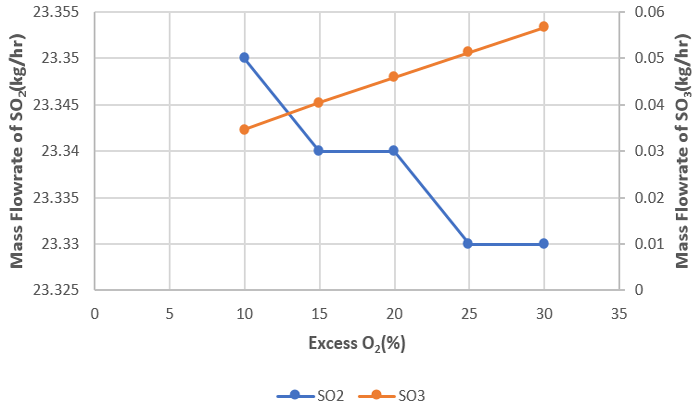

Figure-8. Effect of Excess O2 on SO2 and SO3 Formation.
The thermal efficiency of a boiler can be calculated by the direct method (input-output method) or otherwise known as fuel-to-steam efficiency and it is given by:
Q = Quantity of Steam generated = 6679kg/h
H2= Enthalpy of steam at boiler output.
From steam tables, at 124.61ba r and 537.78oC, H2= 3442.96kJ/kg
H1= Enthalpy of feed water
From steam tables, at 1.01235bar and 25oC, H1 = 104.8kJ/kg
q= Fuel Quantity = 1000kg/h
GCV= Gross Calorific Value
GCV can be estimated using Dulong’s formula:
From the Proximate Analysis(%) in Table 1,
C = 67.1%, H = 4.8%, S = 1.3%, O = 16.4%
Thus, the thermal efficiency for the process was determined to be approximately 84%.
The usage of fossil fuel, most especially coal for energy generation comes with its attendant mitigation and litigation due to the emission of pollutant gases that has adverse effects on the environment. Several clean coal technologies has been proposed by researchers over the years, of which oxy-fuel coal combustion is one. Oxy-fuel Combustion is a technology with the potential of drastically reducing the amount of CO2 emission, it relies on the use of oxygen and recycled CO2 instead of air as the oxidant. This helps to reduce the amount of the CO2 and NOx emissions. Hence, in this study, the design focused on the components of flue gas produced and their amounts for oxy-fuel combustion in a coal-fired power plant (CFPP) using Aspen plus 11. The boiler efficiency using the direct (input-output) method was also applied and calculated.
The amount of each component in flue gas in coal-fired processes with air or O2/ CO2 (using recycle of 20%, 40%, 60% and 80% of CO2) as oxidizer was obtained. From the process simulation, as the recycle % of CO2 was increased, the flame temperature, CO and NOx emissions were reduced. The simulation results of air combustion were compared with that of oxy-fuel combustion with 80% recycle. The comparison indicated a drop in the flame temperature from 1894oC when air was used as oxidizer to 1679oC for oxy-fuel combustion with 80% recycle. There was also a reduction in the amount of NOx produced. However, the SOx levels were constant for both combustion processes. The Gross Calorific Value (GCV) of the coal was calculated from its proximate analysis using Dulong’s formula and it was used to estimate the Boiler Efficiency using the Direct (Input-Output) method and a value of 83.6% was obtained. Although, oxy-fuel combustion technique has been investigated in the past by other investigators, the approach used in this study and the selectivity analysis using different operating parameters and conditions to get a boiler efficiency of 84 % is novel to the best of knowledge of the authors. The technique implored in this study may be explored by energy key players in the combustion of coal for energy derivation.
Funding: This study received no specific financial support. |
Competing Interests: The authors declare that they have no competing interests. |
Acknowledgement: All authors contributed equally to the conception and design of the study. |
