Index

1. INTRODUCTION

The problem of food insecurity arises with acuity in Sub-Saharan Africa (Fao/Stat, 2013). This situation is maintained by the lower continual productivity of major crops including maize (Zea mays L.), due among other things to the soil impoverishment (Azontondé et al., 2009).

In Benin, maize occupies an important place in agricultural production systems in all agro-ecological areas of the country (Adjanohoun et al., 2012). Unfortunately, some producers continue to have lower seeds yields (0.5 t/ha) against potential yields in research station from 3 to 5 t/ha (Azontondé et al., 2010). Thus, to increase maize grain yield, beninese farmers use mineral fertilizers. These inputs are a problem for the farmers because of their relatively high costs and not always available, for the environment and the health of populations through the pollution of water courses and products of harvest by the heavy metals they contain. Thus, for efficient agriculture, sustainable and respectful of the environment, scientists advocate wholesome ecologically practices such as the use of bio-resources like mycorrhizal fungi.

Indeed, these mycorrhizal fungi are microorganisms that live in obligatory symbiosis with over 200,000 cultivated and uncultivated crops (Oehl and Sieverding, 2004; Smith and Read, 2008). These symbiotic fungi are considered as a microbial group 'keys' in the functioning of terrestrial ecosystems in particular for their capacity to promote the development of plants in degraded areas. Within this group of fungi are those referred to as Arbusculars Mycorrhizal Fungi (AMF). The plant provides to AMF the sugars (hexoses) (Read and Perez-Moreno, 2003) and in return the AMF are very vital for the absorption of phosphorus (P) by the plant, mainly in tropical areas where the P-assimilable is often limiting (Matos et al., 1999). The AMF facilitate feeding of the plant mineral elements (Fortin et al., 2008) and water (Grümberg et al., 2010). In addition, they are involved in the tolerance of plants to biotic (Whipps, 2004) and abiotic (Tao and Zhiwei, 2005) stresses. Some previous work such as Leye et al. (2009) in Senegal and Tchabi et al. (2008) in Benin showed a significant improvement in the growth of mycorrhizal plants.

Given the importance that are mycorrhizal fungi and in order to improve maize productivity while reducing the use of fertilizers, the present study aims to assess the effect of three arbuscular mycorrhizal fungi (Glomus cubens, Rhizophagus intraradices, Funneliformis mosseae) on the growth and yield of maize on ferruginous soil in center of Benin.

2. MATERIAL AND METHODS

The maize variety used was EVDT 97 STR C1. It is an early variety of 90 days. It has a good resistance to american rust, the stripe, and drought (Yallou et al., 2010). It was provided by National Institute of Agricultural Research of Benin (INRAB).

The three mycorrhizal fungi (Rhizophagus intraradices, Glomus cubense and Funneliformis mosseae) used in this study were obtained from partners of laboratory of Mycorrhizae of Instituto Nacional de Ciencias Agricolas (INCA) of Cuba (Latin America).

2.1. Geographical Location of Experimental Site

The trial has been installed on the experimental station of Agricultural Research Center of Save (CRA-Centre) of Beninese National Institute of agricultural research (INRAB). It is located in the commune of “Gobé” at an altitude of 105.1 m, longitude 8 ° 00' 149 "North, latitude 2 ° 25'646" East (Figure 1). This site is characterized by a subequatorial climate with two rainy seasons and two dry seasons. The average annual pluviometry is 1,100 mm (Capo-Chichi, 2006).

2.2. Experimental Design

The experimental design was a block completely randomized of 9 treatments with 4 repetitions. Each basic plot (12.8 m²) consists of 4 lines of 4 m long and the distance between the lines is 0.80 m. spacing of seedlings was 0.80 m x 0.40 m or a density of 31.250 plants/ha after the divorce (Hernandez et al., 1995). The distances between basic plots and between rehearsals were respectively 1.8 m and 2 m. The useful parcel of 6.4 m2 was represented by the 2 central lines on which the data were collected. The different treatments applied were: T1 = Control (without inoculation and mineral fertilizers); T2 = Glomus cubens; T3 = Rhizophagus intraradices; T4 = Funneliformis mosseae; T5 = 50% N15P15K15 recommended; T6 = Glomus cubens + 50% N15P15K15; T7 = Rhizophagus intraradices + 50% N15P15K15; T8 = Funneliformis mosseae + 50% N15P15K1 5 ; T9 = 100% N15P15K15.

Mineral fertilizer dose recommended by INRAB (1995) is 200 kg/ha of NPK to sowing and 100 kg/ha of urea 45 days after sowing N15P15K15 indicates the proportion of N, P and K in 100 kg of NPK fertilizer.

2.3. Determination of the Chemical Characteristics of Station Soil

Station soil samples (500 g) were taken at the beginning of experimentation at a depth of 0-20 cm and placed in a sterile plastic bag, labeled and transported to the laboratory for determination of their chemical properties. The soil pH was measured by electrometric method using a pH meter. The organic matter was determined by the Walkley and Black (1934). The exchangeable cations were determined by ammonium acetate method described by Thomas (1982) and assimilable phosphorus by color method of Metson (1956) at 660 nm The cationic exchange capacity was evaluated by the method described by Ramón et al. (2003).

2.4. AMF Inoculation of Maize Seeds

The inoculation of maize seeds with three fungi (G. cubense, R. intraradices and F. mosseae) was made on the eve of seedling according to the method described byFernández et al. (2000). Indeed, every fungi spore has trapped in a sandy support to formulate the fertilizer product (inoculum) at a concentration of 20 spores/ gram of soil. The maize seeds were mixed with inoculum at ratio of 10:1 for each type of fungi. Each mixture was again mixed with 600 ml.kg-1 of fertilizer. Thus, coated seeds have been air dried for 12 hours according to the recommendations published by Ruget and Chartier (1996).

 2.5. Sowing and Maintenance of Plants

Two maize seeds inoculated or not have put in a seed hole about 5 cm of depth and the hole was immediately closed. Three Weeding  were made, the first was coupled thinned to one plant per hole two weeks after sowing, the less vigorous plant was torn, the second and third times has been made respectively six weeks and eight weeks after sowing.

2.6. Collection of Growth Data

To assess the effect of different treatments on growth of maize plants, some growth parameters were measured. It's the height, diameter at the collar and leaf area of plants. The height and the diameter were then measured respectively through a ruler tape and the caliper 15th, 30th, 45th and 60th Days After Sowing (DAS). The leaf area of plants was estimated at 60th JAS by the product of length and width of leaves affected by coefficient 0.75 (Valdés et al., 2013).

2.7. Collection of Yield Data Biomass Produced (Fresh and Dry)

After grains harvest (95th DAS), maize plants were cut at ground to constitute fresh biomass. The underground part (essentially the roots) represents the fresh biomass. Different biomass was weighed using a precision scale (Highland HCB 3001, max: 3000 g x 0,1 g). To determine the dry biomass, 1 kg of fresh biomass was steamed at 100 °C for 72 hours and weighed to determine the weight of dry biomass. Yields average fresh biomass and dry maize plants have been determined according to the formula:

• R' = average yield in dry biomass of plants of maize in t.ha-1
• P' = weight in dry biomass of maize plants in kg
• S = area of crop in m²

2.8. Determination of Maize Grain Yield

After harvest,   the maize cobs were shelled and weighed according each treatment using a precision scale. The moisture percentage of the grain was determined using a moisture meter (LDS - 1F). The values of average seeds yield were determined by following formula (Kjeldahl, 1883):

• R = is maize yield, expressed in t/ha ,
• P is the weight of maize seeds per field pot expressed in kg
• 10000 is the conversion of ha in m2 ; 1000 is the conversion of  t in kg
• S = is the field pot area expressed in m²; % H = humidity of the grain in %.

2.9. Assessment of Nutritional Status of Maize Plants

The assessment of nutritional status of maize plants consisted in the determination of nitrogen (N), phosphorus (P) and potassium (K) contents. Indeed, after mineralization of plant material (whole maize plant) and their distillation by the Bray and Kurtz (1945) the nitrogen content was determined by titration, the phosphorus by Metson (1956) and potassium by atomic absorption spectrophotometer (Thomas, 1982).

2.10. Assessment of Endomycorrhizal Infection of the Plants

The roots of maize plants were taken at 68th DAS. After coloring with blue trypan according to the method described by Phillips and Hayman (1970) arbuscular mycorrhizal fungi associated with roots of maize plants were observed through binocular microscope (XSP-BM-2CEA). The estimation of roots mycorrhizal infection was performed according to intersection method (Giovannetti and Mosse, 1980; Trouvelot et al., 1986). The mycorrhization rates was estimated by two parameters of arbuscular mycorrhizal infections arbuscular namely:
-The frequency of mycorrhization (F) which reflects the infection degree of the root:

F (%) =

Where: N is the number of fragments observed and no the number of fragments no mycorrhization

• The intensity of mycorrhization: m  expresses the portion of  root colonized over the entire root system:

In this formula, n5, n4, n3, n2 and  n1  represent respectively the numbers of fragments scored in the five classes of infection, marking the importance of the mycorrhization namely: 5 = more than 95%, 4 = 1% of the cortex, 50 to 95%, 3 = 30 to 50%, 2 = 1 to 30%.

2.11. Statistical Analysis

The influence of treatments on growth, yield and mycorrhizal parameters, and nutritional status of plants compared to control was examined using analysis of variance model based to two factors (Block and treatment). Then the Dunnett test was used to assess the relative performance of each treatment compared to controls.

The determination of the best’s treatment between them was made using an analysis of variance model based to two factors (Block and treatment). Then the Student Newman and Keuls test was used to assess the relative performance of treatment between them using the R

The influence of the AMF on the mycorrhization parameters was analyzed with a fixed pattern of analysis of variance followed by the test of Student Newman and Keuls for the structuring of the treatments.
A categorization and discrimination of treatment was made with hierarchical digital classification followed by Analysis in Principal Component (ACP) with the HPC function using the R software 3.3.2 with Facto Mine R package.

3. RESULTS

3.1. Chemical Characteristics of the Experimental Soil

The assessment of the chemical characteristics of experimental soil in the 0-20 cm horizon revealed that the rate of organic matter is low (1.16%), as well as nitrogen (0,076%). Soils are poor in phosphorus (5 ppm) and potassium (0.16 meq / 100g). The sum and the saturation of bases and the cationic exchange capacity are low, but the rate of the base saturation is average. The ground proved slightly acid (pH 6.5) (Table 1).

3.2. Influence of AMF on Maize Plants Growth

The results of mixed model variance based two factors (Block and treatments) revealed a highly significant difference (p < 0.01) between treatments for following parameters height, diameter and leaf area of maize plants.

The treatments explained at 69.62% the variability of heights, 46.80% the variability of diameter and 60.83% the variability of leaf area. The Dunnett test results showed that only the plants treated with combinations of G. cubens and 50% NPK; R. intraradices and50% NPK; F. mosseae and 50% NPK and 100% NPK were different from the control with greater height (Table 2). It is the same for leaf area and those for plants treated with combinations of R. intraradices and50% N15P15K15; F. mosseae and50% NPK and 100% NPK. A negative and significant difference was noted for the diameter and only for processing F. mosseae. The values of height, diameter and leaf area per maize plant obtained according to different treatments are presented in Table 3. It shows that the plants inoculated with the combination of R. intraradices with50% NPK had the most important heights and leaf area (141.02 cm and 390.74 cm2). They are followed by the plants inoculated by combination of G. cubens and50% NPK(140.61 cm for the height) and 100% NPK(368.94 cm2 for leaf area). For diameter, the best performance was observed with plants inoculated with the combination of G. cubens and50% NPK(15.24 mm). The results of the variance analysis indicated overall a difference very highly significant (p < 0.001) between all treatments for all growth parameters (table 3).

3.3. Influence of AMF Treatments on Yield Parameters

The analysis of treatment on yields parameters revealed overall a difference very highly significant (P < 0.001)  for biomass of plants treated compared to the control plant (Table 4). The result of Dunnett structuring test revealed that treatment R. intraradices, F.mosseae, 50% NPK and F. mosseae + 50% NPK are not significantly different  compared to control for dry aerial biomass. As for dry underground biomass, G. cubens, R. intraradices, F.mosseaeand 50% NPK are not too different  compared to control and only plants treated with R. intraradices do not differ  compared to control for fresh biomass underground (P > 0.05). A significant difference was noted for the combinations of G. cubens and50% NPK and R. intraradices and50% NPK for fresh  area biomass and only for the treatment R. intraradices + 50% NPK for the performance. The variability induced by treatment are very high for all parameters of biomass yield (R2 > 50%) except for grain yield that is relatively average.

The biomasses of maize plants obtained varied significantly according to treatments.  We noted a very highly significant difference (P < 0.001) between the treatments for all yield parameters (Table 5). Plants treated with 100% NPK had a higher fresh aerial biomass production (5.76 g) followed by plants inoculated by R. intraradices + 50% NPK (5.22 g) whereas control plants had average value of 3.57 g (Table 5). Similarly, 100% of NPK induced the highest fresh underground biomass production (0.58 g) followed by G. cubens + 50% NPK (0.49 g) compared to the control plants (0.26 g).
For the production of dry biomass, plants treated with combination of G. cubensand 50% NPK had the highest dry aerial biomass (1.86 g) followed by those treated with combination of R. intraradicesand 50% NPK (1.85 g). These plants showed increases in aerial and underground dry biomass respectively from 32.86% and 94.73% r compared to control plants. The lower values was observed with F. mosseae (1.39 g) followed by control treatment.

Similarly, the stronger aerial and underground dry biomass were obtained by plants inoculated by combinations of G. cubens and 50% NPK followed by plants inoculated by R. intraradices and 50% NPK. These  treatments induced increases respectively around 32.86% and 32.14% compared to control for the dry aerial biomass and respectively from 94.73%, 63.16% for dry underground biomass.
For maize seeds yield, the highest values were obtained with plants treated with combination A. intraradices and 50% NPK (3.26 t/ha) with an increase of 38.14% compared to control plants. The weaker performance was observed with the plants treated with F. mosseae and the control plants.

3.4. Effect of CMA on Mycorrhization Parameters

The results of analysis of variance (Table 6) indicated that the differences in effect induced by the treatments on mycorrhization parameters is very highly significant (p < 0.001). Plants treated with G. cubenspresents the best values of frequency (41.25%), intensity (6.07%) and the number of spores/g of soil (1.81).  The highest intensities of infection were induced by all treatments constituted by only AMF It’s G. cubens (6.05%), R. intraradices (4.75%) and F. mosseae (3.39%) Same observations was made for frequency of infection (41.25%. 27.50% and 26.25%). In addition, the highest number of spores has been registered in the soil treated with G. cubens (1.81) while the lowest number of spores was recorded with F. mosseae + 50% NPK (0.64/g).

3.5. Effects of Mycorrhizal Fungi on Nutritional Status of Maize Plant

The results of the mixed model variance based on two factors (block and treatments) revealed generally that no significant difference between N, P and K contents for all treatments (p > 0.05). The different values of these macronutrients (nitrogen, phosphorus and potassium) in maize plants are presented in table 7. Nitrogen (number) is weak and almost identical for all treatments. All inoculated plants have experienced improvements in their content of phosphorus and potassium. Indeed, plants which received only the contribution of G. cubens, R. intraradices and F. mosseae respectively present increases of 38%; 43% and 46% for phosphorus (P) and 46%; 44% and 51% for potassium (K) compared to the absolute control. Combined with 50% NPK, these same strains show respective increases of 11%; 10% and 37% for phosphorus (P) and 15%; 38% and 58% for potassium (K) compared to the absolute control. Thus the value the highest phosphorus was obtained with F. mosseae while that potassium was obtained with the combination of F. mosseae + 50% of NPK.

3.6. Categorization and Discrimination of Treatment by the Most Discriminating Characteristics

The categorization of various treatments according to growth, yield and nutritional parameters of the plants using the hierarchical classification followed by analysis in principal component (APC) has revealed four treatment groups. The first group (cluster 1) constituted of F. mosseaeand R. intraradices treatment characterized only by high phosphorus content induction  as opposed to cluster 4composed of R. intraradices + 50% NPK, 100% NPK and G. cubens + 50% NPK that induce higher growth with high yields and other production’s parameters very high and a high  content in nitrogen (N) (Figure 2). The Cluster 2 is constituted of control treatment and 50% NPK which produce high value of the nutritional status of plants in nitrogen and phosphorus with large diameter and opposes to the Group 3 composed of treatment F.mosseae +50% NPK and G. cubenswhich gives very high plants, large leaf area with a very high nutritional status in potassium (K). It is also from the analysis of figure 1 that the elevation of nitrogen in plants treated with the treatment of Group 4 causes growth in diameter at the collar and in height very high which in turn ensures a good production of plants with high yields. Any elevation of phosphorus slows growth and led to lower production.

4. DISCUSSION

On top of the light and CO2, the plants need nutrients, oxygen and water for good growth. Nutrients can be found in the ground and in the air. A deficiency or an excess of nutrients can cause various problems of the plants. Unfortunately, the results of chemical analysis of experimental soil (Table 1) reveal that the soil had a low fertility and the maize plants cultivated in this soil had poor nitrogen, phosphorus and potassium content. the  In addition, the highly acidity of experimental soil would justify the ameliorative effect of arbuscular mycorrhizal fungi on development of maize plants on ferruginous soil in center of Benin especially with G. cubens because this specie impacted positively the plants growth with acid pH (Wang et al., 1993). This deficiency of phosphorus could be explained this significant effect of fungi on the leaf area and dry biomass of plants. The combination of G. cubens with 50% of NPK led to improve aerial (32.86%) and underground dry biomass (94.73%) production (Table 5). Indeed, the study of Gabriel and Cristina (Gabriel and Cristina, 2007) in Colombia revealed that inoculation of different arbuscular mycorrhizal fungi is effective on maize plants growth, particularly on the increase in dry matter and leaf area in soils lower in phosphorus. In our study, the AMF promoting effect is better when they combinedwith 50% of NPK resulting in increase of height (17.44%) and leaf area (45.99%) of maize plants compared to the control plants (Table 3). In addition, the diameter (15.24 mm) obtained with the plants treated with combination of G. cubens and 50% NPK surpassing of 6.50% the value of the control plants. Notice that the best parameters of growth have been achieved at the level of the plants inoculated and treated with a half dose of NPK in comparison to the non-inoculated maize plants. (Table 3). Jansa et al; Tchabi et al; Schoebitz Cid; Hamza and HAFSI (Jansa et al., 2005; Schoebitz, 2010; Tchabi et al., 2010; Hamza and Hafsi, 2014) attributed this beneficial effect of CMAs on plant growth to greater absorption of nutrients (N, P, K, Fe, Zn, Mn and Cu) by the plants. In addition to the plant acquisition systems of nutrients through epidermis and root hairs absorbent, CMAs are considered as 'additional organs' absorption of the nutrients in most vascular plants (Smith et al., 2009). Indeed once associated with the host plant, fungi form a root extra Mycelial network which is an extension of root system and allows to uptake of nutrients in a volume of soil that explored by the only roots. The fungus also provides water to the plant. Note that the plants inoculated with AMFs are better ability to uptake water than the no inoculated plants, whether in water or no deficiency conditions (Bárzana et al., 2012). The arbusculaires AMFs-plants symbiosis are reciprocal benefits to plants and AMFs, because the fungi get photosynthesis of carbon that the plants provide to fungi hexoses and which can constitute up to 20% of carbon fixed by the plants during photosynthesis (Smith and Read, 2008).

In our study, the best maize grain yield was obtained with plants treated by the combination of R. intraradices with 50% NPK. This treatment induced an increase of grains yield of 38.14% compared to control plants. Noticed that the increase of grain yield is 7.20% when R. intraradices is not combined with NPK. On one hand, this result shows that these AMFs have promoting effect on maize seeds yield, and their combination with 50% of NPK allows to perform better. These results are close to those reported by Hamza and Hafsi (2014) in Algeria who have shown that yield is higher when we combine the inoculum “symbivit” to 50% of synthesis fertilizer.

However, there was a very highly significant difference (P < 0.000) between the CMAs for parameters of mycorrhization. Thus, G. cubenshave induced the best frequency and intensity of mycorrhization and a high number of spore per gram of soil (Table 6).  On the contrary, F.mosseae +50% NP have induced the lowest intensity of mycorrhization (1.85%) and the lowest number of spore per gram of soil (0.64/g). A reduction of values of three mycorrhizal variables measured was observed when AMFs are combined with NPK. The same trend has been observed in the work carried out by (Dafi and Nicolson, 1969; Mosse, 1973) which found that the contribution of phosphorus in high concentrations increases the roots resistance to mycorhization. The best value induced by G. cubens for growth and yield parameters is confirmed by the mycorrhization parameters. However, when combined with 50% of NPK, the best values are observed with R. intraradices followed of G. cubens.  We deduce that R. intraradices resists more to the mineral fertilizer than G. cubens. Although soil chemical analysis has revealed that the experimental soil has a low fertility level, the values of mycorrhizal parameters are relatively small compared to those obtained by Pérez-Luna et al. (2012). In the previously study, the number of spores per gram of soil was 18 for G intraradices in Mexico. The results of our study are slightly higher than those of Chantelot (2003) who noted that the Most Probable Number (MPN) is considered acceptable around 1.5 and too low below 0.5 propagules per gram of soil. Moreover, the three weeding during our experiment in the field would have strongly affected the CMAs establishment on maize roots. Indeed, (Evans and Miller, 1990; McKonigle and Miller, 2000) showed that the work on the ground cause the destruction of the mycelium and are widely at origin of the reduction of maize roots colonization by fungi. The previous work conducted by Hayman (1983) also showed that the plants colonizationby CMAs may vary according to the CMA train used in the culture. Regarding the effectiveness of this strains of G. cubensis the most performant. Hetrick et al. (1995) have shown that mycorrhizal development is an expression of an interaction which varies strongly according to the varieties of plants and fungi strains.

The results of this study in general revealed that the use of mycorrhizal fungi has been beneficial. Indeed, without contribution of NPK, frequency, root mycorrhization rates and mycorhizogene power of soil are relatively high and allows a better growth and yield compared to control plants. However, all of results show that the use of mycorrhizal inoculum combined with 50% dose NPK increase the growth and yield parameters of maize. Despite the fact that the synthetic fertilizer has been a source of stress for the mushrooms, which slowed their mycorhizogene power and infecting, it led to outcomes compared to the absolute control. This lets consider that the recommendations of synthetic fertilizer application could possibly be reduced to less than half by combining the mycorrhizal inoculum. Hamza and Hafsi (2014) with a similar score claim that this reduction of synthesis fertilizer presents a very interesting economic and ecological benefit.

5. CONCLUSION

According to the results obtained in this study, we can say that arbuscular mycorrhizal fungi can provide to farmers an additional tool to reduce contributions of chemical fertilizers, improve soil fertility and increase their yields. These CMAs are most effective when they are combined with a half recommended dose of NPK. Let’s Retain that it’s G. cubens which proved to be more effective than other species. It is more adapted to the environmental conditions by giving overall, the best results for the growth parameters of, performance and mycorrhization, these results are more interesting when combined with 50% of NPK.

These results showed the benefits of biotechnology based on CMAs in agriculture to improve the growth and yield of maize in Benin while protecting the environment for sustainable development.

RÉFÉRENCES

Adjanohoun, A., P.A. Noumavo, R. Sikirou , M. Allagbe, H. Gotoechan-Hodonou, K.K. Dossa, B. Yehouenou, R.G. Kakaï and L. Baba-Moussa, 2012. Effets des rhizobactéries PGPR sur le rendement et les teneurs en macroéléments du maïs sur sol ferralitique non dégradé au Sud-Bénin. International Journal of Biological and Chemical Sciences, 6(1): 279-288. View at Google Scholar | View at Publisher

Azontondé, H.A., A.M. Igue and G. Dagbenonbakin, 2009. Carte de fertilité des sols par zone agro-écologique du Bénin. Rapport finale, Afrique-Etudes, Ministère de l’Agriculture de l’Elevage et de la Pêche (MAEP), Bénin.

Azontondé, H.A., A.M. Igué and G. Dagbénonbakin, 2010. Carte de fertilité des sols du Bénin par zone agroécologique du Bénin. Rapport Final, Bénin.

Bárzana, G., R. Aroca, J.A. Paz, F. Chaumont, M.C. Martinez-Ballesta, V. Carvajal and J.M. Ruiz-Lozano, 2012. Arbuscular mycorrhizal symbiosis increases relative apoplastic water flow in roots of the host plant under both well-watered and drought stress conditions. Annals of Botany, 109(5): 1009–1017. View at Google Scholar | View at Publisher.

Bray, R.H. and T.L. Kurtz, 1945. Determination of total, organic and available forms of phosphorus in soils. Soil Science, 59(1): 39-45. View at Google Scholar | View at Publisher

Capo-Chichi, J.Y., 2006. Monograph of the common savè. Support Program Startup of Commons: 25.

Chantelot, E., 2003. Activité biologique des sols Méthode d’évaluation Fiche rédigée à partir du document sur les méthodes d’évaluation de l’activité biologique de l’ITAB: 102.

Dafi, M.J. and H.T. Nicolson, 1969. Effect of endogonemycorrhizal on plant growth. Iii: Influence of inoculum concentrationon growth and infection in tomato. New Phytologist, 68(4): 953-963. View at Google Scholar | View at Publisher

Evans, D.G. and M.H. Miller, 1990. The role of the external mycelial network in the effect of soil-disturbance on the vesicular arbuscular mychorrhizal colonization of maize. New Phytologist, 114(1): 65-71. View at Google Scholar | View at Publisher

Fao/Stat, 2013. Organisation pour l’alimentation et l’agriculture de l’Organisation des Nations Unies. Retrieved from http://faostat.fao.org.Consulté [Accessed 06 Juin 2015].

Fernández, F., R. Gómez, L.F. Vanegas, B.M. De la Noval and M.A. Martínez, 2000. Producto inoculante micorrizógenov. Oficina Nacional de Propiedad Industrial. Cuba, Patente No. 22641.

Fortin, J.A., C. Plenchette and Y. Piche, 2008. Les mycorhizes la nouvelle révolution verte, Eds Multi Mondes.

Gabriel, R. and P. Cristina, 2007. Mecanismos de adaptación de maíz asociado a glomus spp. En suelos con bajo fósforo disponible. Agronomía Colombiana, 25(2): 349-356. View at Google Scholar

Giovannetti, M. and B. Mosse, 1980. An evaluation of techniques for measuring vesicular-arbuscularmycorrhizal infection in roots. New Phytologist, 84: 89–101.

Grümberg, B., C. Conforto, A. Rovea, M. Boxler, G. March, C. Luna, J. Meriles and G.S. Vargas, 2010. La glomalina y surelación con la productividad del cultivo de maízjmeriles@efn.Uncor.Edu. Presentado al XXII Congreso Argentino de la Ciencia del Suelo – AACS – Rosario.

Hamza, N. and M. Hafsi, 2014. Application des mycorhizes arbusculaires en culture maraîchère cas de la pastèque (Citrulluslanatus). Faculté des Sciences De la Nature et De la Vie, Mémoire de Master, Université Ferhat Abbas Sétif 1.

Hayman, D.S., 1983. The physiologiy of vesicular-arbuscular endomycorrhizal symbiosis. Plant Biology, 61(3): 944-963. View at Google Scholar | View at Publisher

Hernandez, M., J.P. Argel, A.M. Ibrahim and T.L. Mannetje, 1995. Pasture production, diet selection and liveweight gains of cattle grazing brachiariabrizantha with or without arachispintoi at two stocking rates in the Atlantic zone of Costa Rica. Tropical Grasslands, 29: 134-141. View at Google Scholar

Hetrick, B.A.D., G.W.T. Wilson, B.S. Gill and T.S. Cox, 1995. Chromosome location of mycorrhizal responsive genes in wheat. Canadian Journal of Botany, 73(6): 891-897. View at Google Scholar | View at Publisher

INRAB, 1995. Fiches Techniques Des Cultures Vivrières.

Jansa, J., A. Mozafar and E. Frossard, 2005. Phosphorus acquisition strate-gies within arbuscular mycorrhizal fungal community of a single field site. Plant and Soil, 276(1): 163–176. View at Google Scholar | View at Publisher

Kjeldahl, J., 1883. Neue Methode zur Bestimmung des Stickstoffs in organischen Körpern. Z. Analytical Chemistry, 22(1): 366-382. View at Google Scholar | View at Publisher

Leye, E.H.M., M. Ndiaye, F. Ndiaye, B. Diallo, A.S. Sarr, M. Diouf and T. Diop, 2009. Effet de la mycorhization sur la croissance et le développement de Jatropha curcas L. Energies Renouvelables, 12(2): 269 – 278. View at Google Scholar

Matos, R.M.B., E.M.R. Da Silva and E. Lima, 1999. Fungos micorrízicos e nutrição de plantas. Seropédica: Embrapa Agrobiologia. EMBRAPA – CNPAB. Documentos.

McKonigle, T.P. and M.H. Miller, 2000. The inconsistent effect of soil disturbance on colonization of roots by arbuscular mycorrhizal fungi: A test of the inoculum density hypothesis. Applied Soil Ecology, 14(2): 147-155.View at Google Scholar | View at Publisher

Metson, A.J., 1956. Methods of chemical analysis for soil survery samples. Soil Science, 83(3): 245. View at Publisher

Mosse, B., 1973. Advances in the study of vesicular-arbuscular mycorrhiza. Annual Revue of Phytopathology, 11(1): 171-196. View at Google Scholar

Oehl and E. Sieverding, 2004. Pacispora, a new vesicular-arbuscular mycorrhizal fungal genus in the glomeromycetes. Journal of Applied Botany and Food Quality, 78: 72–82. Retrieved from http://amfphylogeny.com/species_infos/pacispora_franciscana+robigina+boliviana+coralloidae/pacispora_franciscana+robigina+boliviana+coralloidae.pdf [Accessed 10 Juin 2017].

Pérez-Luna, Y.D.C., J.D. Álvarez-Solíse, J. Mendoza-Vega, J.M. Pat-Fernández, R. Gómez-Álvarez and L. Cuevas, 2012. Diversidad de hongos micorrícicos arbusculares en maíz con cultivo decobertura y biofertilizantes en Chiapas. Thèse. México.

Phillips, J.M. and D.S. Hayman, 1970. Improved procedures for cleaning roots and staining parasitic and vesicular arbuscular mycorrhizal fungi for rapid assessment of infection. Transactions of the British Mycological Society, 55(1): 158 – 161 View at Google Scholar | View at Publisher

Ramón, A.R.E., F.M. Félix, H.J. Alberto and R.M.T. José, 2003. La simbiosis microrrizica arbuscular sostenible. La Habana: Estudio de Caso: El Caribe. INCA.

Read, D. and J. Perez-Moreno, 2003. Mycorrhizas and nutrient cycling in ecosystems-a journey towards relevance. New Phytopathologist, 157(3): 475-492. View at Google Scholar | View at Publisher

Ruget, F.B. and M. Chartier, 1996. Estimation simple de la surface foliaire de plantes de maïs en croissance. Agronomie, 16(9): 553-562. View at Google Scholar | View at Publisher

Schoebitz, C.M.I., 2010. Étude de l’encapsulation de rhizobactéries pour la biofertilisation du blé. Thèse de Doctorat, Université de Nantes, France.

Smith, F.A., E.J. Grace and S.E. Smith, 2009. More than a carbon economy: Nutrient trade and ecological sustainability in facultative arbuscular mycorrhizal symbioses. New Phytologist, 182(2): 347–358. View at Google Scholar | View at Publisher

Smith, S. and D. Read, 2008.  3rd Edn., Mycorrhizal symbiosis. 3rd Edn., New York: Academic Press. pp: 800.

Tao, L. and Z. Zhiwei, 2005. Arbuscular mycorrhiza in a hot and arid ecosystem in Southwest China. Applied Soil Ecology, 29(2): 135-141. View at Google Scholar | View at Publisher

Tchabi, A., D. Coyne, F. Hountondji, L. Lawouin, A. Wiemken and F. Oehl, 2008. Arbuscular mycorrhizal fungal communities in sub-Saharan Savannas of Benin, West Africa, as affected by agricultural land use intensity and ecological zone. Mycorrhiza, 18(4): 181–195. View at Google Scholar | View at Publisher

Tchabi, A., D. Coyne, F. Hountondji, L. Lawouin, A. Wiemken and F. Oehl, 2010. Efficacy of indigenous arbuscular mycorrhizal fungi for promoting white yam (Dioscorea Rotundata) growth in West Africa. Applied Soil Eco-logy, 45(2): 92–100. View at Google Scholar | View at Publisher

Thomas, G.W., 1982. Exchangeable cations. In: Methods of soil analysis. (Page AL, RH Miller and DR Keeney, 2nd eds)(Madison). Agronomy, 9: 154-157. View at Google Scholar | View at Publisher

Trouvelot, A., J.L. Kough and V. Gianinazzi-Pearson, 1986. Mesure du taux de mycorhization VA d’un système radiculaire. Recherches et méthodes d’estimation ayant une signification fonctionnelle. In: Aspects physiologiques et génétiques des mycorhizes, Dijon, 1985: INRA.

Valdés, E.M.F., E.C. González, M.M. Serrano, H.R. Labrada, E.M. Báez, F.G. Hernández and F.A. Hernández, 2013. Experiencias obtenidas en el desarrollo participativo de híbridos lineales simples de maíz (Zea Mays, L.) en condiciónes de bajos insumos agrícolas. Cultivos Tropicales, 34(2): 61-69. View at Google Scholar

Walkley, A. and C.A. Black, 1934. An examination of the degtjareff method for determining soil organic matter and a proposal modification of the chromic acid titration method. Soil Science, 37(1): 29-38. View at Google Scholar | View at Publisher

Wang, G.M., D.P. Stribley, P.B. Tinker and C. Walker, 1993. Effects of pH on arbuscular mycorrhiza I. Field observation on the long term liming experiments at Rothamsted and Woburn. New Phytologist, 124(3): 465-472. View at Google Scholar | View at Publisher

Whipps, J.M., 2004. Prospects and limitation for mycorrhizas in biocontrol of root. Pathogens. Revue Canadienne de Botanique, 82(8): 1198-1227. View at Google Scholar | View at Publisher

Yallou, C.G., K. Aïhou, A. Adjanohoun, M. Toukourou, O.A. Sanni and D. Ali, 2010. Itinéraires techniques de production de maïs au Bénin. Fiche technique. Dépôt légal N° 4922 du 3 Décembre, Bibliothèque Nationale du Bénin.

ILLUSTRATION

Liste of Table

Table-1. Chemical characteristics of soil ofexperimental site (0-20 cm depth).

MO: organic matter; P a (ppm): assimilable phosphorus; K - ech: exchangeable Potassium; CEC: Ability to Exchange Cationique, ppm: percentage per thousand; meq: milliequivalent.

Table-2. Average value of growth parameters of plants inoculated compared to control plants:  results of the Dunnett test.

*: significant 0.0; *: significant at 0.01; *: significant at 0,001(P<0,001). G. cub: Glomus cubens; A. int : Rhizophagus intraradices; F. mos : Funneliformis mosseae; G.cub+ 50% NPK: Glomus cubens + 50% NPK; R.int+ 50% NPK: Rhizophagus intraradices + 50% NPK; F. mos + 50% NPK: Funneliformis mosseae, 100% NPK: 100% NPK

Table-3. Influence of the CMAs on height, diameter and leaf area of maize plants at 60th DAS

Table-4. Average value difference of the production parameters of treatment compared to controls T1: Dunnett test results

Table-5. Average value of production parameters depending on the treatments: results of analysis of variance followed by Student Newman and Keuls test

Table-6. Intensity of mycorrhization, mycorrhization frequency and number of spores per gram of soil: results of analysis of variance.

Table-7.  Nitrogen, phosphorus and potassium contents of the maize plants

Liste of figure

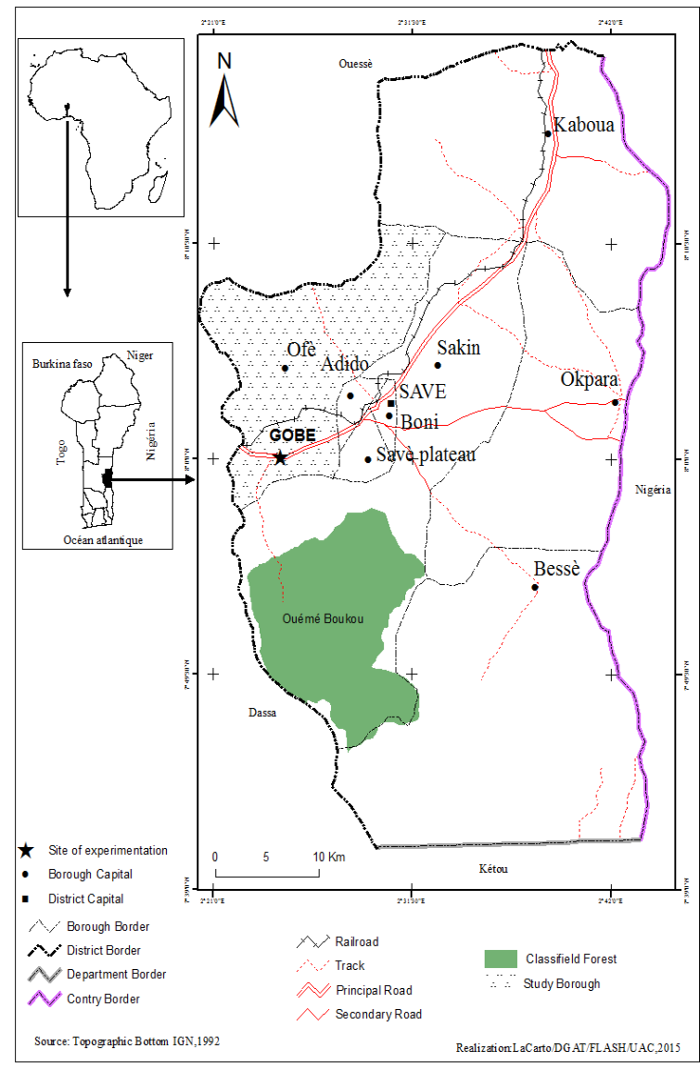

Figure-1. Geographical localization of the experimentation site

Source: Fond topographique IGN, 1992, Réalisation: LaCarto/DGAT/FLASH/UAC, 2015.

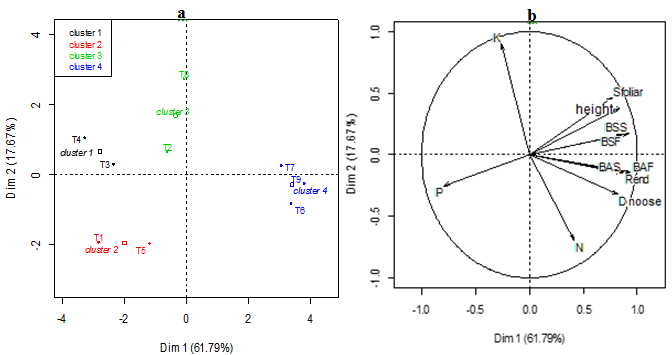

Figure-2. (a) categorization of treatments and their (b) discrimination in the factorial axis plan (1,2).
