Abstract

The research presented in this paper is part of a more significant effort to improve the dynamic and static performance of power generation systems using solar panels under specific climatic conditions. The solar panel can produce the greatest power only at the specified voltage and electric current levels. Environmental variables, such as random atmospheric oscillations, have a significant effect on the performance of a solar system connected to the network. Irradiation and ambient temperature are the two inputs to a PV (photovoltaic) system. Because solar radiation varies in nature, the PV system efficiency is low. To improve the efficiency of a solar PV system, several maximum power point tracking (MPPT) approaches are used. The purpose of this paper is to improve the performance of DC/DC chopper controllers and PV inverters in the face of abrupt climate change. To that end, the primary goal of this paper is to compare the following maximum power point search (MPPT) algorithms: the incremental conductance (IC) algorithm, the fuzzy logic (FL) algorithm, VSI controller, and the particle swarm optimization (PSO) strategy. These algorithms were evaluated in terms of efficiency, stability, and speed. A 100 kW PV system is design using MATLAB software 2021a version.

Keywords: Fuzzy controller, Grid connected PV, IC algorithm, Modeling, MPPT control, PSO algorithm, PVsystem, VSI control.

Received: 8 April 2022 / Revised: 22 July 2022 / Accepted: 5 September 2022/ Published: 30 September 2022

Contribution/ Originality

The paper's primary contribution is in finding the most appropriate model that treats the problem of MPPT of grid-connected photovoltaic to achieve maximum power - using four techniques of artificial intelligence.

Nomenclature

PV : Photovoltaic. Io : Reverse saturation current.
P & O : Perturb and observe. q : Electron charge =   coulomb
MPPT : Maximum power point tracking. K : Boltzmann constant =
MPP : Maximum power point. T : Temperature of p-n junction in kelvin.
VSI : Voltage source inverter. A : Ideal diode constant.
SMC : Sliding mode control. Ior : Nominal saturation current.
IGBT : Insulated gate bipolar transistors. TR : Nominal temperature.
ISC : Current generated by incident light (or) Short circuit current. Eg : Band gap energy of the semiconductor.
VOC : Open circuit voltage.

1. INTRODUCTION

Grid-connected PV systems are of tremendous interest for producing power in large-scale applications because of their economically optimal size, design, and cost [1, 2].The photovoltaic energy sector saw tremendous progress in the last decade. As a result of this progress, complex PV grid topologies have begun to evolve to boost power, efficiency, and reliability. Furthermore, grid-connected PV systems (which do not require batteries) are well-known for being less expensive than stand-alone PV systems (which do require batteries)[3]. Despite significant advancements in the field of PV systems, there are still issues with PV grids such as voltage regulation, power quality, and grid problems. A PV grid requires a robust control mechanism to mitigate all of these drawbacks [4, 5].

The maximum power point tracking (MPPT) controller was created to deal with the strains caused by various environmental fluctuations[5, 6]. This controller's performance is determined by how soon it reaches 1000 MPPT, how well it oscillates around that point, and how resistant it is to abrupt atmospheric changes. The MPPT technique recently attracted a lot of attention as a way to improve the dynamic performance of PV systems, particularly in terms of tracking the MPPT in the presence of various local maxima during the night[5, 7]. Among the options found in the literature, there is a proposal to reconfigure the structure to reduce shading by providing an optimal PV system configuration to achieve the MPPT. To identify the shadowed PV module and minimize power losses, Tabanjat, et al. [8] suggested a method based on fuzzy logic (FL) with the online reconfiguration solution [5, 6]. To define likely connection architectures, Parlak [9] proposed a configuration digitization algorithm. This method solely employs short-circuit currents to produce PV modules from the same photovoltaic branch with current values that are close to those of a short-circuit [9]. Under uniform lighting conditions, traditional MPPT approaches such as incremental conductance (IC) produce good results [8]. However, because the P-V curve has numerous peaks, this performance is not guaranteed during outperforms (OP). As a result, the local maximum could trap ICTan, et al. [7]; Lyden and Haque [10]. Sai, et al. [11]suggested a method for drawing the I(V) curve without disrupting the functioning of a PV system. Other studies have used MPPT techniques based on artificial intelligence; among these research studies, Nedjma [6]used the FL-based MPPT algorithm. The simulation results showed that the suggested technique outperforms the perturbation and observation (P&O) algorithm in terms of dynamic reaction capacity and speed response under different circumstances [12-13]. Another form of MPPT technology, based on the metaheuristic approach, has piqued the curiosity of researchers.

We mention the following researchers among them: Nedjma [6]used the golden section optimization approach to track the MPP during night[14] and in the face of fast meteorological changes. A modified PSO (MPSO) technique was developed by Sakthigokulrajan and Ravi[2]. The main benefit of modified particle swarm  optimization MPSO, according to the authors, is the reduction in steady-state oscillation once the MPP is attained Sakthigokulrajan and Ravi [2].

Soufyane, et al. [14] created the artificial bees colony (ABC) algorithm, which was experimentally confirmed in terms of resilience and efficiency [6]. The main contribution of this work is to provide artificial intelligence-based control approaches for the global maximum power point tracking GMPPT to find the global maximum power point GMPPT. In the year 2020, Nedjma [6],created a project about the design of an optimal MPPT control based on artificial intelligence [6]. We relied on the reason for the results obtained in making our controller model and applying it to our PV grid model[6, 11, 15].

The main contributions of this approach are:

2. GRID-CONNECTED PV SYSTEM PROPOSED IN THE STUDY

The PV system employed in this study is the 100kW PV system connected to the electrical grid that we used in our previous work, as shown in Figure10.Table1lists the primary parameters that define this PV system.

Table 1. Parameters characterizing the proposed grid-connected PV system are listed in.
  PV parameters PV module model
MPPT-305-WHT-U
PV array power
100.7 kW
PV current
368.28 A
PV voltage
273.5 V
DC/DC chopper output voltage
500 V
Direct Current Voltage DC link parameters Capacity
0.012 F
DC link voltage
500 V
Switching frequency
5 kHz
Network settings Voltage (Vrms)
25 kV
Current (Vrms)
1.76 A
frequency
50 Hz
Load parameters active power
30 kW
Reactive power
10 kVAR
frequency
50 Hz

The PV system described in this work is based on two models[6, 11] and it is primarily equipped with:

Each branch is made out of 5 305 kW PV modules.

This system has two stages of control, as shown in Figure 1:

This controller, as shown in Figure 2, increases the efficiency of DC/AC control. This three-phase inverter controller contains an internal DC coupling direct current Voltage control loop, as shown in Figure 2a and Figure 2.b This voltage control allows the voltage to be regulated to its optimal value to supply current to the DC link. The phase-locked loop's forward and quadrature currents (Id, Iq) are controlled by the second loop, which is the outer loop. Each of these two loops is regulated by a PI controller, whose gains are altered using metaheuristic techniques to increase the grid-connected PV system's dynamic performance.

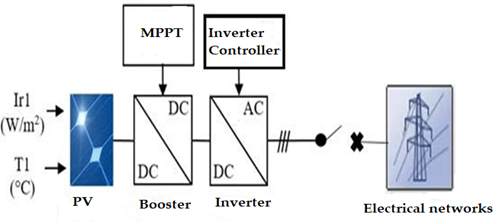

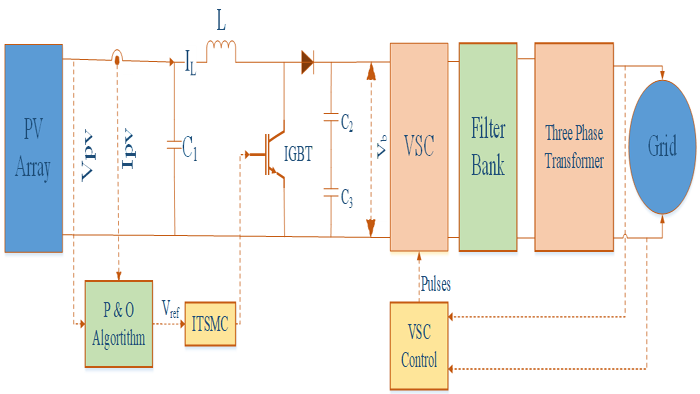

Figure 1. Photovoltaic system with a 100-kilowatt output that is connected to the grid[6].

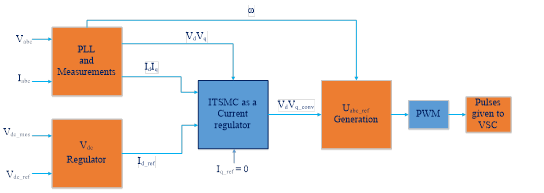

Figure 2.a. Control scheme for three-phase inverters [6, 11].

Figure 2.b. Control scheme for three-phase inverters[11].

3. MODELLING A PV ARRAY’S CHARACTERISTICS

A PV grid converts solar energy into electricity using one or more PV arrays. A PV cell is the basic unit of a PV array, and it works on the photovoltaic principle. When the photon energy is greater than the band gap energy, the photovoltaic effect occurs, which is described as the conversion of light into electrical energy by outer electrons breaking the bond in a semiconductor device. Equation 1 presents a semiconductor diode of a PV cell with the Shockley diode equation[13] :

Equation 2 argues the PV cell's output current I_PV and Equation 3 presents a saturation current Io are calculated as:

3.1. Modeling of Boost Converter and MPPT

Figure 3 depicts the I-V characteristics of a PV cell [11] highlighting the importance of short circuit current (highest current at zero load) and open circuit voltage (voltage at zero current). The maximum power point can be obtained by using the highest voltage V, MPP and current, as shown in the figure.

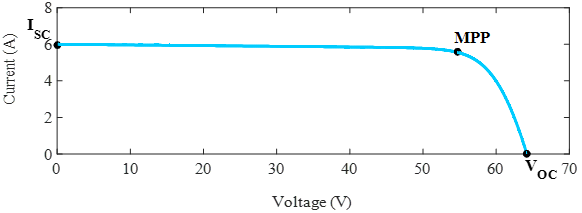

Figure 3. I-V characteristic curve of a PV array.

V_MPP tracking is required for maximum power extraction. MPPT algorithms can be used to improve the efficiency of a system employing MPP tracking [14]. MPPT methods include perturb and observe, incremental conductance, fractional circuits, and fuzzy networks [16]. The perturb and observe technique is used in this paper because of its ease of implementation and cost-effectiveness. By tracking the maximum power point, this technique generates a reference voltage.

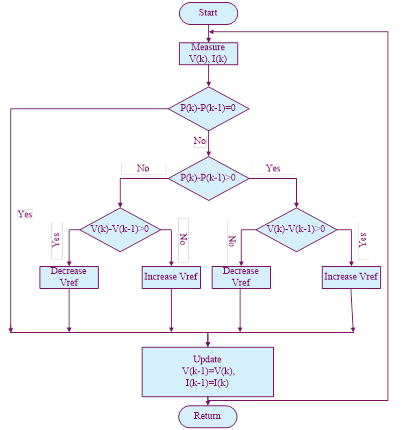

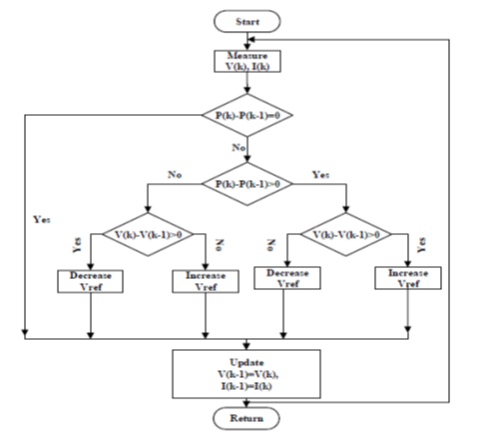

Figure 4. Flowchart for perturb and observe algorithm[11].

Figure 4 depicts the perturb and observe algorithm, which demonstrates how the reference voltage V ref changes in response to the PV array's power output. When there is a power decrease, perturbation is usually in the same direction as the power increase, and when there is a power decrease, perturbation is in the other direction [17]. The process of observation and perturbation continues until the maximum power point is reached, and a reference voltage is found, which should be compared to the voltage generated V_PV. The difference between these two voltages must be regulated so that it does not change the duty cycle of the maximal power, which affects the boost converter's output voltage. As a result, the duty cycle of pulse width modulation PWM delivered to IGBT can be controlled. In a boost converter, the error between the generated and reference voltage must be regulated.

A DC-DC boost converter's current at the capacitor C1 with an inductor current I_L is defined as:

With u as the duty cycle and Vb as the bulk voltage across the capacitor C2, the voltage across the inductor L is given by:

3.2. Voltage Source Inverter

In this paper, a current-controlled three-phase voltage inverter is employed. The boost converter provides a steady DC voltage to the VSI. A three-phase inverter's output voltage is generated by driving the gates and switches. If the inductor currents and capacitor voltage are treated as state variables, the state-space representation [11, 18] of a three-phase VSI coupled to a grid is as follows:

Each phase of VSI is represented by the switching signalsThe grid and inverter output filter's total inductance is L1, with an equivalent series resistance of R1

To regulate the gates, VSI requires pulses, which are generated by PWM. VSI control generates these pulses, and the VSI control block diagram is given in Figure 5. PWM takes the three modulating signals Uabc_ Ref as input. The output voltages Vd and Vq of a current controller generate these three modulating signals. Thus, for a simpler control design, transformations for the state space model must be implemented, which can be done via park or transformation.

Figure 5. VSI control[11].

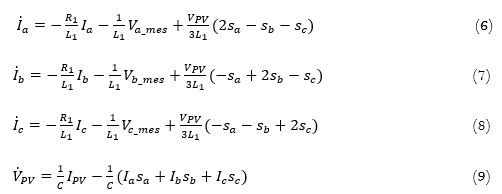

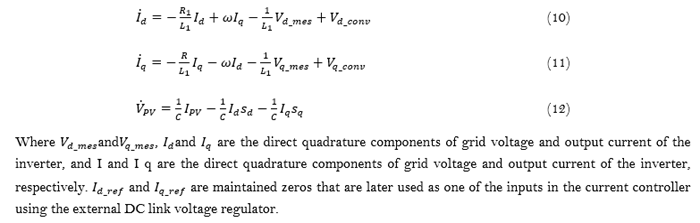

For VSI state space equations [11] applying dq transformation in synchronous frame can change them as illustrated below in the Figure 5.

4. CONTROL SCHEME

In real-time applications, grid-connected PV systems are a type of nonlinear system with parameters perturbation, uncertainty and external disturbances. The IC, FC and PSO controllers provide a superior technical solution for non-affine nonlinear systems of this type by retaining the system error on an integral terminal sliding surface and then sliding the surface to zero. This paper discusses The IC, FC and PSO design for MPPT control [6].

4.1. MPPT Control

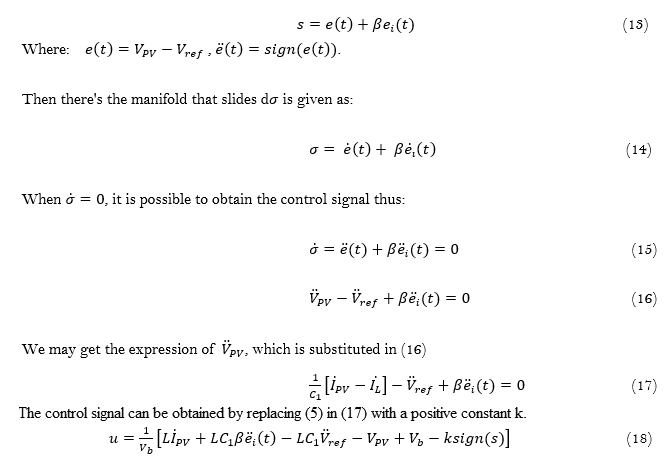

Consider the following switching variable as a constant for MPPT control [11].

4.2. Clear Evidence

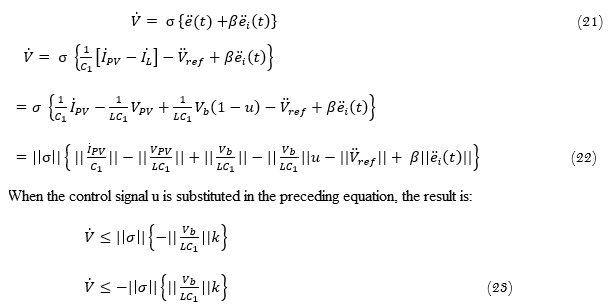

We know from the Lyapunov function that:

When we replace Equation 15 with Equation 20, we get[11]:

The proof is completed by holding Equation 23 in place, which ensures the exponential convergence of to“ 0 ”.

4.3. Control Scheme for VSI[11]

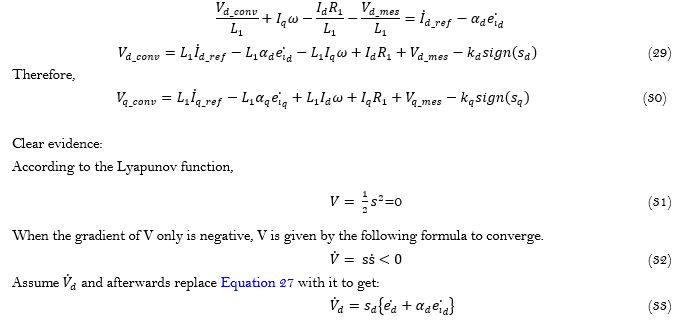

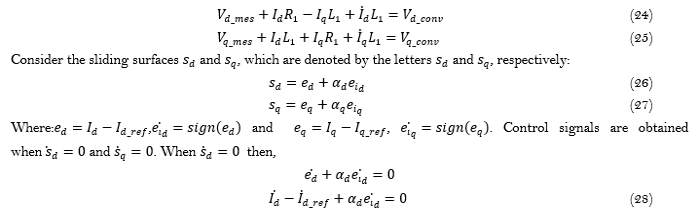

We get (10) and (11) when we rewrite the equations[11]:

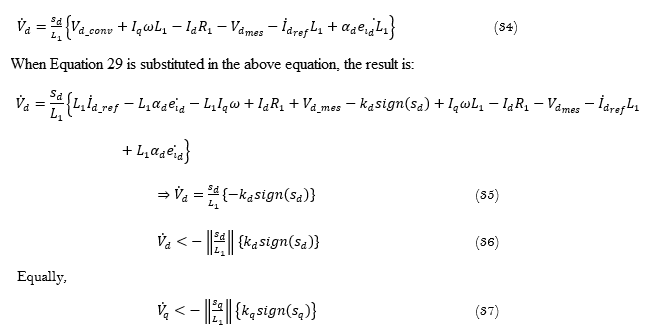

Equations 24 and 28 are combined to produce:

We may simplify the preceding equation as follows using Equations 24and 28:

As a result, it is stable.

4.4. Fuzzy Control Algorithm[6]

FL is a novel artificial intelligence-based method. The FL [6] as shown in Figure 6, outperforms the standard IC algorithm in terms of robustness, stability, and ease of implementation[6, 19, 20] . The FL controller's primary goal, like that of other MPPT controllers, is to reach the MPP. The execution of this directive, however, is largely dependent on human skill [6]. The FL method is based on the decomposition of a real variable's range of variation into linguistic variables and assigning a membership function to each variable [1, 3, 4, 11, 16, 20-29] . The rules derived from the human operator's competence are conveyed in language form. The dynamic performance of the FL controller is determined by these rules. The proposed FL controller has four basic components: a fuzzification unit, base rules, inference motor, and defuzzification [16, 21-23] . The conversion of real variables to phantom variables is the focus of the fuzzification unit. E(k) and CE(k) are control entries for the FL provided by the Equations 38 and 39. E(k) stands for the PPV derivation (k). When the point of operation reaches the MPP, E(k) is terminated. CE(k) is an error made by E. (k). The tension and current are measured to calculate the PPV power. The output of the FL dD controller is the only variable in the cyclic relationship[6, 11].

The symmetric triangular form is considered the most suited among the several forms of membership functions (trapezium, Gaussian, and triangular, etc.) Figure 6. The range of fuzzy variables is often adjusted between 1 and +1 by using a gain factor to represent the genuine signals [30-33] . The symmetric triangle form was used for this investigation, and the boundaries were set at 935 [-0.04, 0.04], [-100, 100], and [-0.04, 0.04], respectively, for E, CE, and dD Which represent the error between the inputs and the outputs where dD is the output barycenter calculated by defuzzification.

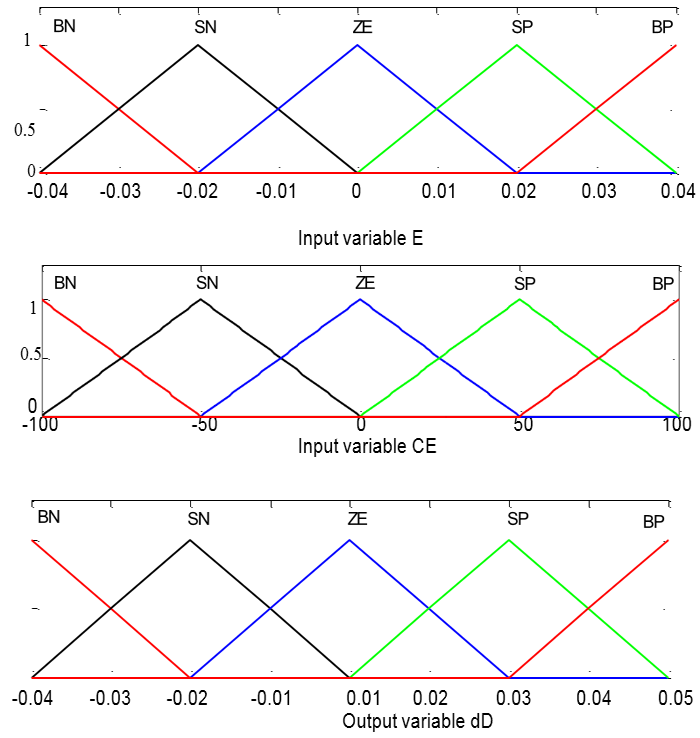

Figure 6.Input CE, ET and output (dD) variable membership functions[6].

Table 2. FL fuzzy logic rules[6].
BN
SN
ZE
SP
BP
BN
ZE
ZE
BP
BP
BP
SN
ZE
ZE
SP
SP
SP
ZE
SP
ZE
ZE
ZE
SN
SP
SN
SN
SN
ZE
ZE
BP
BN
BN
BN
ZE
ZE

Where: (BP: large positive (big positive)), (SP: small positive), (ZE: zero), (SN: slightly negative (small negative)), and (BN: huge negative (big negative)) are the inputs variables, Nedjma [6].

4.5. Particle Swarm of Optimization Algorithm

PSO is a metaheuristic global search approach based on same-group particles' common and self-organizing activity [6,11, 32 and34] . As shown in Figure 7, displacement rules (in the space of solutions) regulate this strategy, which allows these particles to progressively shift from their random places to an ideal local position [36, 37].

The parameters of the PSO are listed in Table 3, and the particle's position is corrected based on its updated speed (velocity), best personal position achieved (PBest), and best position obtained in the region (GBest). The PSO is based on the Equations 38 and 39 [1, 4, 11, 16, 21-27, 33] which describe how to update the local and global positions of particles and the  group:

Where:

Figure 7. The PSO's organizational chart [6].

Rand: A random variable with a uniform distribution over the range [0, 1] (function defined in MATLAB); and D stands for duty cycle.

Table 3. PSO algorithm parameter[6].
Parameters
Symbole
Valeur
Number of swarms
Swarms
10
Number of iterations
iter_max
20
Weight of local information
c1
0.02
Weight of global information
c2
0.05
Weight of inertia
w
0.5
Dimension of the problem
Dim
1
Global maximum power point
GMPP
0

The PSO flowchart [6]shown in Figure 7is dependent on satisfying Equation42. The steps in this flowchart are as follow: Table 3 shows the initialization of the PSO parameters. Particles, locations, and velocity are all initialized. The initialization of the particles entails setting the old and new components of the photovoltaic power vectors to zero:

PPV Old = 0 (1, swarming).
PPV New = 0 (1, swarms).

4.6. Conductance Increment (CI) Algorithm

The conductance increment (IC) algorithm is a traditional MPPT method that employs two probes to monitor the PV module's operational voltage V and current I. This method is based on the fact that at the maximum power point (MPP), the derivative of the output power P with respect to the voltage V of the PV module is equal to zero [6, 11]. As a result, we have the following equations: [6, 21].

To reach the MPP, the primary function in the CI algorithm shown in Figure 8 requires the following conditions:

The voltage that corresponds to the MPP is called Vmp. If Equation 43 holds, the PV system has reached the MPP and no adjustment in the operating voltage is required; otherwise, the operating voltage is adjusted as needed.

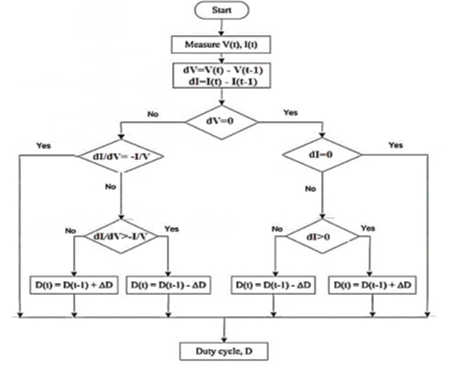

Figure 8. Flowchart of the incremental conductance algorithm[6].

5. SIMULATION RESULTS

The goal of this essay wasto create an AI-based MPPT control that can cope with various atmospheric fluctuations.

Given the effects of lighting and temperature, this research examined the MPPT methods chosen (IC, FL, and PSO) and assessed their dynamic behavior in terms of stability, speed, and efficiency.

The simulation was run for 1000W/m2 uniform and constant illumination conditions with a temperature of 25°C. The synoptic diagram and model provided for the simulation of the PV system of 100 kW connected to the distribution network under Matlab/Simulink are shown in Figures 9.

A 100 kW 1000 W/m2 PV generator is connected to a 25 kV grid using a boost DC/DC chopper and a three-phase three-level voltage inverter in this setup. In the boost converter, the MPPT controller is implemented. In this case, We chose the boost type converter since the PV generator can give a maximum voltage of 273.5 volts and a current of 368.28 ampere at the input of the DC-DC converter, and we required 500 volts at the input of the three-phase inverter. The PV generator is made up of 66 PV strings that are joined in series. Each PV string is made up of five PV modules that are linked in series. Each PV module is made up of 96 PV cells that are linked in series.

Table 4  lists the model parameters for the PV modules that were used.

Table 4. PV Generator specifications.
Results
PV Module Features
Model
Number
of Cells
Vm(V)
Im(A)
MPP
(kW)
ISC(A)
VOC(V)
PV module features
Sun Power SPR-305WHT
96
54.7
5.58
0.305
5.96
64.2
Features of 100 kW PV Generator
273.5
366.39
100.208
35.87
57.8
Note : 1- VOCis an open circuit voltage. 2- ISC indicates the short circuit current.

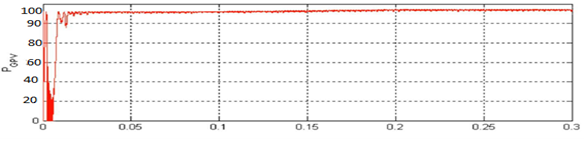

The dynamic performance of PV power, PV voltage, duty cycle, and grid-level power is shown in Figure 9. To begin, the suggested PV system was simulated under homogeneous light, which corresponded to normal circumstances of 1000 W/m2 and 25 degrees Celsius. According to Figure 9 and Table 4, the IC approach had the poorest statistical parameters, and its dynamic behavior was marked by substantial ripples, which had a detrimental impact on PV system operation. The FL had the quickest response time and accurately tracked illumination variations. The PSO approach had a 99.35 percent effectiveness rate. Figure 10 indicates that the simulation results suggest that the PSO is superior to the others. Simulations show that the algorithms FL, VSI and PSO can track changes in illumination and temperature to achieve the MPP. Figure 11 illustratesdynamic response of PSO algorithm control in grid-connected PV System and shows that PSO outperforms them especially during the night and/or in partial shaded areas during the day. Undesirable ripples in Figure 12 and Figure 13 appear in the IC's and VSI’s dynamic reaction, which is a dangerous disadvantage for the PV system.

The PV power produced using PSO was clearly superior to that obtained with FL, VSI and IC approaches especially during partial shade.

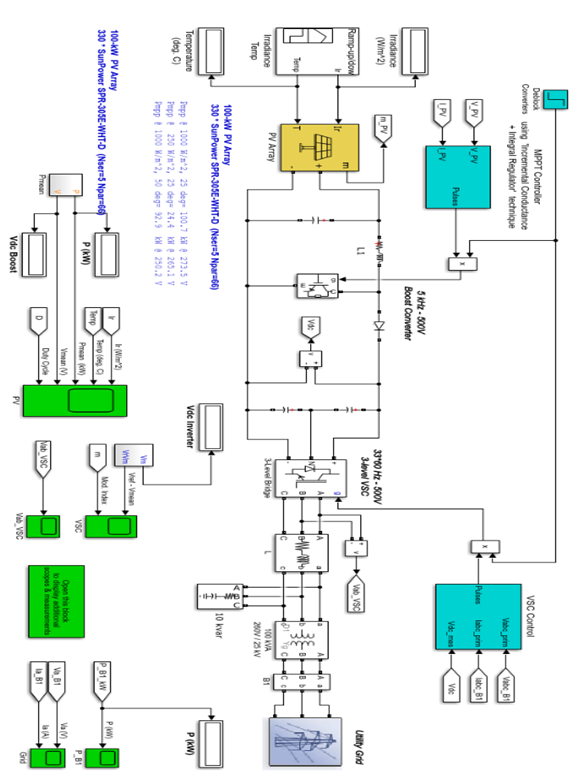

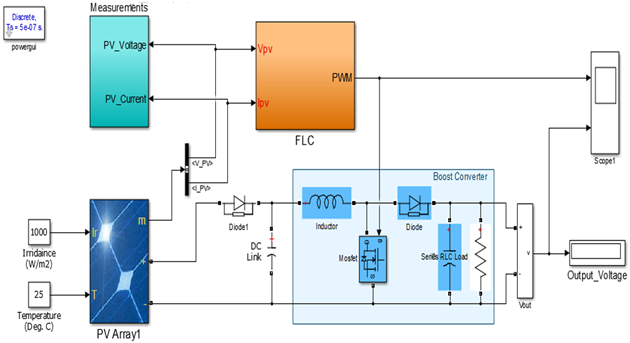

Figure 9.Grid connected PV model[11].

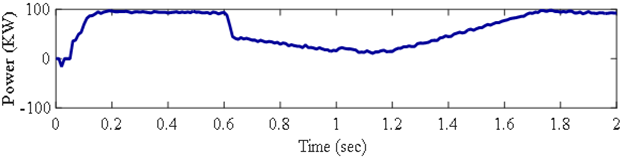

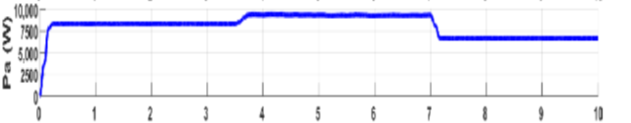

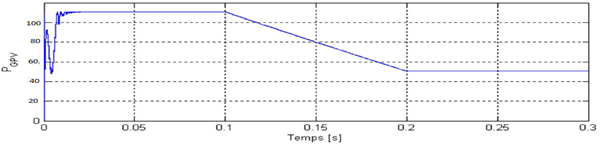

Figure 10. Dynamic response of the 100 kW grid-connected PV System with FLC control.

Figure 11. Dynamic response of the 100 kW grid-connected PV System with PSO control.

Figure 12. Dynamic response of the 100 kW grid-connected PV System with IC control.

Figure 13.Dynamic response of the 100 kW grid-connected PV System with VSI control.

6. CONCLUSION

This article provides an overview of some of the most widely used MPPT approaches cited in the literature. We chose three types of MPPT methods in this study: the classical method (IC), the artificial intelligence-based method (FL), and the metheuristic approach (PSO). The chosen model was described in detail. This model is a 100 kW PV system with a distribution network connection. Under various atmospheric conditions, we compared the IC, FL, VSI and PSO approaches in terms of efficiency, speed, and robustness. When compared to other proposed strategies such as VSI, IC and FL, simulation findings showed that PSO outperformed them especially during partial shade.

Funding: This study received no specific financial support.
Competing Interests: The authors declare that they have no competing interests.
Authors’ Contributions: Both authors contributed equally to the conception and design of the study.
