Abstract

The region-based Active Contour Model (ACM) is a widely known variational segmentation model for extracting or segmenting a digital image into numerous sections for further analysis. Distinguishing between global and specific segmentation models within this paradigm is possible. The global segmentation model is incapable of selectively segmenting the region of interest (ROI) from the input image, which leads to an over-segmented problem. A variety of models have been devised to address the task of selective segmentation, which involves the extraction of the boundary of a particular region of interest (ROI) inside a digital image. The Primal Dual Selective Segmentation (PDSS) model has been recently introduced and exhibits significant potential in terms of accuracy. Nevertheless, the presence of intensity inhomogeneity in digital images disrupts the precision and localisation of target regions of segmentation. Therefore, it is important to take into account bias field adjustment, also known as correction for intensity inhomogeneity. So, this study came up with a new selective segmentation model called the Selective Segmentation with Bias Field Correction (SSBF) model by combining the idea of the existing PDSS model with the level set-based bias field correction technique. To solve the proposed SSBF model, we first derived the Euler-Lagrange (EL) equation and solved it in MATLAB software. The Intersection over Union (IOU) coefficient, also known as the Dice (DSC) and Jaccard (JSC) similarity metrics, evaluated the proposed model's accuracy. Experimental results demonstrate that the JSC and DSC values of the proposed model were 13.4% and 7.2% higher, respectively, than the competing model.

Keywords: Active contours, Bias correction, Intensity inhomogeneity, Level set, Selective image segmentation.

Received: 20 June 2023 / Revised: 18 August 2023/ Accepted: 25 August 2023/ Published: 15 September 2023

Contribution/ Originality

By combining the level set-based bias field idea with the primal dual selective segmentation idea, a new ACM is made that can effectively find the edge of the ROI in digital images with different intensities. Various digital images from different sources were used to implement the new model.

1. INTRODUCTION

Digital image boundary extraction, also known as picture segmentation, refers to the process of dividing a specific region of interest (ROI) inside a digital image into multiple distinct portions [1]. Pixels in each region have similar features, such as intensity, colour, texture, or other attributes, which are vital in computer vision applications including object detection, image fusion, and image retrieval [2-6] . The image is simplified so that meaningful information can be extracted for subsequent research.

There are two distinct categories of segmentation methods: deep learning-based approaches and model-based approaches [2]. Learning-based approaches use deep neural networks to derive semantic information that is portioned to each pixel to achieve segmentation. However, apart from its satisfactory performance, large requirements for data volume (including the label data), storage space, and running time will limit its practical applications [2]. The edge-based method and region-based approaches are examples of model-based methods that are capable of complementing the learning-based methods. These models are less dependent on the amount of data and require no label or ground truth data. Intensity discontinuities in transitional image structure, such as edges, are used in edge-based approaches to separate objects from the backdrop. The edge detectors are illustrations of edge-based techniques that identify object and background regions by calculating the gradient of each pixel. The edge-based approach is vulnerable to picture noise [7]. The primary emphasis of region-based techniques is the image region's statistical feature homogeneity. Segmentation is carried out using the homogeneity difference between the object and background zones. It performs better for images with weak boundaries and has a lower noise sensitivity. The region-based technique may establish image boundaries that are far from the original segmentation contour and is less impacted by where the original segmentation contour is located. The boundary of an ROI may be successfully extracted from a digital image using the well-known region-based technique known as active contour model (ACM). One of the most well-known region-based models is the ACM model, specifically the Chan-Vese (C-V) model [8], which is based on the Mumford-Shah functional in Mumford and Shah [9].

The techniques discussed above are global-type segmentation strategies that can be employed to obtain feature segmentation for all characteristics. However, it is not possible to use them for the purpose of segmenting a particular object from an image. The selective image segmentation model, a different kind of image segmentation, is needed for this purpose. The Convex Distance Selective Segmentation (CDSS) model and the Primal Dual Selective Segmentation (PDSS) model are two efficient selective ACMs that have been created [10, 11]. The Mumford-Shah function served as the foundation for the creation of the CDSS model, which is used to segment grayscale pictures. Meanwhile, segmentation computation time is efficiently produced using the PDSS model, a reformed version of the CDSS model. But segmenting a targeted item in pictures with intensity inhomogeneity is not the PDSS model's intended use. Intensity inhomogeneity is noticeable in contemporary photos due to variables such as spatial fluctuations in lighting and imaging equipment abnormalities, which present various problems in image processing and computer vision [12]. In digital imaging, poor picture capture frequently results in intensity inhomogeneity. For instance, a non-uniform field or a non-uniform sensitivity of the receiver and transmitter coils can cause inhomogeneities in radio frequency fields. These distortions caused the same item types' intensities to vary across the picture, which was undesirable. Therefore, efficient and reliable methods of addressing intensity inhomogeneity are required [13].

In order to address the issue of intensity inhomogeneity, researchers [12] considered the local picture intensity information, which is then outlined as the following Equation 1:

Here, the measured image is denoted by U , I  is the actual image, f is the component of intensity inhomogeneity, and n is the component of noise. A component f  is also known as a bias field or a shading picture. The actual image  is I used to quantify an intrinsic, roughly constant physical property of the objects that is thought to be piecewise constant. It is assumed that the bias field f  varies gradually. One can suppose that the addictive noise  is zero-mean Gaussian noise. The difficulty in segmenting pictures with intensity inhomogeneity is specifically due to the overlapping throughout the range of intensities in the region of interest.

Based on Equation 1, researchers[12] made the Level Set Based Bias Field Correction (LSBF) model, which is a local intensity clustering ACM, to deal with the uneven intensity. This model determines and specifies the local clustering intensity, which is subsequently integrated with regard to the neighbourhood centre. As a global form of ACM, the LSBF model may not be able to selectively segment a specific item in an image, even though it is excellent at segmenting pictures with intensity inhomogeneity.

 Therefore, by using the concepts from the PDSS model and the LSBF model, this study will develop a new selective kind of ACM termed the Selective Segmentation with Bias Field Correction (SSBF) model. The LSBF and PDSS models will be reviewed in the next section, and then the suggested SSBF model will be presented and its solution will be covered. The final section establishes our conclusion and the recommendations for further research after the numerical experiments are shown.

2. REVIEW OF RELATED MODELS

In Section 2, we'll look at two important models to help us come up with a new selective ACM for finding the edges of ROI in digital images with different intensities. The LSBF model is the first, followed by the PDSS model.

2.1. Level Set Based Bias Field Correction (LSBF) Model

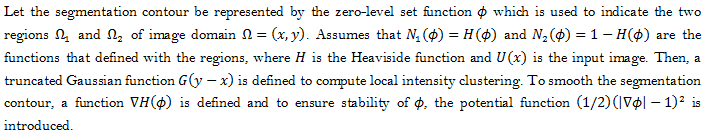

Li, et al. [12] suggested a new region-based image segmentation method that can handle intensity inhomogeneities in the segmentation. The local clustering criterion function for the intensities in each point's neighbourhood is defined as a result when the local intensity clustering property is derived. The neighbourhood centre is used to define an energy functional, which is then transformed into a level-set formulation. The level-set function is depicted as a partition of the image domain and a bias field that compensates for the intensity inhomogeneity.

Thus, the energy function of the LSBF model is then defined by the following Equation 2:

Where  is a constant and represented as vector k  and f is the bias field. The Equation 2 is minimized iteratively using a gradient descent approach.  The LSBF was invented for segmenting whole objects, which is inapplicable in the case of selective segmentation.

2.2. Primal Dual Selective Segmentation (PDSS) Model

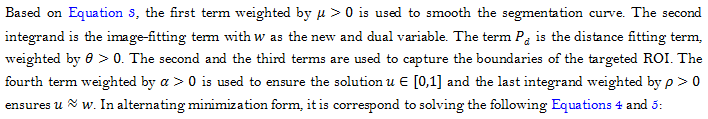

Jumaat and Chen [11] proposed a new minimization problem in the primal-dual framework, termed the Primal Dual Selective Segmentation (PDSS) model, allowing them to obtain a fast solution. The model is expressed as the following Equation 3:

In Equation 4, the highly computational term  is dropped, while Equation 5 will produce an analytical solution. Consequently, the model is less complex and less sensitive to parameter choices.

While this model is capable of selectively segmenting a particular ROI, the PDSS model may deliver unsatisfactory results in segmenting images with intensity inhomogeneity. This is mainly because the model assumes that the input image is homogeneous. Hence, in this study, the new proposed SSBF model is formulated to solve the drawbacks of the existing models.

3. THE PROPOSED MODEL

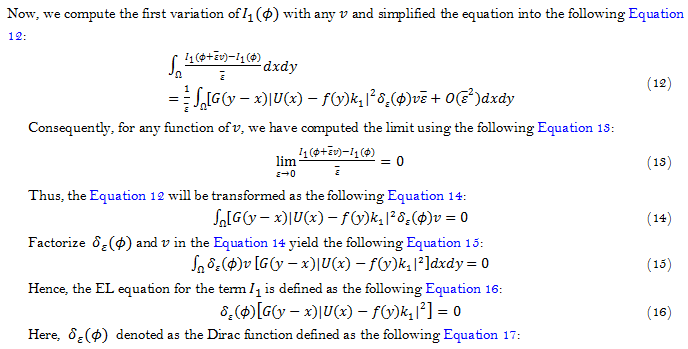

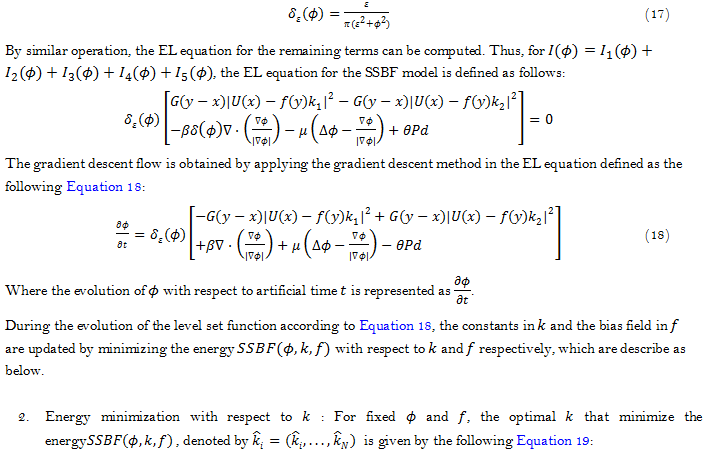

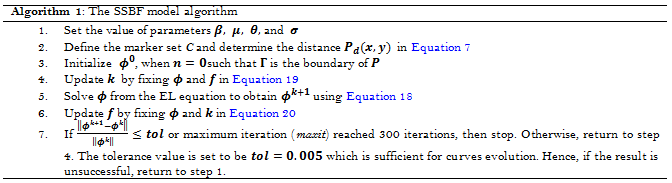

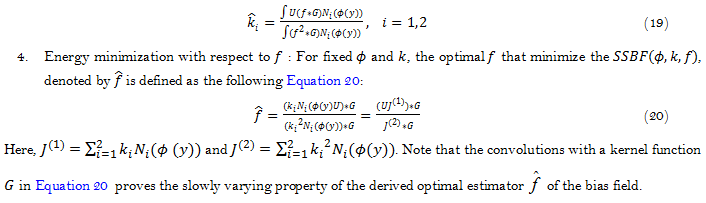

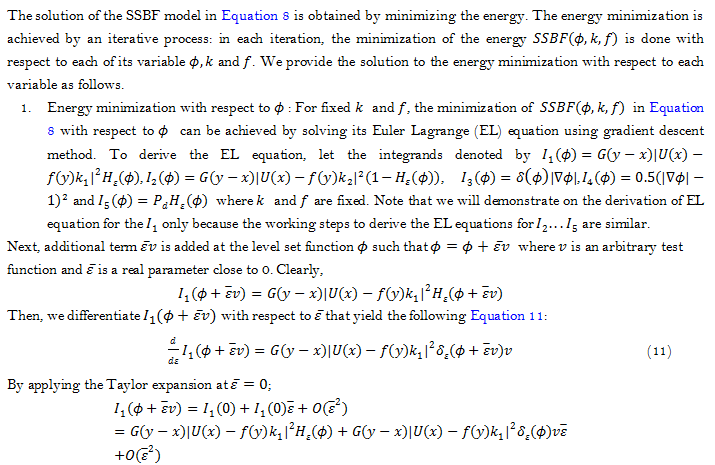

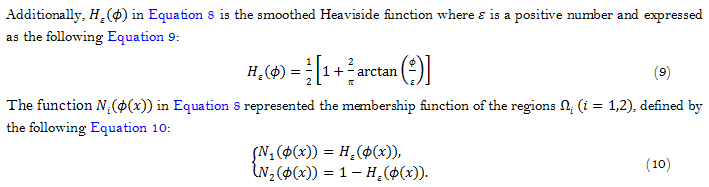

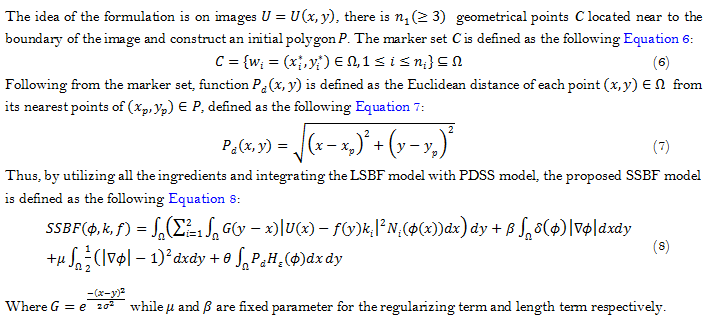

The implementation of our proposed model is summarized in Algorithm 1. This algorithm shows the steps involved to implement the SSBF model to compute the solution using MATLAB software.

4. EXPERIMENTAL RESULTS

Various experiments were conducted to highlight the strengths and limitations of the proposed model. Firstly, the proposed model, called the SSBF model, was compared with the LSBF model by Li, et al. [12] in dealing with images with intensity inhomogeneity. Then, we also compared our SSBF model with the popular selective segmentation model, which is the IIS model [14]. Next, we compared the SSBF model with the competing PDSS model by Jumaat and Chen [11]. Lastly, parameter sensitivity analysis was performed on the SSBF model, and the limitations of the proposed model were highlighted.

The performance of all models was evaluated by the Dice similarity metric (DSC) and Jaccard similarity metric (JSC), also known as the Intersection over Union (IOU) coefficient, in the range of  as follows:

Where the values of TP (true positive), FP (false positive), TN (true positive), and FN (false negative) are determined using the following Table 1:

Image type	Segmented image
Ground truth image	Binary digit	1	0
	1	TP	FN
	0	FP	TN

According to Table 1, the number of positive categories that are accurately categorized as 1 for both segmented and ground truth pictures with the same pixel value is known as TP (true positive). False positives (FP) are negative categories that are mistakenly labelled as positive in segmented pictures, where the pixel value is always 1. Next, FN (false negative) indicates the segmentation model mistakenly identified the segmented region as a negative category, which is 0, while TN (true negative) indicates the segmentation model correctly identified the negative category [15]. In the following experiments, the dataset with ground truth was provided by Lankton and Tannenbaum [16]; Martin, et al. [17]; Chen [18]; Li, et al. [19]; Moreira, et al. [20]; Rodtook, et al. [21]; Ismahan [22] and Codella, et al. [23].

4.1. Experiment 1: Comparison of the SSBF Model with the LSBF Model

In this experiment, we compared our proposed SSBF model with the LSBF model in order to verify the capability of the SSBF model for selectively segmenting regions of interest. We acknowledge that the initial contour for images used in both models was the same, and the size of the test images was resized to be  pixels. We claimed that the LSBF model is a global segmentation model that is incapable of selectively segmenting a targeted object, which is unfair to compare with our proposed selective segmentation model. However, this experiment was constructed to rectify this claim. We illustrate the outcomes of the segmentation in Figure 1 as follows:

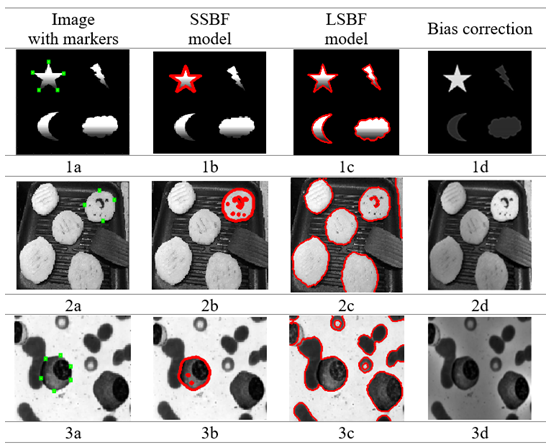

Figure 1 demonstrates the segmentation results between the SSBF model (1b-3b) and the LSBF model (1c-3c) in the second and third columns, respectively, with bias correction images in the last column (1d-3d) based on the input images in the first column. The targeted object is indicated by the green marker in the given images (1a-3a).

In this experiment, both models were able to produce the bias correction images. Bias correction images help to homogenize the intensities of the tested images to assist in obtaining accurate segmentation results. As we can observe from Figure 1, the SSBF model is able to selectively segment the targeted object. However, the LSBF is over segmented and fails to segment the targeted object; instead, the model tries to segment every object in the given input image. Table 2 shows the comparison of the accuracy of the segmentation results between the SSBF model and the LSBF model.

Images	JSC		DSC
	SSBF	LSBF	SSBF	LSBF
1a	0.860	0.207	0.925	0.343
2a	0.897	0.149	0.945	0.259
3a	0.845	0.200	0.916	0.333
Average	0.867	0.185	0.929	0.312

Table 2 depicts the JSC and DSC values between the SSBF model and the LSBF model. We can infer that, due to the global segmentation property of LSBF, the accuracy of the segmentation results was affected. As we can see from the table, the average values of JSC and DSC coefficients for the LSBF model were lower than those for the SSBF models. Meanwhile, the SSBF model’s average accuracy values surpassed those of the LSBF model, whose average accuracy values are close to 1, indicating good segmentation performance.

4.2. Experiment 2: Comparison of the SSBF Model with the IIS Model

The IIS model by Nguyen, et al. [14] was acknowledged for its reliability in segmenting a particular object in an image [24]. Therefore, in Experiment 2, we are interested in comparing the accuracy of the popular selective segmentation model, the IIS model, with our proposed SSBF model. There were two synthetic images with different levels of intensity inhomogeneity used in this experiment. All test images have dimensions of  pixels. The segmentation results of the SSBF model and the IIS model on inhomogeneous intensities are presented in Figure 2 as follows:

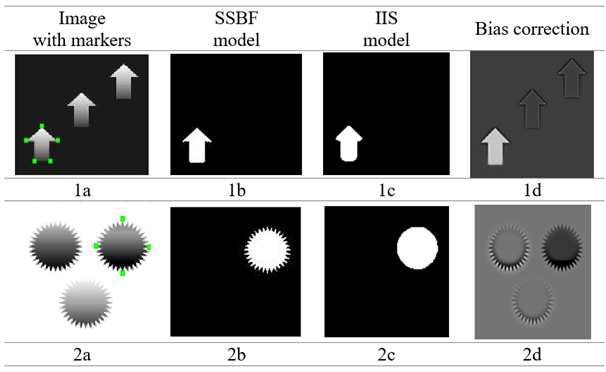

Based on Figure 2, the segmentation results were in binary form to allow for a fair comparison of the outcomes of both models. The IIS model was recognized as having the most promising results when segmenting objects with intensity inhomogeneity. However, the IIS model has a few drawbacks, such as the fact that it cannot segment images with fine structure. As shown in the figure above, our SSBF model exceeded the IIS model. For both images, the IIS model was unable to neatly segment the irregular region of the targeted object. As a result, the IIS model is unable to partition the targeted object into sophisticated shapes. We also presented the accuracy table of the JSC and DSC coefficients in Table 3.

Image	JSC		DSC
	SSBF	IIS	SSBF	IIS
1a	0.930	0.900	0.964	0.950
2a	0.873	0.870	0.932	0.930
Average	0.902	0.885	0.948	0.940

The average of JSC and DSC values was slightly higher than the IIS model, as indicated in Table 3. Hence, we may conclude that, in terms of segmentation accuracy, the SSBF model is comparable to the IIS model.

4.3. Experiment 3: Comparison of the SSBF Model with the PDSS Model

Next, we compared the proposed SSBF model against the competitor model, the PDSS model, to test their capabilities. All test images have dimensions of  pixels. We set the tolerance (tol) and maximum iteration   to 0.005 and 300 respectively, as the stopping criteria. For parameter setting, the range for  and were  and  respectively, where the values were, varies depending on the test images. In this experiment, we test the performance of the PDSS model and the SSBF model in segmenting images with intensity inhomogeneity, as demonstrated in Figure 3.

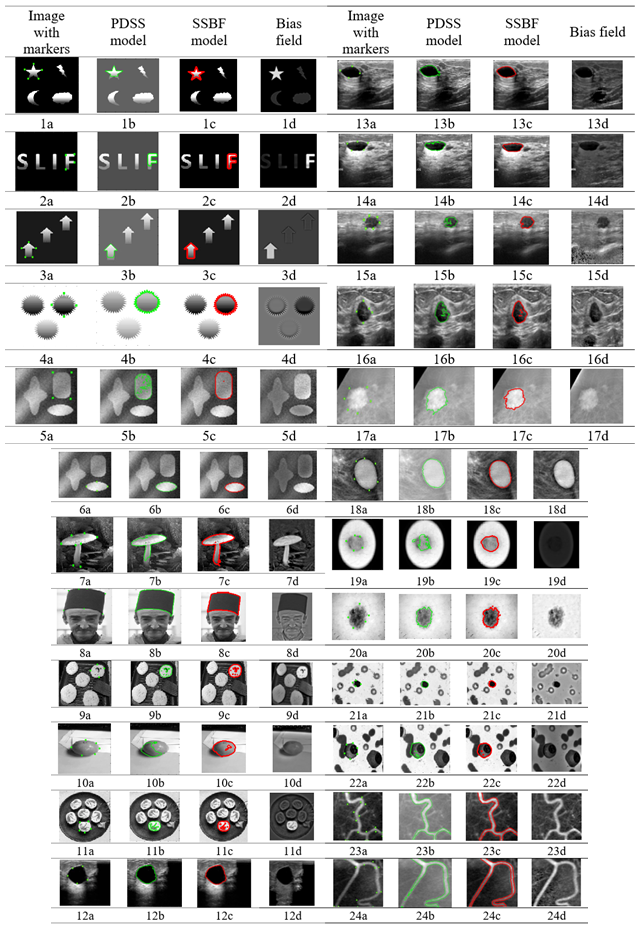

Figure 3 demonstrates the test image with markers used in the first and fifth columns (1a-24a). The second and sixth columns (1b-24b) showed the results delivered by the PDSS model, while the third and seventh columns (1c-24c) demonstrated the results delivered by the SSBF model. The bias-corrected results produced by our SSBF model are shown in the last column (1d-24d). Bias correction images were used in this study to gain an accurate result. As shown in the figure above, our SSBF model was able to segment all the targeted objects highlighted with green markers compared to the PDSS model.

As stated in the previous chapter, the PDSS model was the reformulated version of the CDSS model by Spencer and Chen [10]. The method was defined as an unconstrained minimization problem and significantly uses the Euclidean distance function in its function, which helps to selectively segment the targeted object in the given images. However, the PDSS model is unable to segment intensity inhomogeneity images. For example, in Figure 3 (7b), the PDSS model is unable to segment appropriately due to severe intensity inhomogeneity in the given image. Even though the PDSS model uses the Euclidean distance function to find a specific object, it does not include local intensity information or bias field correction, which are important for separating images with different levels of brightness.

In addition to visual observation, the accuracy of the segmentation results for both models is presented in Table 4.

Image	JSC		DSC
	PDSS	SSBF	PDSS	SSBF
1	0.722	0.860	0.838	0.925
2	0.733	0.869	0.846	0.930
3	0.773	0.930	0.872	0.964
4	0.836	0.873	0.911	0.932
5	0.839	0.988	0.912	0.994
6	0.933	0.964	0.966	0.982
7	0.831	0.974	0.907	0.987
8	0.915	0.928	0.956	0.963
9	0.826	0.897	0.905	0.945
10	0.403	0.846	0.574	0.917
11	0.579	0.716	0.733	0.835
12	0.886	0.934	0.939	0.965
13	0.842	0.878	0.914	0.935
14	0.789	0.803	0.882	0.891
15	0.576	0.776	0.731	0.874
16	0.598	0.735	0.749	0.848
17	0.806	0.809	0.892	0.894
18	0.869	0.898	0.930	0.946
19	0.455	0.843	0.626	0.915
20	0.632	0.677	0.774	0.808
21	0.667	0.677	0.799	0.807
22	0.828	0.845	0.906	0.916
23	0.781	0.885	0.877	0.939
24	0.700	0.787	0.823	0.881
Average	0.806	0.914	0.891	0.955

Table 4 illustrates the average of JSC and DSC values for the PDSS and SSBF models. The study findings indicate that the mean accuracy values of Jaccard similarity coefficient (JSC) and Dice similarity coefficient (DSC) for the SSBF model in columns three and five were 0.914 and 0.955, respectively. These values were observed to be 13.4% and 7.2% higher than the corresponding values obtained for the PDSS models, respectively. Hence, we can infer that the SSBF model is capable of segmenting the targeted object with intensity inhomogeneity better than the PDSS model in synthetic images.

4.4. Experiment 4: Parameter Sensitivity Analysis

In Experiment 4, the parameter of the SSBF model shall be tested for its sensitivity. We focus on two parameters: the area parameter  and the standard deviation parameter . These parameters must be manually adjusted through trial and error to achieve relevant and successful segmentation results.

4.4.1. Results of the SSBF Model with Different Values of Parameter

The value of the area parameter  is crucial to enclosing the region of interest since the SSBF model is a selective segmentation model. As indicated in the preceding experiment, our proposed SSBF model chooses an object to be segmented by using the initial green marker set as a foreground marker. It is significant to test whether the SSBF model is sensitive to the area parameter  to enclose the region of interest.  The segmentation results with different parameter   values are shown in Figure 4.

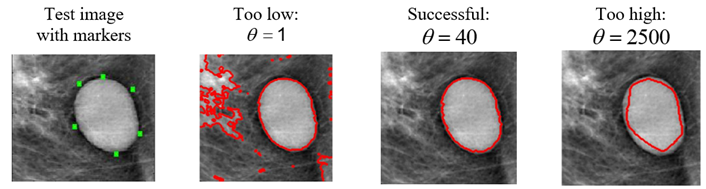

Figure 4 illustrates the outcome of the segmentation results using different values parameter . It shows that when the parameter is too low, the result of the segmented region will be over-segmented resulting in difficulties in interpreting the important information in the image [3]. As we can see, the background tissue of the mammogram image was segmented too due to the small parameter  used. Meanwhile, if the parameter  was too large (=2500), the segmentation of the targeted object would result in an undesirable polygon. Therefore, the optimal value of parameter for this test image is = 40 as shown in Figure 4. According to Jumaat and Chen [25] and Jumaat and Chen [26], the parameter  must be regulated in order to obtain a successful result from segmentation.

4.4.2. Results of the SSBF Model with Different Values of Parameter

The standard deviation parameter  plays an important role in the SSBF model. This parameter  will control the size of the neighbourhood in the SSBF formulation. Figure 5 demonstrates the segmentation results with different values of the parameter .

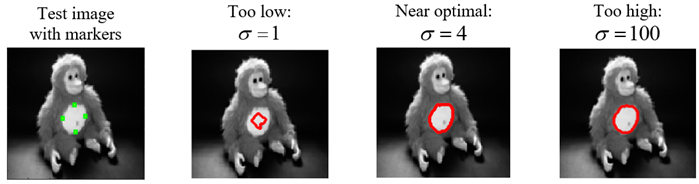

According to Figure 5, when a near-optimal value of the parameter  was used, a better segmentation result was achieved. However, it resulted in unsatisfactory segmentation results if the value of the parameter  was too small. Note that even if the value of the parameter  was set to a high value, a better segmentation result was obtained. Table 5 shows the accuracy and efficiency of the SSBF model with different values of parameter  for segmenting the Monkey’s belly.

Value of parameter	JSC	DSC	Time
1	0.226	0.368	15.743
4	0.974	0.987	17.800
100	0.945	0.972	73.820

From Table 5, when =100, the JSC and DSC values were slightly decreased compared to= 4 . However, it still produces a better result, which is near to the value 1. The average processing time when =100 was 73.820 seconds. It was four times slower than = 4which 17.800 seconds. By choosing an unsuitable value of the parameter, it will lead to unfavourable outcomes. Hence, we may deduce that to achieve better segmentation results, optimum value for the parameter.

4.5. Limitation of the SSBF Model Compared to the PDSS Model

In this section, we compared the processing time for the proposed SSBF model with the competing selective segmentation model, the PDSS model only. We remarked that since the software the authors [14] provided to implement the IIS model does not have any built-in functions or tools for recording time processing, we were unable to compare the efficiency of the SSBF with the IIS model. Another model that is not considered for the efficiency test is the LSBF model. The LSBF model is a global segmentation type where all the segmentation results fail, as indicated in Experiment 1, so efficiency comparisons with the LSBF model are not significant and were not conducted as well.

Even though the SSBF model outperformed the PDSS model in terms of accuracy, the SSBF model has its limitations in this study. The drawback of this SSBF model is its efficiency; it takes a longer time to process the segmented images. The average processing time in Experiment 3 for the PDSS model is 16.5 seconds, while the proposed SSBF model takes 21.2 seconds. This indicates that the average time taken for the SSBF model to generate the segmentation results was about 5 seconds slower than the PDSS model. This is due to the implementation of bias correction in the SSBF model, which increases the computational complexity of the model and results in slow segmentation processing time.

In addition, the limitations of the SSBF model can be seen in the parameter selection approach. In this model, the parameters  and  were chosen by trial and error to achieve good segmentation results, which is difficult and time-consuming. is required.

5. CONCLUSION

This study employs a selective segmentation model to effectively partition the desired objects inside an image exhibiting intensity inhomogeneity. It was noted that the segmentation tasks posed challenges when applied to intensity inhomogeneity images. Hence, a novel model known as the Selective Segmentation with Bias Field Correction (SSBF) model has been devised. The SSBF model is derived by integrating the PDSS model with the LSBF model. In the new proposed model, the equation involved in minimizing the energy functional of the SSBF model, which is the EL equation, is constructed. Along with that, using the MATLAB software, we have implemented the algorithms. Numerical experiments conducted show that our new model records the highest average accuracy of segmentation compared to the competing models. In addition, the experimental results show that appropriate values of  and  are needed to acquire better segmentation results as the SSBF model is sensitive to parameter values. The parameters were set manually by trial and error. As a result, we can conclude that the SSBF model successfully segmented the region of interest with good segmentation accuracy in images with intensity inhomogeneity. Nevertheless, the SSBF model has a limitation in this study. As expected, the drawback of the SSBF model is its efficiency. According to the experiment conducted, the SSBF model takes longer to process compared to the PDSS model. In the future, the SSBF model can be extended to a 3-D formulation.
