Abstract

A variational model was used to extract or segment the breast ultrasound (BUS) image boundary in order to find a closed curve line of the abnormality region for further diagnosis. A recent selective variational model, termed the Convex Distance Selective Segmentation (CDSS) model, is effective at segmenting a specific image object. However, the CDSS model has difficulty segmenting noisy images. Unavoidable noise in BUS pictures leads to poor segmentation, as is widely recognized. The objective of this work is to propose a reformulation of the Convex Distance Selective Segmentation (CDSS) model for the purpose of segmenting BUS pictures. Consideration of four distinct image Denoising algorithms—Gaussian filter, Median filter, Wiener filter, and Rudin-Osher-Fatemi (ROF) algorithm—as the new fitting terms in the CDSS model leads to four variants of modified CDSS models called Modified CDSS based on Gaussian filter (MCDSSG), Modified CDSS based on Median filter (MCDSSM), Modified CDSS based on Wiener filter (MCDSSW) and Modified CDSS based on ROF (MCDSSROF). To solve the modified models, we first derived the associate Euler-Lagrange equation and solved it in Matrix Laboratory (MATLAB) software. Experiments demonstrated that the proposed MCDSSROF model based on the ROF denoising algorithm provided the highest average of Peak-Signal-To-Noise-Ratio (PSNR), Dice, and Jaccard Similarity Coefficients, indicating the highest denoising quality and segmentation accuracy in comparison to other models.

Keywords: Active contour, Breast ultrasound images, Image processing, Selective image segmentation, Variational level set.

Received: 5 July 2023 / Revised: 16 August 2023/ Accepted: 7 September 2023/ Published: 15 September 2023

Contribution/ Originality

Since noise in ultrasound images of the breast can't be avoided and makes it hard to find abnormal areas, new models are made by combining the current variational segmentation model with techniques for removing noise from images. An accurate segmentation result may help the radiologist analyze the abnormality for further diagnosis.

1. INTRODUCTION

Breast cancer is the most common cancer among women in developing countries, contributing to the second-highest number of deaths. Breast cancer is predicted to affect one out of every nine women in their lifetime [1]. Breast cancer must be detected and diagnosed early to control the disease and extend life expectancy. One of the common screening tools to detect breast cancer is ultrasound imaging. Ultrasound, also known as ultrasonography, is a technology that uses high-frequency sound waves to produce images of the inside of the body. In comparison to alternative imaging modalities, ultrasonic imaging is characterized by its non-invasive nature, absence of radiation exposure, and cost-effectiveness [2]. However, ultrasound images do have their disadvantages, such as the existence of noise [3]. This issue can lead to a misdiagnosis of the disease. To interpret medical images with higher accuracy, it is important to improve the image quality by performing image processing such as image segmentation and image denoising.

Image segmentation is the technique of partitioning an image into several segments [4]. The use of image segmentation for medical purposes is to extract the boundary of a targeted region. The extracted region will be used to analyze the types of diseases, such as cancer [5] and breast abnormalities [6-10] . One of the main obstacles in medical image segmentation is low-contrast objects [11]. In addition, extremely small objects are hard to distinguish from normal tissue [12]. Segmenting delicate areas is complex and time-consuming; nonetheless, it is possible with advances in segmentation algorithms [13]. Image segmentation allows for the direct analysis of individual items inside a picture as opposed to examining the image as a whole. This approach significantly reduces the time required for the analysis process. The process of image segmentation is accomplished by the use of several models, which may be classified into two distinct categories: non-variational and variational techniques.

The non-variational model is a category in which image segmentation processes are mostly carried out using a machine learning-based approach. Convolutional Neural Networks [14] and U-Net [15] are examples of methods used. Studies have demonstrated the efficacy of these machine learning-based techniques in non-variational image segmentation [16]. The machine learning-based technique has certain limitations, though, including being unduly dependent on the volume of data and not knowing how to segment images [17]. To get satisfactory results, a lot of data (pictures), including the label, and good processing equipment are needed; however, these things aren't always accessible. Region-growing and thresholding are two more non-machine learning-based techniques for non-variational picture segmentation. Due to their ability to segment any features or objects (including image noise) in an image, the region-growing and thresholding approaches may yield unsatisfactory results for abnormal regions with low contrast, noisy images, and close to normal tissue.

 On the other hand, variational image processing views an image as a function whose sampling corresponds to the discrete matrix form of a specific picture. While a three-dimensional formulation is presented in Jumaat and Chen [18], other works on variational image segmentation algorithms in two-dimensional formulations have demonstrated that they are efficient and able to give high-quality imaging processing capabilities [19-22] . Global segmentation and selective segmentation are the two categories into which the variational model may be separated. The process of segmenting every object in the image based on specific traits is called global segmentation. Low border contrast, noisy pictures, and tissue that is close to normal, however, may result in disappointing results from the approaches. In ultrasound image segmentation research, Fang, et al. [23] and Zhao, et al. [24] formulate active contours based on local and global statistical properties of ultrasound image information. The models are effective for images with intensity inhomogeneity. However, the models developed are for a global type of segmentation, where segmenting for a particular object in the image may fail.

Selective segmentation, on the other hand, is a method of segmenting a specific object within an image. This method has a lot of potential for integration with other applications such as histopathology image processing, handwritten recognition, intensity-inhomogeneous image processing, and biometric identification. Selective segmentation is potent for BUS images because the segmentation process can be implemented directly in the breast abnormality region. The selective model, namely Convex Distance Selective Segmentation (CDSS), was introduced by Spencer and Chen [22]. Another approach, which is an active contour model based on the neutrosophic theory, was introduced by Lotfollahi, et al. [25] for segmenting ultrasound images. It was found that the neutrosophic theory helps the active contour model achieve the property of selective segmentation. However, it is not guaranteed that the proposed model can segment the selected object due to the non-convexity of the formulation.  On the other hand, the CDSS model by Spencer and Chen [22], which is a convex and selective model, is more reliable in segmenting a particular object in an image. However, the CDSS model may be sensitive to image noise. Therefore, some modifications to the CDSS model are needed to enhance its segmentation accuracy. In this paper, we propose to modify the CDSS model by using image denoising techniques.

Image denoising is the process of reducing the amount of noise in an image while maintaining its true image [26]. In BUS images, noise is unavoidable. A study had shown that the Wiener filter is the best model to reduce speckle-type noise compared to other filters [27]. However, Wiener filtering will blur sharp edges [26]. Linear filtering methods such as Gaussian filtering are fast but do not maintain the denoised image's key characteristics, such as having the ability to over-smooth images with a lot of noise [28], while non-linear filters are able to preserve the important aspects of the denoised image, particularly the edges. Examples of non-linear filters that can be used to reduce noise are the Median filter and total variation (TV), specifically the seminal work by Rudin, et al. [29] termed as Rudin, Osher, and Fatemi (ROF) algorithm.

Different varieties of denoising techniques can produce distinct denoising outcomes, thereby influencing the accuracy of segmentation. This study will therefore propose new selective active contour models for effectively segmenting BUS images by reformulating the CDSS model with information from the image denoising techniques: the Gaussian filter, Median filter, Wiener filter, and Rudin-Osher-Fatemi algorithm to replace the fitting term in the CDSS model. By modifying the CDSS model, we anticipate enhancements in terms of image quality and segmentation precision.

2. REVIEW OF THE RELATED MODEL

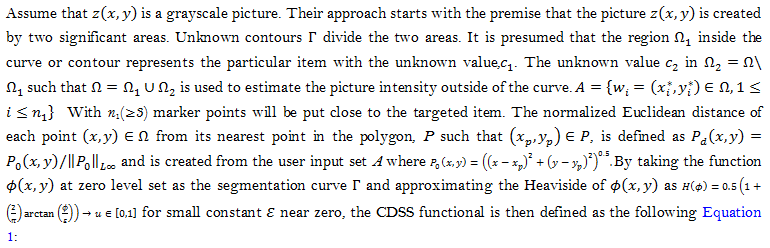

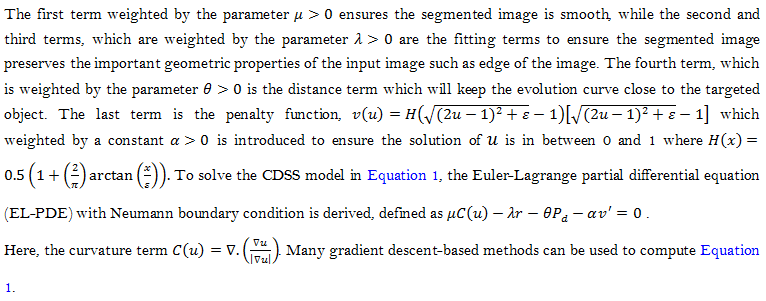

The  Convex Distance Selective Segmentation (CDSS) model was created by Spencer and Chen [22] based on the piecewise constant Chan-Vese functional in Chan and Vese [21]. Assume that  is a grayscale picture.

In Spencer and Chen [22] proposed using the Additive Operator Splitting scheme (AOS2) to solve the equation. Although the CDSS model is effective, it may be sensitive to image noise, resulting in an unsatisfactory result in segmenting BUS images. Hence, some modifications to the CDSS model are needed to enhance its segmentation accuracy. The next section demonstrates the methodology for modifying the CDSSmodel by using image denoising techniques.

3. METHODOLOGY

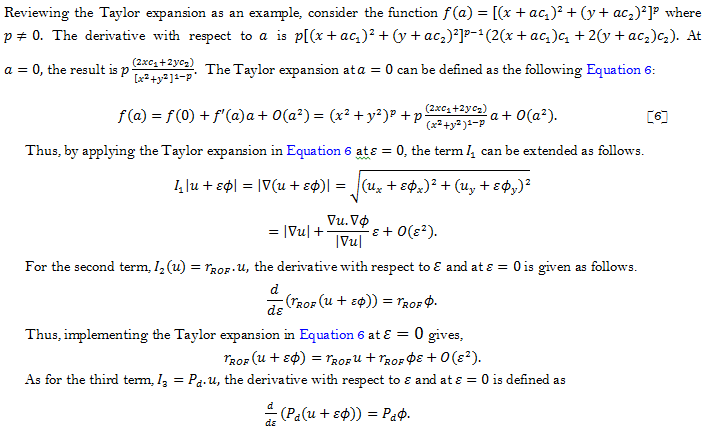

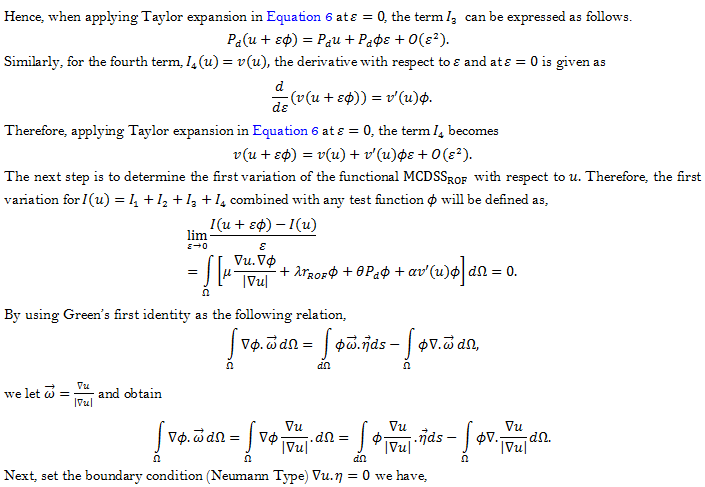

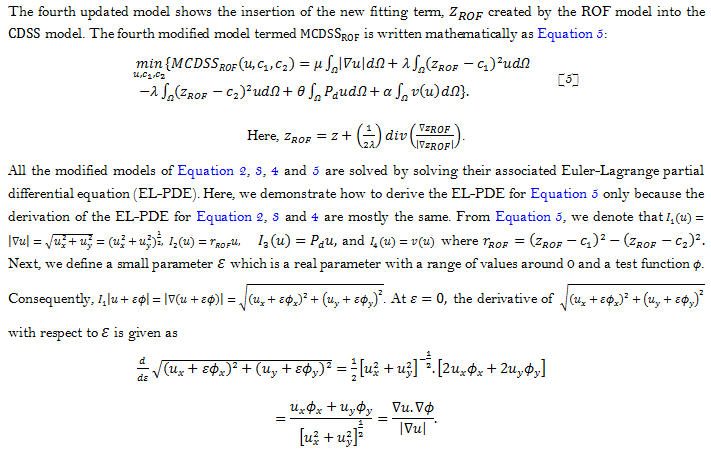

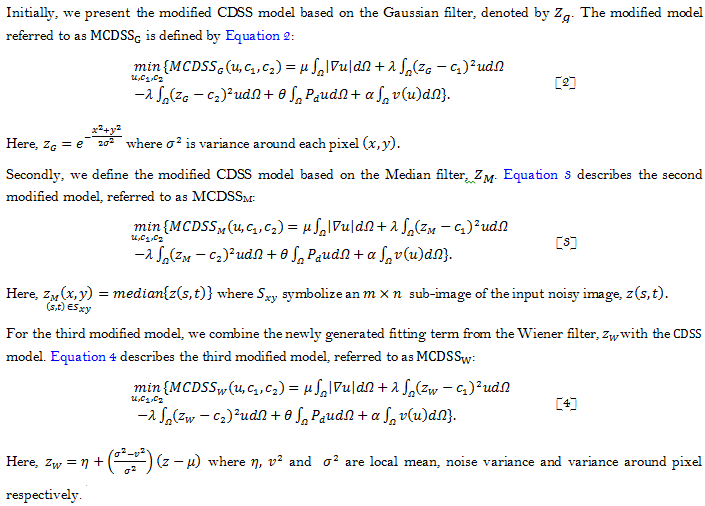

The CDSSmodel will be modified by substituting the fitting term  in Equation 1 with the information from the image denoising techniques, namely the Gaussian filter, Median filter, Wiener filter, and Rudin-Osher-Fatemi (ROF) algorithm.

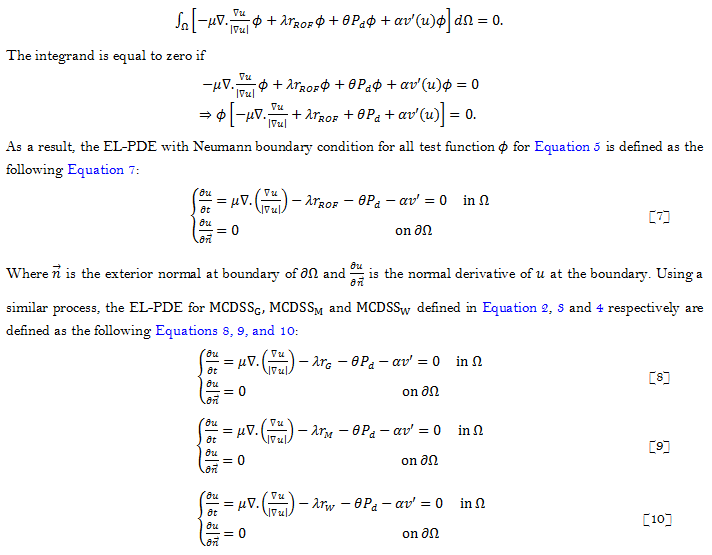

Equation 7, 8, 9 and 10 can be solved iteratively using many approaches, such as a finite difference scheme, an optimization multilevel scheme, or an operator splitting scheme. In this research, we applied the Additive Operator Splitting (AOS2) scheme, which is similar to the method used to solve the CDSS model by Spencer and Chen [22]. Particularly in Spencer and Chen [22] and Rodtook, et al. [30] the specifics of the AOS2 scheme are well explained.

3.1. Algorithm Steps for the Proposed Models

The algorithm below depicts the steps required to implement the new proposed models: MCDSSG, MCDSSM, MCDSSWandMCDSSROF. The solutions are computed using Matrix Laboratory (MATLAB) software. To stop the program automatically, two stopping criteria were utilized. Firstly, a tolerance value  was defined, and secondly, the maximum number of iterations, maxit=5000 was used. Next, we introduce Algorithm 1 as follows:

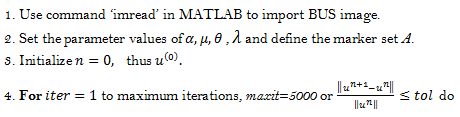

Algorithm for the proposed models:

Calculate Equation 8 for MCDSSG model or Equation 9 for MCDSSM model or Equation 10 for MCDSSW model or Equation 7 for MCDSSROF model.

4. RESULTS AND DISCUSSION

Twenty (20) BUS pictures from Rodtook, et al. [30] were used in this investigation. Experiment 1, Experiment 2, and Experiment 3 are three different sorts of experiments that were carried out. Using the CDSS model that is currently in use as well as the updated models MCDSSG, MCDSSM, MCDSSW, and MCDSSROF, we will segment 10 original BUS pictures in Experiment 1. Experiment 2 follows, showing how well each model performed in segmenting an additional 10 BUS pictures with additive noise. For both tests, the value of   are fixed for all problems.

The crucial parameter, which needs to be calibrated correctly, is . Depending on the BUS images, the value of  varies in this study from 0.5 to 2.3. In essence, a big value of   is required for an item that is near to tissue or picture noise, whereas a lower value of  is required for an object that is smooth. The final Experiment 3 shows how sensitive the suggested model is to the value of the parameter .

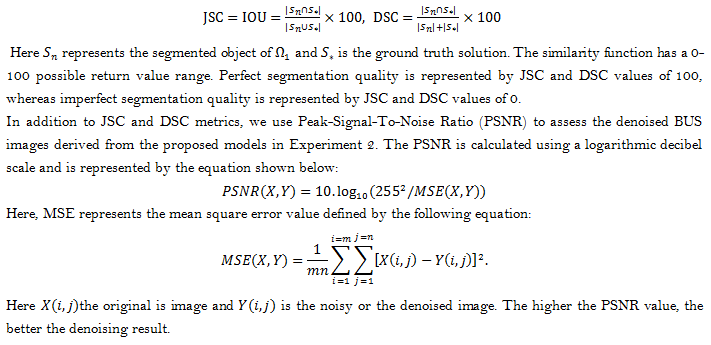

Using the Jaccard Similarity Coefficient (JSC), also known as the Intersection over Union (IOU) coefficient, and the Dice Similarity Coefficient (DSC), which is defined as follows, the segmentation accuracy of all models was assessed.

4.1. Experiment 1

In Experiment 1, 10 original BUS images will be used as shown in Figure 1. The size of the original BUS images is 128 x 128.

All images in Figure 1 will be segmented by the existing model, CDSS,and the modified models:MCDSSG, MCDSSM, MCDSSW and MCDSSROF. For example, we illustrate two samples of segmentation results of Problem 1 and Problem 2 of Experiment 1 in Figure 2.

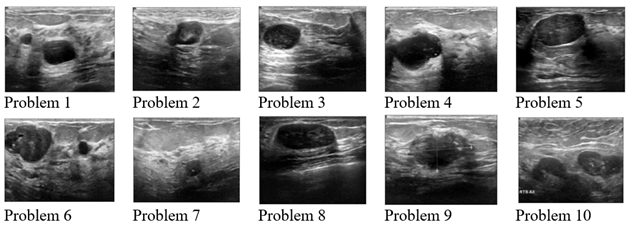

Figure 1. Test images in experiment 1.

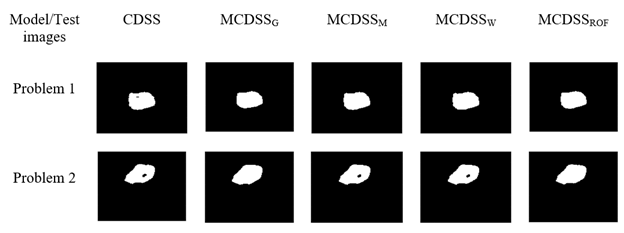

Figure 2. Segmentation results of problem 1 and 2 of experiment 1 for all models.

The example of segmentation results shown in Figure 2 is in the form of a binary representation. For Problem 1, all of the changed models can separate out the abnormal area, except for the original model, CDSS (second column), which also separates out the noisy part inside the targeted object. For Problem 2, only two modified models are successfully segmenting the abnormal lesion without segmenting the noisy part inside the object, which are the MCDSSG (third column) and MCDSSROF models (sixth column). To quantify segmentation accuracy, we compute the average of the JSC and DSC values for all test images, as shown in Figure 3.

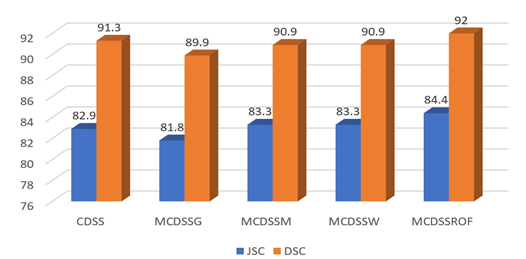

Figure 3. The Average JSC and DSC value for all test images in experiment 1.

Based on Figure 3, the MCDSSROF model scored the highest average of JSC = 84.4 and DSC = 92. The lowest JSC and DSC values are obtained by the MCDSSG model, which are 81.8 and 89.9, respectively. For the CDSS model, the MCDSSM model, and the MCDSSW model, the average JSC values are 82.9, 83.3, and 83.3, respectively, while the average DSC values are 91.3, 90.9, and 90.9, respectively.

Experiment 1 indicates that the ROF model is more suitable for reducing image noise while preserving the edge of the targeted object compared to other image denoising filters applied in this study. Consequently, this helps to increase segmentation accuracy. We noticed that the weakest performance of image denoising is demonstrated by the Gaussian filter in MCDSSG model, which results in poor segmentation quality. This is mainly because the Gaussian filter will reduce the image noise but, at the same time, give a blurry effect to the object edge.

4.2. Experiment2

To investigate the additive noise sensitivity of all models, we use another 10 BUS images corrupted with noise, as shown in Figure 4. The size of the BUS images is 128 x 128.

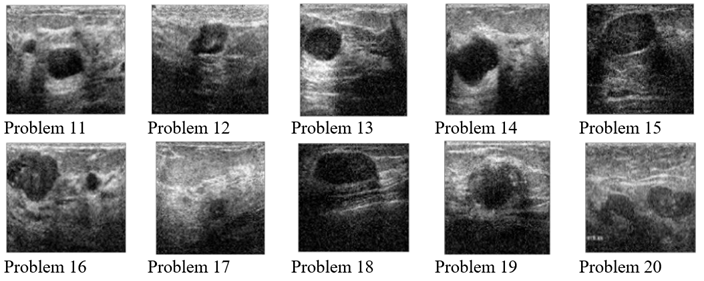

Figure 4. Test images in experiment 2.

We demonstrate two samples of segmentation results for Problems 11 and 12 using CDSS, MCDSSG, MCDSSM, MCDSSW,andMCDSSROF in Figure 5.

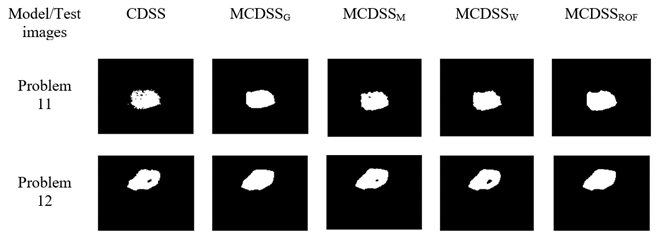

Figure 5. Segmentation results of problem 11 and 12 of experiment 2 for all models.

Figure 5 illustrates the segmentation results of Problems 11 and 12 of Experiment 2 in the form of a binary representation. The second row is the result for Problem 11, while the third row is the result for Problem 12. Based on Figure 5, all modified models can segment the abnormal lesion in Problem 11 without segmenting the noisy part inside the targeted object except for the CDSS and MCDSSM models, while for Problem 12, only MCDSSG and MCDSSROF are able to segment the targeted object without segmenting the artefact inside the targeted object. To evaluate the accuracy of denoised images and segmentation accuracy quantitatively, we compute the average of PSNR, JSC, and DSC values for all 10 corrupted BUS images, as shown in the following Figure 6.

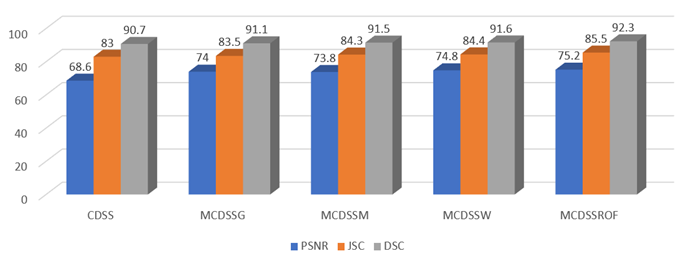

Figure 6. The average PSNR, JSC and DSC value for all test images in experiment 2.

Based on Figure 6, the average PSNR value for the MCDSSROF model is the highest, at 75.2. On the other hand, the CDSS model has the lowest value of PSNR=68.6. This is mainly because there is an insufficient denoising effect in the formulation of the CDSS model. The MCDSSW model obtained the second highest value of PSNR, with an average value of 74.8. The rank of MCDSSG and MCDSSM varies based on the distorted BUS images, with an average value of 74 and 73.8, respectively.

 The MCDSSROF model, on the other hand, has the highest segmentation accuracy when compared to the average JSC and DSC values of 85.5 and 92.3, respectively. For most of the input images, the MCDSSW model obtained the second-highest JSC and DSC values. The MCDSSM model typically has higher JSC and DSC values than the CDSS and MCDSSG models. So, according to the results of Experiment 2, the MCDSSROF model has the best denoised BUS images, which leads to the best segmentation of the corrupted BUS images.

Based on Experiments 1 and 2, the proposed MCDSSROF model is more recommended because it was able to segment the original and corrupted BUS images with the most accuracy compared to the other models used in this study.

4.3. Experiment3

The value of θ is important in order to optimize the accuracy of the segmentation. To demonstrate the effect of parameter θ on the segmentation result, we have chosen Problem 11 from Figure 4 to be segmented by the recommended MCDSSROF model . The following Figure 7 shows the segmentation results of the MCDSSROF model with different values of θ for Problem 11.

Figure 7 shows the segmentation results in binary (first row) and curve (second row) form for Problem 11 using the values of θ = 0.1, θ = 1.0, and θ = 6. By visual observation, the segmentation results clearly show that the BUS image is over-segmented when θ= 0.1, where MCDSSROF model unintentionally segments the healthy tissue surrounding the abnormal lesion. When θ = 6, the MCDSSROF model also produces an unsatisfactory result. A well-generated segment was delivered when θ = 1. These visual interpretations are supported by the values of JSC and DSC, where the JSC and DSC values for the MCDSSROF model with θ = 1 are higher than θ = 0.1 and θ = 6. In conclusion, if the value of θ is too small, the model will over-segment the abnormal lesion or the healthy tissues near the abnormal lesion, and if the value of θ is too high, the boundary line of the abnormal lesion will not be segmented properly by the model.

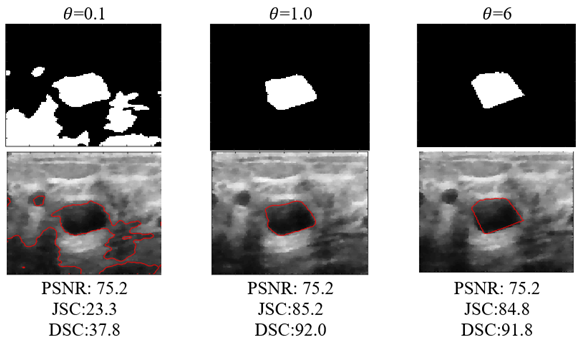

Figure 7. The segmentation results of problem 11 for MCDSSROF model with different values of θ.

The limitations of the MCDSSROF model can be seen in the parameter selection approach. In this model, the parameter θ was chosen by trial and error to achieve good segmentation results, which is difficult and time-consuming.

5. CONCLUSION

The focus of this research is to extract or segment the abnormality region in BUS images using a variational selective segmentation model. Due to the limitations of the existing model, CDSS,in handling images with noise, this research proposed four modified versions of the model: MCDSSG, MCDSSM, MCDSSW,andMCDSSROF. The modification involved adding the image denoising algorithm as the appropriate fitting term in the formulation.

To solve the modified models, we first provide the Euler-Lagrange partial differential equation for each modified model. There are numerous iterative methods for solving the Euler-Lagrange partial differential equations. In this study, we have suggested solving the problems using Additive Operator Splitting (AOS2) scheme. Two experiments were conducted in order to compare the performances of the original and modified models. The first experiment was to segment the original BUS images, while the second experiment was to segment the corrupted BUS image with additive noise. The numerical performances of the original and modified models were analyzed using PSNR, JSC, and DSC. The PSNR was used to evaluate the quality of the denoised BUS images, while the JSC and DSC were used to evaluate the segmentation accuracy.

From the two experiments carried out, the JSC and DSC values showed that the accuracy of segmentation was better in most of the modified models than in the original model, CDSS, except for MCDSSG. The quality of the denoised BUS image, as indicated by PSNR value from all modified models, is higher than the original BUS images. The lowest quality of the BUS image was obtained by the CDSS model. Results demonstrated that the MCDSSROF produced a better quality denoised BUS image, and consequently, the segmentation accuracy was higher compared to other models. The final experiment demonstrated the sensitivity of the recommended MCDSSROF model towards different values of parameter θ where an appropriate value of θ is needed to acquire a better segmentation result. In the future, the MCDSSROF model can be extended to the color domain and 3-D formulation.

Funding: This study received no specific financial support.
Institutional Review Board Statement: Not applicable.
Transparency: The authors state that the manuscript is honest, truthful, and transparent, that no key aspects of the investigation have been omitted, and that any differences from the study as planned have been clarified. This study followed all writing ethics.

Competing Interests: The authors declare that they have no competing interests.

Authors’ Contributions: Conceptualization and methodology, N.B. and A.K.J.; formal analysis, N.B. and N.I; resources, A.K.J.; writing, review and editing, N.B., N.I., A.K.J., M.A.M., and M.F.L.; supervision, N.I., A.K.J., M.A.M., and M.F.L. The author declares that there are no conflicts of interests regarding the publication of this paper.

Acknowledgement: The APC was funded by Pembiayaan Yuran Penerbitan Artikel, Tabung Dana Kecemerlangan Pendidikan, and Universiti Teknologi MARA, Malaysia.
