1. INTRODUCTION

1.1. Background and Purpose of Study

Global warming and climate change1 constitute the major environmental degradation challenge facing human societies currently. Its symptoms in Earth’s ecosystems have been intensely studied and extensively documented in the climate literature. This paper explores the literature in order to identify and analyse the symptoms of global warming and climate change in ecosystems. Specifically, it examines how climate change degrades ecosystems, with particular focus on the response of inland freshwater ecosystems to climate change, drawing empirical illustration from the degradation of Lake Chad, an inland freshwater lake ecosystem embedded in the West African Sahel. Lake Chad’s degradation clearly illustrates the interaction between the climate factor and non-climate factors in the degradation of ecosystems. The  paper explores six theories/hypotheses to attempt to explain Lake Chad’s experience: (i) natural climate variation; (ii) anthropogenic climate change compounded the effects of the Sahel drought to undermine the regenerative capability of Lake Chad’s hydrologic cycle; (iii) unregulated exploitation of Lake Chad’s hydrologic system overdrew the regenerative potential of the hydrologic cycle; (iv) high rates of deforestation in the tropical rainforest belt of West-Central Africa shifted the rainbelt southwards; (v) pressure from growing human and livestock populations exceeded the carrying capacity of Lake Chad’s ecosystem; and (vi) anthropogenic aerosols emissions in the northern hemisphere caused regional climate change that shifted the tropical rain belt southwards with steady decrease in precipitation in the Sahel. A careful survey of evidence shows that: First, there is no single-cause explanation for the degradation of Lake Chad; rather, the influence of anthropogenic climate change compounded those from non-climate factors – e.g. deforestation, unregulated exploitation of Lake’s resources, etc. to degrade Lake; Second, Lake Chad’s experience, quite exceptional though, tallies with the experience of other freshwater inland lakes.

Africa is endowed with some 677 inland freshwater lakes holding about 30, 000 km3 of freshwater and yielding 1.4 million km3 of freshwater annually. As shall be shown, all major African inland lakes – e.g. Lakes Victoria, Tanganyika, Malawi, etc. – have been affected by climate change one way or the other. However, none seems to have been so degraded as Lake Chad. The 1950s and 1960s saw record levels in the size of Lake Chad; the 1970s onwards, with the unraveling of the current climate change dynamics, saw severe contraction of the surface area of the lake “changing its character to swampy delta at the mouth of the Chari River…” (Evans, http://www.fao.org). It seems, then, that climate change compounded the effects of preexisting Sahel drought to speed up the degradation of Lake Chad.

Figure 1 dramatizes the shrinking of Lake Chad’s surface area: within a space of five decades (1963–2013) 90% of the lake’s surface area disappeared. Quite an exceptional ecological degradation experience aptly described by the UNEP as an “ecological catastrophe”2, Lake Chad’s experience is surpassed only by that of the Aral Sea in South-Central Russia3. However, it tallies with the experiences of inland lakes in arid regions (e.g. Bai, et al. [1]).

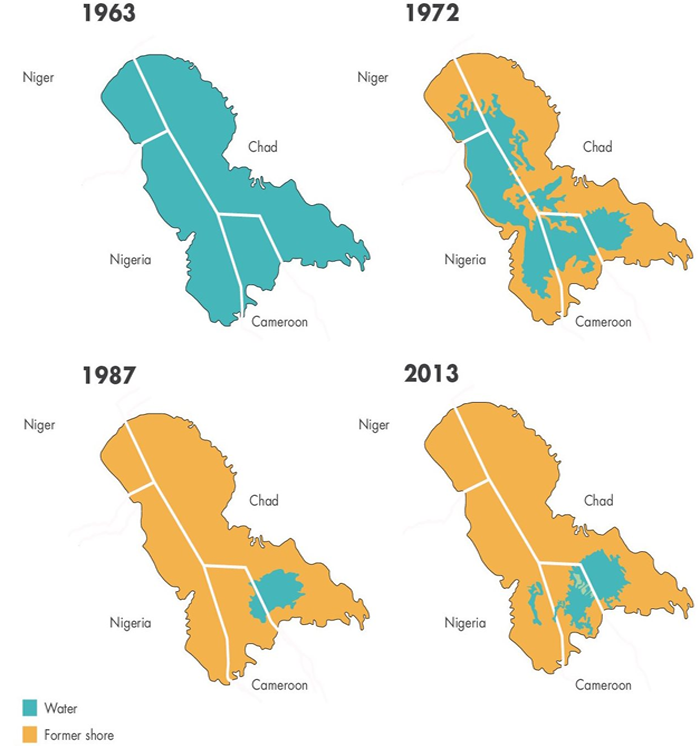

Figure-1. Changing Surface Area of Lake Chad, 1963 – 2013

Source: Nikoulima [2]The literature, however, contains similar dramatic changes in many ecosystems: e.g., melting of mountain show caps and ice covers;4 retreating polar glaciers;5 warming oceans leading to bleaching of coral reefs and sea level rise (SLR);6 destruction of the ozone layer (ozonosphere), which exposes Earth’s biosphere to the harmful effects of ultraviolet (UV) solar radiation,7 etc. So, there is nothing particularly unique in the Lake Chad experience, if considered in the global context of current climate-change induced changes in ecosystems properties. However, there is still need to explore the following question. Is the shrinking of Lake Chad just a result of climate change or are non-climate forces involved?

1.2. Structure of the Paper

The remaining part of the paper is structured into four sections; as follows. Section 2 links climate change and ecosystems functioning, and shows how climate change influences the latter. Section 3 highlights salient features of the Sahel climate in which Lake Chad is embedded. Section 4 deals with a case study of the Lake Chad ecosystem proper, focusing on one of the Lake’s key response variable to climate change, namely, long-run changes in water levels and surface area. Section 5 sketches the symptoms of climate change in top – 4 sub-Saharan African inland freshwater lakes (Lakes Victoria, Tanganyika, Malawi, and Lake Chad itself) in order to put Lake Chad’s experience in a comparative perspective. Section 6 concludes the paper.

2. CLIMATE CHANGE AND ECOSYSTEMS DEGRADATION: SOME THEORETICAL ISSUES

2.1. Anthropogenic Climate Change

This, as already noted, describes observed long-term change over the centuries in the elements of climate, most important temperature and precipitation, caused by human-induced concentrations of green-house gases (GHGs) in Earth’s atmosphere. This constitutes the major environmental degradation problem currently facing the global community. Two relevant facts are worth noting in current climate change. First, it is caused largely by human activities – so-called anthropogenic footprint of climate change, whereby combustion of fossil fuels (coal, petroleum products, natural gas) to drive economic development, deforestation, livestock production, etc. emit massive volumes of GHGs into the atmosphere.8 Specifically, huge build-ups of human-induced GHGs beyond the assimilation capacities of Earth’s atmosphere as a natural ‘waste sink’ have transformed the chemical composition of Earth’s atmosphere leading to fundamental changes in global temperatures and rainfall patterns, which, in turn, have destabilized ecosystems functioning, in some cases leading to irreversible changes in their regenerative potentials.

Table-1. Historical and Current Atmospheric GHG Concentrations

Notes:    n.a. = not available

a          ppb = parts per billion. When natural scientists analyse atmosphere GHG concentrations they use the term ppb or ppm (parts per million), which is a stock or mass phenomenon.

b          Aerosols have cooling effect in contrast to other GHGs which head up the atmosphere.

Second, it is occurring at a pace hitherto not experienced in any part of the world. Scientific evidence shows that Earth’s average surface temperatures have warmed up as much as by 6oC (42.8oF) over the past century, 60% of this occurring in the 1970s onwards, and is projected to rise further if no effective measures were taken to reduce significantly GHG atmospheric emissions.

Table 1 shows that atmospheric carbon dioxide concentrations were stable at 270-288 parts per billion (ppb),9 the ‘natural bound’, for a long time prior to the European Industrial Revolution of the 1700s and 1800s. Thereafter, they moved beyond the ‘natural bound’ to current levels put variously at 395 and 400 ppb. It may be relevant to note to conclude this theme, that scientists had speculated on global warming till the late 1900s, but it was not until the 1980s, when the idea of global warming evolved to become “one of the biggest arguments of our time” [6]. The 19th century Swedish physicist Svante Arrhennius pioneered the theory of the link between human combustion of carbon dioxide emitting fossil fuels and rising global surface temperatures which he described as the ‘Greenhouse effect’ [7]. Although Arrhennius’s idea remained in circulation until the 1960s, most scientists had dismissed it as implausible, believing, instead, that the oceans and other natural ‘sinks’ (forests, etc.) would absorb carbon dioxide faster than human-induced sources would emit the gas. As it turned out, the opposite has happened: human-induced sources (industrial, agricultural, transportation, domestic activities, etc) emit more carbon dioxide than natural ‘sinks’ can effectively absorb – which is the major cause of current trends in rising global temperatures and changing precipitation patterns.

2.2. Ecosystem as Biological Community Interacting with a Physical Environment

The scientific literature defines ecosystem to refer to a biological community (of plants, animals, and microbial organisms) and the physical environment associated with that biological community (Mayhew, op. cit., p. 151; Oxford Dictionary of Science [8]). The ecosystem concept, thus, includes consideration of the processes by which plant and animal populations and microbial organisms interact with each other and the natural environment (air, land, and water) to reproduce and perpetuate the entire community. Thus, an inland freshwater lake, or a tropical rainforest, or a wetland, or mangrove swamp, etc. each with its plant (flora) and animal (fauna) species in a particular natural environment, constitutes an ecosystem. Nutrients pass between the different organisms (animals, plants, microbes) that constitutes a biological community such as when oxygen (O2) is absorbed by fish in an inland freshwater lake, which are then consumed by humans and other animals, which are then consumed by other organisms; etc. Pioneered in the 1930s by ecologist Arthur Tansley [9]10 the ecosystem concept permits us to appreciate the reciprocal relationships between biological organisms (humans, animals, plants, microbes) and their physical environment and the conditions, circumstances and influences that underpin and determine their continued reproduction. This brings us to the concept of ecosystem resources.

Ecosystem resources, then, describe the whole complex of factors or items – both organic and inorganic – supplied by a particular ecological environment and consumed by members of the ecological environment to sustain and reproduce their existence. This definition of ecosystem resources suggests that the concept itself incorporates, also, spatial needs – e.g. swamps for fish to live and hide from predators; recreational facilities for humans (e.g. beaches on a lake shore), etc. Also, non-organic elements that vary across space and time, but are never used up or made available to other species (e.g. certain temperature thresholds, wind direction or pattern, salinity, etc.) might be classified as ecosystem resources. Thus, when such non-organic resources become disturbed or are no longer available in their optimal quantities and/or qualities, there will begin to occur biodiversity loss; otherwise the biological organisms that constitute the ecosystem will begin shift their ranges, failing which they might begin to face extinction.

Table-2. Major Terrestrial Ecosystem Complexes

   Source: Compiled from Wright and Nebel (Op. Cit., Table 2.3, pp. 42-43); Mayhew (Op. Cit., p. 517).

For instance, IPCC [10] reports of marine ecosystems that a warming of 2oC above 1990 levels would result in mass mortality of coral reefs; that 4oC increase in global temperatures by 2100 (relative in 1990-2000 levels) may lead to many freshwater species becoming extinct, etc.  As just noted, the degree to which each ecosystem resource is available or otherwise lacking or high or low, profoundly affects the ability of the organisms in the specific ecosystems to survive and reproduce themselves. So, which non-organic resources are available or absent, and in what quantities determine which plant and/or animal species may or may not survive in a specific region or area; in turn, which organisms do not survive is the key determinant of the nature of a given ecosystem.

Tables 2 and 3, respectively, summarize the major categories of terrestrial and aquatic ecosystems, including their dominant parameters, animal and plant life, and geographical or spatial distribution globally. Table 4 summarizes the various ecosystem services and functions.

Table-3. Major Aquatic Ecosystems

Source: Wright and Nebel (Op. Cit., Table 2.1, p. 29).

2.2.1. Ecosystem Resources: The Renewable and Nonrenewable Distinction

The literature draws a fundamental distinction between renewable and nonrenewable ecosystem resources, a distinction based on the criterion, namely, whether the resource in question can or cannot replenish its stock within a time-frame meaningful to the human mind. A time frame meaningful to the human mind may be interpreted to mean such timeframe within which some human or economic activity can be completed – such as farming cycle, within which a certain crop can be planted, grown and harvested. Human beings, as economic agents, plan their economic activities within timeframes within which their plan objectives can be meaningfully realized – e.g. days, weeks, months, decades. Thus, a renewable resource (also an infinite or perceptual resource) is one that can replenish its stock at a sufficient rate for sustainable economic extraction in a meaningful timeframe. Examples are timber, fish, wildlife – these are organic or biological resources that can reproduce themselves according to some biological laws within timeframes meaningful to the human mind, provided their rates of use or exploitation do not undermine or destroy their regenerative potentials through degradation or over exploitation (see Tietenberg [11]). Some inorganic ecological resources – e.g., underground and surface water, agricultural soils, solar energy, wind or wave energy, etc. – though nonbiological, their localized replenishment occurs within time-frames meaningful to the human mind; thus this category of resources is available for use on a continuing basis.

Table-4. Ecosystem Services and Functions

Source: Wright and Nebel (Op. Cit.), Table 3.3, p. 76.

The literature points our though, that there is certain difficulty in establishing, in practice, whether certain renewable ecological resources qualify as renewable in the strict definition we have posited above, namely, ability to replenish at a sufficient rate for sustainable economic extraction in meaningful timeframes. In principle, surface freshwater lakes, for example, are renewable inorganic resources replenished via the hydrologic (water) cycle. However, in practice, in the absence of good water management, short-term exploitation of a water resource can be characterized by over-drawing relative to rates of recharge, which will likely lead to unsustainable use. The Lake Chad experience serves as a good illustration, to which we return.

2.3. Ecosystems as Dynamic Entities Subject to Occasional Disturbances

Ecosystems are dynamic entities subject to occasional disturbances that destabilize their equilibrium – referring to the balance between organisms and their environment – but are, nonetheless, capable of restoring their equilibrium provided their self-reproductive capabilities are not destroyed or permanently impaired. For instance, a drought (a local or regional lack of rainfall such that the ability to engage in water-dependent crop and/or livestock production is seriously impaired), warming inland lake temperatures above a certain threshold or tolerance level, etc. could constitute a short-term variability in ecosystem processes, which could destabilize ecosystem functions. Long-term changes in ecosystem environment do, also, shape ecosystem processes: e.g. drought conditions decades (or even centuries) earlier could still leave their imprints on current ecosystem environment.

The frequency and severity of ecosystem disturbances, however, determine how ecosystem processes are affected. For instance, as suggested already, the frequency and severity of drought will affect the hydrologic cycle and, hence, the regulation of water balance. Specifically, ecological disturbances like drought could leave behind shrinking freshwater inland lakes and flood plains with disappearing animal and plant species – as in the Lake Chad experience, to which we return.

Ecosystems are controlled by external and internal processes and forces. External forces, most importantly climate (precipitation and temperature), control the overall structure of ecosystems but remain themselves uninfluenced (at least, not directly) by the ecosystems themselves.11 But the climate determines the biome (the type of plant life that dominates within an ecological zone, which, in turn, will influence animal life and soil types) in which the ecosystem is embedded. On the other hand, internal processes (e.g. plant and animal (including human and life, microbial organisms, etc.) not only control ecosystem processes, but are also controlled by them – hence, they (internal forces) are often subject to feedback referring to the effect that a change in one part of an ecosystem has on another part (of the same ecosystem) and how this effect then feeds back to influence the source of the change, inducing more or less of it. Ecosystem feedback may be negative or positive; it forms the basic dynamics for regulating the state of the ecosystem.

Negative feedback causes the ecosystem to revert to its original equilibrium state, and, thereby, regaining or restoring stability. Citing Nunally [12] Mayhew (op. cit., p. 176) gives an example of negative feedback from a river system, when erosion, as a negative feedback mechanism, restores stream stability by lowering channel gradient or slope and increasing bed material size. Positive feedback, in contrast, causes transition to a new ecosystem trajectory, when, for instance, human activities (e.g. overdrawing the regenerative potential of a lake system) causes transition to a completely new lake surface level with different fauna and flora composition.

2.3.1. Over-Exploitation and Degradation of Ecosystems

The most important internal element controlling ecosystems is the human element and its activities – socalled anthropogenic influences on ecosystems. Unlike other internal controlling factors, the cumulative effects of the human influence on ecosystem performance are large enough to influence external processes like climate, and even create new ecosystem trajectories, as just suggested.
The proposition that ecosystems are dynamic entities with feedback mechanisms that restore their stability or equilibrium, assumes, however, that the regenerative capabilities of ecosystems are not undermined or overburdened by human-induced activities such as when fishing activities, water withdrawals, etc. overburden the natural potential of an inland freshwater lake to naturally replenish or maintain itself via the hydrologic cycle. An important consideration here is the carrying capacity (CC) of an inland freshwater lake or any ecosystem for that matter.

As suggested above, inland freshwater lakes as aquatic ecosystems can sustain a certain amount of use or exploitation and still retain their viability. However, a point could be reached at which increasing exploitation of an inland freshwater lake begins to undermine its natural potential to replenish or replace its water level. At that point over-use or degradation has set in, with the possibility of evolution of a lake system completely different from the original state.

The problem of exceeding the CC of inland freshwater lakes does, indeed, occur because in most developing countries inland freshwater lakes represent a kind of common property resource (CPR) – an ecosystem resource or good with open access to all and sundry at zero charge (free). Because there is zero user fee to exploit CPRs, there is a tendency to abuse them or exploit them beyond their CC or natural capacity to replenish, which, in turn, could result in their degradation – a problem known in the academic literature as the tragedy of the commons theory propounded by ecologist [13].
As noted in the literature, CPRs – e.g. an open lake – raise problems similar to those of global public goods12 (e.g. Earth’s atmosphere)13: they ultimately get degraded through overexploitation, because there is no ‘exclusion’ principles; consequently their CC ultimately gets exceeded.

Hardin’s tragedy of the commons theory suggests that increasing human activities will inexorably result in environmental degradation. There is a certain neo-Malthusian flavour to this hypothesis, invoking, as it does, the ideas of the 18th century classical economist Thomas Malthus, who argued that rapidly expanding human population (in 18th century England) was bound to exhaust available land for feeding the population, because, according to Malthus, the human population expands at a geometric proportion relative to the means of subsistence (agriculture) that grows at an arithmetic proportion – socalled Malthusian population trap. Versions of the Malthusian trap thesis can be traced in neo-Malthusian development theory, though current focus has shifted from emphasis on land and agriculture to all natural capital and the global environment.

Critics counter that the neo-Malthusian argument remains tenable only if technology, tastes, and investments to improve environmental quality remain static. Development experience has shown, however, that the overall impacts of human activities on ecosystems are continuously changing, influenced by the dynamic interactions of diverse economic, social, demographic and technological influences and processes (e.g. World Bank [14]). This literature emphasizes that efficiency gains resulting from economic policies will reduce pressure on Earth’s natural environment as a source of inputs to derive economic growth; that environmental policies can reinforce efficiency in resource exploitation and produce incentives for adopting eco-friendly technologies. The extent environmental policies have succeeded in relieving pressure on Lake Chad’s ecosystem resources is not pursued in the present paper due to space constraints.

3. SALIENT FEATURES OF LAKE CHAD’S CLIMATIC AND HYDROLOGIC ENVIRONMENTS

As you approach the Lake Chad basin from Maiduguri, in northeastern Nigeria, the atmosphere of despair is telling. The air is dusty, the wind is fierce and unrelenting, the plants are wilting and the earth is turning into sand dunes. The sparse vegetation is occasionally broken by withered trees and shrubs. The lives of herders, fisher folk and farmers are teetering on the edge as the lake dries up before our eyes. Vegetation and water … are vanishing. Vultures feast on dead cows as drought and desertification take their toll … the lake could disappear this century” [15].

Lake Chad is situated between latitude 120 and 140 301 N and longitude 130 and 150 301 E. [Figures 2 and 3]. It is located, as already posited, in the Sahel climatic zone, perched on the southern edge of the African Sahara Desert and straddling four countries in West-Central Africa: Niger, Chad, Cameroon, and Nigeria.

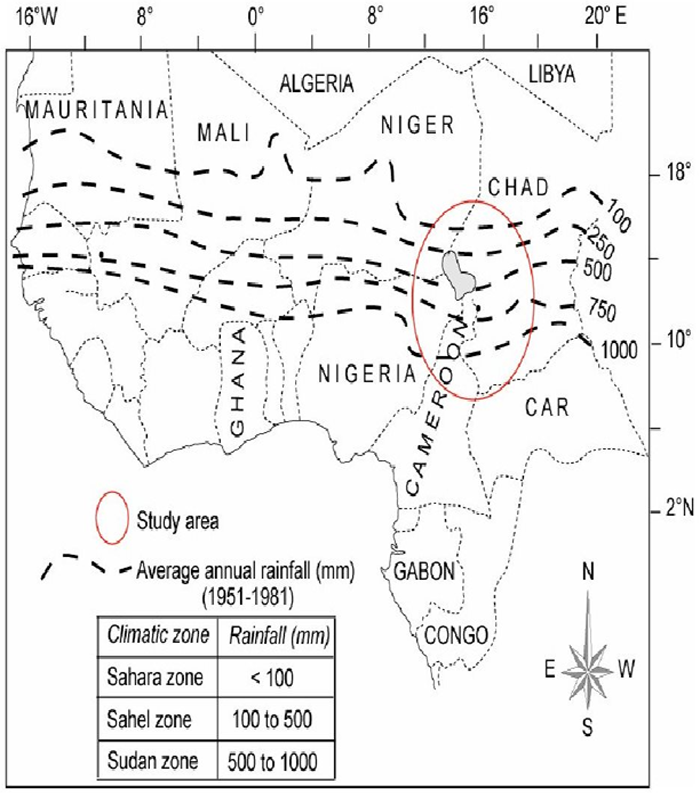

Figure-2. Rainfall and Climatic Zones of Lake Basins

Source: Ngatcha [16]

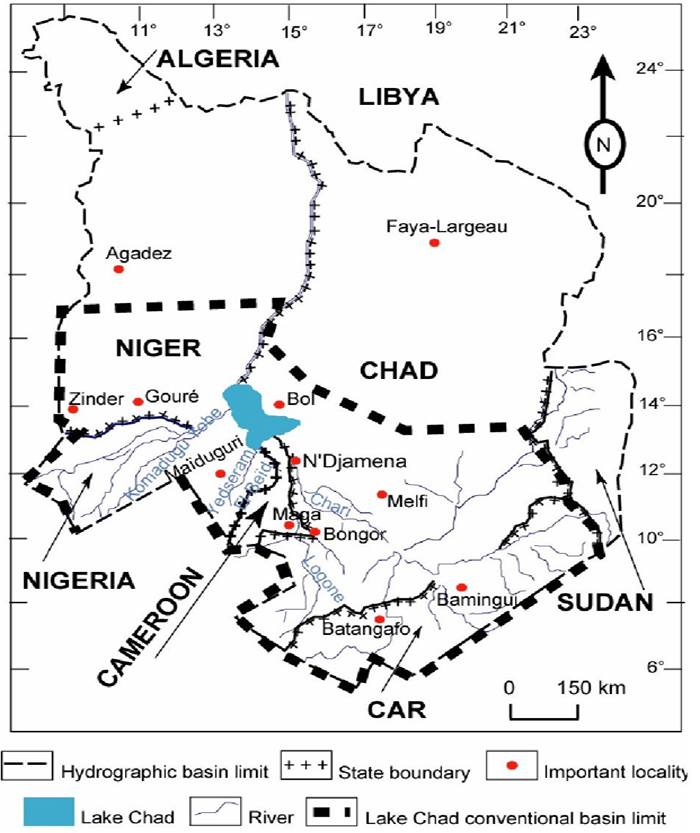

Figure-3. Hydrology of the Lake Chad Basin

Source: Ngatcha [16]

The Lake Chad drainage basin covers three distinct climatic regimes: Sahara, Sahel, and Sudan. The annual rainfall varies, of course, across the three climatic zones, averaging 500–1000 mm in the Sudan, 100–500 mm in the Sahel, and less than 100 mm in the Sahara (Figure 2). As already posited, the Sahel ecology, compounded by global warming and climate changes, remains the most important external factor shaping the shrinking of Lake Chad’s surface area. The Sahel climate is characterized by a short rainy (wet) season (June-September) and a long dry and hot season (October-May). The average annual temperature in the Chad basin varies between 350C and 400C; the zone has low relative air humidity, and thus high atmospheric evapo-transpiration. The Sahel climate has been compounded by global warming and climate change characterized by rising surface temperatures and extreme heat to induce high rates of evapo-transpiration in the Lake Chad basin.

Finally, the unique, closed nature of the Lake Chad basin has an impact on the behaviour of the lake in response to climate change. Generally, a lake basin may be subdivided into two major subsystems for analytical purposes: first, the drainage basin or watershed system which is dominated by the processes of overland flow and flow through the soil; and, second, the lake system itself, which is composed of the lake itself and all its permanent and ephemeral tributaries in which open channel flow occurs. Given that drainage basin processes control the amount and rates water, sediment, and dissolved load supplied to the lake system, it would be insightful to briefly highlight this feature of Lake Chad. The drainage system of Lake Chad is dominated by the Logone-Chari rivers, the Kemadugu-Yobe, the Yedseram and the EL Beid [figure 3]. The Logone-Chari river account for well over 90% of water flowing into Lake Chad; input from the Komadugu-Yobe is ephemeral, coming only during the peak flood period in the brief rainy season (June-September). Besides, water can also reach the lake through smaller tributaries and groundwater discharge, whose regenerative potentials have been seriously undermined by drought compounded by climate change.

Finally, Lake Chad’s drainage basin, as already pointed out, is a closed one with no outlet to an outside sea or the ocean. Much more importantly, the Sahel climate characterized by high temperature and extreme heat and associated high evaporation mean that the Lake system loses water considerably through high rates of evaporation.

4. SIX THEORIES/HYPOTHESES ON LAKE CHAD’S OVER-EXPLOITATION AND DEGRADATION

Records show that the overexploitation and degradation of Lake Chad leading to the dramatic shrinking of its surface area has occurred in more recent decades – precisely, in the post-1960s decades. Before its current dramatic shrinking, Lake Chad was ranked the 4th largest of Africa’s inland freshwater lakes, spanning 25,000 km2. It might be relevant to state, however, that different data sources give different sizes on the lake’s surface area. What is, perhaps, agreed is that the level, volume and surface area of the lake all have fluctuated over the post-1960s decades. A Lake Chad Basin Commission Report (LCBC, no date) observes that:

“The level, volume and surface area … fluctuate as a function of climate variation. During the humid years of the first half of the 20th century, around 70% of the lake’s area comprised open water. The remainder was a marshy archipelago. During the prolonged dry periods, and in the dry season, there is almost no vegetation in the lake. With the arrival of the rainy season … the seeds in the soil germinate and the plants grow back … since becoming the small Lake Chad, the lake has a very limited area of open water and resembles a swamp dominated by grasses, papyrus, common reeds and bulrushes. New small Islands have appeared which have become quickly settled and exploited by the population” (p. 42).

At its deepest, the lake measures no more than 7 meters, and is dotted by islands and mudbanks in areas once (by the 1960s) covered by freshwater.
What can account for the Lake Chad ‘catastrophe’? The literature contains, at least, six theories and hypotheses to explain this problem.

4.1.         Lake Chad had experienced ‘wet’ and ‘dry’ phases for 1000s of years caused by natural climate variation.

4.2.         The influence of anthropogenic climate change compounded the effect of the Sahel drought to undermine the regenerative potential of the hydrologic cycle in the Lake Chad basin.

4.3.         Unregulated exploitation of the waters of the Lake Chad system for dam construction and irrigation purposes overdrew the regenerative potential of the Lake Chad hydrologic cycle.

4.4.         High rates of deforestation in the tropical rainforests of West-Central Africa shifted the rainbelt southwards, which resulted in the Sahel droughts.

4.5.         Pressure from rapidly growing human and livestock populations exceeded the carrying capacity of the Lake Chad ecosystem resources.

4.6.         Anthropogenic sulphate aerosols emissions in the northern hemisphere created a cooling effect (regional climate change) that shifted the equatorial tropical rainbelt southwards resulting in a steady decrease in Sahel rainfall.

We argue that there is no single-cause explanation for the degradation of Lake Chad; rather, the influence of anthropogenic climate change compounded those of non-climate factors – e.g.

deforestation, unregulated exploitation of lake resources, etc – to degrade Lake Chad.

4.1. Natural Climate Variation

This theory is advanced by palaeoclimatogists who study climate of earlier geological era before historical records or instrumental observation began.14 They derive their explanation from examination of data gleaned from study of sediments that were deported million of years ago, and from fossils (the remains or traces of biological organism, namely plants, animals, microbes). They explore lake sediments cores and use them to reconstruct past hydrologic variations, and then use them to show how variations affected ecosystem processes. Although relying on paleoclimatic analogue could prove an extremely unreliable approach, studies based on this hypothesis have produced useful insights by expanding the temporal framework to times prior to those recorded in the instrumental climate studies.

Palaeoclimatic scientists premise their studies on the theory that there are two major drivers of climate in the Lake Chad region: the seasonal migration of the ITCZ (Intertropical Convergence Zone), referring to a belt of low pressure which circles Earth generally near the equator, where the trade winds of the northern and southern hemispheres converge; and the contrast between sea surface temperature and continental temperature in the Gulf of Guinea. They assume that the differences in the path of the ITCZ are the major cause for the formation of pre-historic humid climate in an ecosystem, which today is arid.

Palaeoclimatologists explain that in North Africa an enhanced monsoon prevailed some 1500 to 5000 years ago than what obtains now, which created wetlands and lakes in the African Sahara [17]. The lake history of Lake Mega Chad, from which modern Lake Chad is hypothesized to have evolved (e.g. Gritzner [18]) shows that Lake Mega Chad was Africa’s largest lake. On the other hand, Lake Chad though evolved some 20,000 years ago – which is quite young in the context of geological time-scale involving millions of years.

Recent interpretation of data from the Shuttle Radar Topographic Mission (SRTM), supported by sedimentological evidence, and geomorphic analyses clearly support the interpretation of extended sand-ridges as lake deposits (e.g [19, 20]) rather than being result of plate tectonics (the theory that Earth’s surface is made of lithospheric plates, which have moved throughout geological time resulting in the present-day position of the continent and which explains the location of mountain building, etc.).

During its maximum extension Lake Mega Chad had covered an area approximately 350,000 km2 with its deepest point in the Bodelo Depression (about 210 meters) and linked modern Lake Chad through the Bahr Al Ghazal. Its maximum level of about 325 meters was controlled by the Mayo Kebbi Spill point, from where water would discharge through the Benue River into the Atlantic Ocean. Geomorphological studies suggest several Lake Mega Chad episodes (since at least 3 to 3.5 million years) with the latest lasting until approximately 5,300 years to 4,400 years before now and coinciding with the mid-Holocene15 wet period of northern and cultural Africa.

Modern General Circulation Models (GCMs)16 used by climate scientists now supply convincing evidence that attribute the wetter condition during the Holocene to differences in sun orbital parameters. During the Lake Mega Chad time, the sun reached further to the north (today’s Tropic of Cancer of Latitude 23o.5 N) causing a northward shift of the ITCZ – that is, the rainbelt shifted northwards into the Sahara.

The integration of the ITCZ affects seasonal precipitation patterns, bringing Monsoon17 (rain-bearing air) from the Gulf of Guinea during the summer (May-September), but hot and dry air from the Sahara (harmattan) as the sun moves south (winter) to the Tropic of Capricorn. With a northward shift of the ITCZ, rain-bearing air sucked in from the Gulf of Guinea could move further inland into the Sahel and provide the necessary rainfall. This modification of the ITCZ during the Holocene is hypothesized to be responsible for the existence of the ‘wet’ Sahara, of which Lake Mega-Chad and Lake Chad are remnants.

4.2. Anthropogenic Climatic Change Compounded the Influence of Drought-Prone Sahel Climate to Degrade the Regenerative Potential of the Hydrologic Cycle in the Lake Chad Basin

Anthropogenic climate change beginning in the 1970s onwards dominates the discourse on the degradation of the Lake Chad ecosystems. It is argued that anthropogenic climate change reinforced the influence of a drought-prone Sahel climate to degrade Lake Chad. Contrary to popular belief current anthropogenic climate change is posited not to be the cause of the Sahel drought; on the contrary, this theory claims, drought has been a regular feature of the Sahel, and anthropogenic climate change has only exacerbated the drought conditions in the Sahel. The gist of this argument is that global warming and climate change destabilized the hydrologic (water) cycle in the Lake Chad basin, thereby compounding the preexisting drought condition in the basin.

Specifically, global warming and climate has the direct effect of speeding up the hydrologic cycle which, in turn, destabilizes the equilibrium of Earth’s aquatic ecosystems. Climate scientists have established that the hydrologic cycle is very sensitive to global warming and climate change (e.g. Held and Soden [21]); that, indeed, much of the effect of climate change on Earth’s environment tends to be registered in its effect on precipitation (rainfall, snow, hail, etc.) [22, 23]. On the other hand, the circulation of water between the atmosphere, land, and ocean is enhanced through the warming of global atmospheric temperatures, with immense implications for the frequency, intensity, and duration of hydrologic events: precipitation, floods, drought, etc [24].

There is a certain confusion in the debate on the roles of anthropogenic climate change and non-climate change factors in the Sahel drought, which should be cleared before we can proceed. The popular view is that the Sahel drought is climate change driven. This view is not quite correct. The correct position is that anthropogenic climate change unravelling in the 1970s onwards has merely compounded the effects of long-standing drought events in the West African Sahel on the ecosystems of the ecological zone, by increasing the impacts of drought as well as possibly increasing its likelihood.

Studies on the experiences of other regions (e.g. the drought-prone West Coast of the United States) find that rising average air temperatures and extreme heat are key variables in the equation of drought (e.g. Shukla, et al. [25]) that extreme temperatures, even more importantly than decreased rainfall, influence the impact of drought on ecosystems. This suggests that the shrinking surface area of Lake Chad is not a result of the low abnormal rainfall witnessed in the West African Sahel alone, but also of very high temperatures and extreme heat due to global warming. Other researchers find that not every dry period results in severe drought; that a low-precipitation period is more likely to produce a water supply crisis when temperatures are high, due to the compounding effects of higher evaporative loss, increased water demand, etc. Diffenbaugh, et al. [26] find that enhanced GHG emissions have increased the probability that dry precipitation years (as have obtained in the Sahel beginning since the 1970s through the 1990s) are also warm, leading to an increased frequency of drought events.

Ly, et al. [27] have studied the evolution of extreme temperature and precipitation indices in West Africa spanning latitudes 10-25o N and longitudes 17o W – 15o E; these results show a general warming trend throughout the region during the period 1960-2010. Nights were found to be warmer rather than cooler, apart from more frequent warmer days and warmer spells; this included, also, the coastal zones. The general tendency of decreased annual total rainfall reinforced the rising surface temperature trends. For sub-Saharan Africa, the mean average temperatures have risen, beginning since the 1970s, by as much as 1-3oC, the highest increase registering in the inland regions (e.g. Darfur region of Sudan, South Sudan, West African Sahel, etc) where average increases are reported to exceed 3oC [28]. Increased temperatures have led to greater evaporation (the Clausius-Clapeyron relationship) whereby saturation vapour pressure increases exponentially with temperature; in turn, the increase in water vapour affects precipitation events and risk of flooding.

The climate change influence on the Sahel drought only came to attract global attention in the aftermath of the 1972-1974 Sahel droughts in West Africa, which led to a debate in the United Nations resulting in the 1977 United Nations Conference on Desertification (UNCOD) in Nairobi, Kenya organized by the United Nations Environment Programme (UNEP) (Adams, op. cit.). Global support became further enhanced by continued drought in later part of the 1970s through the 1980s in the West African Sahel and Horn of Africa (Ethiopia, Somalia, Northern Kenya); also, in Southern Africa in the early 1990s, and, yet, again the West African Sahel in 2005 and Horn of Africa in 2006. All these did, indeed, reinforce the hypothesis that anthropogenic climate change compounds the drought effect particularly drought-prone arid and semi-arid ecology.

4.3. Unregulated Exploitation of the Waters of the Lake Chad Basin for Dam Construction and Irrigation Purposes Overdrew the Regenerative Potential of the Hydrologic Cycle

If natural climate variability and anthropogenic climate change and associated high atmospheric temperatures and extreme heat have negatively affected the water balance in Lake Chad, diversion of the waters of the rivers draining into Lake Chad for dam construction and irrigation purposes further compounded the shrinking of the lake’s surface area. Large and unsustainable irrigation projects and impoundments undertaken by the riparian countries, Chad, Cameroon, Nigeria and Niger, which diverted substantial volumes of water from Lake Chad itself and its two major input flows, Chari-Logone and Kamaduga-Yobe rivers, constitute significant factors contributing to the shrinking of Lake Chad. The major facilities which have contributed to the shrinking of Lake Chad are:

the construction of both the Yaguou-Tekele dyke (on the Chari-Logone) and the Maga dam by Cameroon. The Maga dam has reduced the flow of the Logone River into Lake Chad.

• a series of dams by Nigeria – e.g. the Tiga dam on Yobe River, Alau dam on Ngadda River, the Yedseram dam by Yedseram River and the South Chad Irrigation Project (SCIP). The SCIP was aimed at developing wheat production in Nigeria’s ‘Far North’. Developed to irrigate 67,000 ha, a special technological feature of the SCIP is the cutting and dredging of a 38-km long intake canal from Lake Chad; the water flows into a 21-km long canal, from where it is carried to another pumping station from which it can be released into the irrigation system. Due to the shrinking surface area of the lake the water has largely been unable to reach the intake canal designed to transport water to the irrigation system even in peak flood periods [29]. The shortage of irrigation water is cited as a key factor underlying the failure of wheat development in Nigeria [30, 31].
• the MAMDI Polder Project in Chad Republic.

The above dam and irrigation facilities combined account for upwards of 30% of the observed shrinking of the surface area of Lake Chad since 1960 (e.g. Coe and Foley [32]). By the end of the 1970s, irrigation development was observed to have had a modest impact on the hydrology of the Lake Chad basin; in the 1980s onwards, in contrast, large-scale irrigation systems began to withdraw water 4-fold relative to the amount extracted in the previous quarter century, accounting for 50% of the additional decrease in Lake Chad’s surface area.

Water represents a perfect example of a renewable ecosystem resource that is showing signs of exhaustion due to over-exploitation and degradation of the natural potential of the hydrologic cycle to replenish the natural water flow in many parts of the world. Globally, freshwater is abundant though; each year an average of more than 700 m3 per capita of freshwater is known to enter rivers and aquifers (deposits of rocks, such as chalk, that yield economic supplies of water to wells or springs as a result of their porosity or permeability). However, such water has been found to not always arrive where and when it is needed, due partly to diversions.

In several parts of the world surface freshwater reservoirs – e.g., rivers, lakes, etc. – have been overdrawn to develop dams and irrigation facilities; while such projects have provided livelihoods for millions, they have simultaneously generated considerable negative environmental spillovers. As pointed out earlier, the world’s most dramatic example of an aquatic ecosystem that has been over exploited and degraded to extinction is the Aral Sea.18

4.4. High Rates of Deforestation in West-Central Africa shifted the Rainbelt Southwards

This was the first hypothesis to be advanced to explain the declining rainfall in the Sahel and was popular in research circles in the 1900s up until the 1990s (e.g. [33-36]). This perspective hypothesized that the upper limits of the carrying capacity of the Sahel grazing pastures have been exceeded by the numbers of herds grazing on Sahel pastures. Variations in annual rainfall amounts and vegetation cover were cited as a evidence, that the African Sahara desert was shifting southwards caused by human activities. Lamprey [37] for instance, was among the early empirical adherents of this hypothesis; he claimed that the Sahara Desert had shifted some 90-100 km southwards in the north Kordafan region of Sudan between 1958 and 1975. The socalled Charney’s hypothesis [38] argued, also, that reduction in Sahel rainfall were a result of human activities: the systematic and irreversible degradation and desertification of the zone through overgrazing and deforestation and inefficient land-use practices. More technically, decreases in the region’s vegetation cover and deforestation resulted in an increase in the reflectivity or albedo,19 as dense vegetation yields to bare sand, and light-coloured soils; that this increase in reflectivity results in reduction in the heating of the ground, which, in turn, reduces the heating of the atmosphere by the ground surface, resulting in a reduction in the convection that is essential for the formation of rain-bearing clouds.

Generally, environmental degradation in the form of deforestation can – and does, indeed – lead to a reshaping of the biosphere in a significant way, adversely affecting the functioning of the hydrologic cycle (Wright and Nebel, op. cit., p. 221). Specifically, with existence of forests and other ecosystems, there is little runoff; rather, precipitation is intercepted by vegetation and infiltrates into porous topsoil – a process that “provides the life-blood” of the natural ecosystems that constitute the biosphere (ibid). But the evaporation taking place in these ecosystems not only sustains the latter, but also recycles the water to local rainfall; some of the water percolates down to recharge the groundwater reservoirs, which, in turn, release water through springs, streams, rivers, etc. As forests become lost to deforestation – as has happened in several parts of West-Central Africa (see Dike and Dike [39]) or land is overgrazed, the natural pathway of the hydrologic cycle is destabilized: it shifts from infiltration and groundwater recharge to runoff, as the water runs into streams or rivers almost immediately – a major cause of flooding, as happened in Nigeria’s Niger-Benue confluence around Lokoja in 2013 [40].20

Climate scientists find that sub-Saharan Africa’s tropical rainforest ecosystems affect rainfall in the North Atlantic and West Africa (e.g. Conway [41]). Several studies hypothesize, that in the 1970s onwards extensive deforestation of the West African tropical rainforest and grassland ecosystems has been a cause of drought in the West African Sahel. As shown earlier, Africa’s Sahel zone is perched on the southern edge of the Sahara Desert or the northern edge of the savanna grasslands flanking both sides of Africa’s equatorial tropical rainforests noted as one of the ‘hot spots’ of tropical rainforest deforestation (Dike and Dike, op. cit.).

It was argued that the prolonged mismanagement of the savanna ecosystem, coupled with the fragile nature of the natural capital of the zone, has stripped open large areas of vegetation thereby making “the soil susceptible to wind/water erosion” [42]. Earlier in the 1970s, the United Nations Food and Agriculture Organization [43] cited in LCBC, op. cit.) noted that soil degradation in the Chad Basin has substantially increased the risk of desertification because of mutually reinforcing factors, including loss of organic matter and nutrients, soil structure deterioration and surface crusting, which, in turn, decrease water infiltration and retention, etc. The environmental degradation has been both a cause and outcome of poverty, with the Sahel belt comprising some of the most impoverished countries of the world. The FAO concluded that the Sahelian societies face a formidable challenge making the entire belt an “environmental hot spot”. There is, as a result, likely high pressure on the resources of the river valleys and major wetlands – e.g. the flood plains of the Hadejia – Nguru plains.

The deforestation hypothesis seems to have been accepted by a team of researchers at the Massachusets Institute of Technology (MIT) (cited in Smith [44]) who located the cause of incessant droughts in the West African Sahel in heavy deforestation in the coastal rainforest belt; they concluded that further deforestation in that zone “could cause the complete collapse of the West African monsoon.” The MIT researchers used a statistical computer model to demonstrate that as deforestation proceeded in West Africa’s coastal rainforests coastal rainfall will no longer be recycled to create inland precipitation, premising their explanation on drought developments in the 1970s, when, according to them, three decades of heavy deforestation had resulted in the collapse of rainfall in the region by shifting the ITCZ further southwards.

In West-Central Africa the ITCZ describes the convergence of the rain bearing Guinea monsoon winds from the Southern Atlantic Ocean and the dry dusty harmattan winds blowing across the Sahara Desert. Meteorologists inform us though, that the movement of the ITCZ is quite unpredictable as its position is influenced by the apparent movement of the overhead sun, the relative strength of the trade winds, and the changing locations of maximum sea-surface temperatures. Citing studies by other researchers, Mayhew (op. cit., p. 271) inform us that in May 2005 (the rainy season begins about June-July in the African Sahel) the African portion of the ITCZ was 1o South of the average (the tropical rainbelt shifted further north), which explains the heavy rains in Ethiopia, and flooding in Khartoum (Sudan).

The deforestation hypothesis began, however, to be relaxed in the 1990s onwards, as evidence on the effect of global warming and climate change on ecosystems began to accumulate. More importantly, remote-sensing-based research on the Sahel began to reveal evidence that the Sahel had not, after all, experienced systematic degradation and irreversible desertification at the regional scale due to deforestation. For example: [45-47] employing satellite technology to study vegetation cover produced evidence that vegetation has capacity to recolonize areas that had apparently suffered desertification and land degradation when rainfall permits; that the desert boundary, defined in terms of vegetation cover, changes, with rainfall. So, changes in land surface seem to be driven by climate factors (precipitation, temperature, etc.) rather than by human activities [48].

If desertification describes “the transition of a region into dry barren land with little or no capacity to sustain life without an artificial source of water” [49] then we could conclude that parts of the Sahel have experienced only transient desertification caused by drought and climate desiccation, which differs from desertification of the Sahel leading to an irreversible loss of cultivability.

4.5. Pressure on Lake Chad’s Ecosystem Resources from Rapidly Growing Human and Livestock Population Degraded the Lake

Beyond the adverse impacts of natural climate variation, drought, and overdrawing of the regenerative potential of the Lake Chad hydrological system to develop dams and irrigation facilities, pressure on the lake’s water resources by a rapidly growing human population has been theorized to be a key factor behind the over-exploitation and degradation of Lake Chad. Even though the Lake Chad Basin Commission (LCBC) was formed way back in 1964 to regulate the exploitation of the water resources of Lake Chad, the status of the lake as a free-access natural resource, accessible to all at no fees has resulted in the over-exploitation and ultimate degradation of the lake’s regenerative potential.

For much of Lake Chad’s estimated 20,000 years of existence (e.g. Coe and Foley, op. cit.) human population growth and pressure from economic activities were never considered a significant factor in the ecological balance of the lake. However, as from the 1970s, the impact of these forces began to register themselves. Various estimates on the human population size that exploit the lake’s resources exist – e.g. Table 5, gives 27.94 million as the population of the lake’s basin in 2001, and this is projected to double by the year 2050.

Table-5. Population and Surface Area of Lake Chad

Source: Ngatcha [16] table 1

Citing UNESCO sources, Onuoha [50] put the growth rates of the human population at 2-3% per annum and the human population of the Lake Chad basin at over 37 million by the beginning of the 2000s, more than 50% of this originating in the Nigerian side of the basin. The conflicting data on the human population of Lake Chad basin should not detain us here. What seems relevant is that unregulated human population migration in the Lake Chad basin and economic activities – e.g. livestock grazing, fishing, etc. – have intensified ecological degradation in the basin (see also LCBC, no date). Indeed, the Lake Chad basin has for centuries served as the “traditional convergence point” for herdsmen and pastoralists of the Western Sudan: Tuareg, Toubou, Feda, Kaemba, Shuwa Arab, Fulani and Waidai from Niger, Chad, Northern Cameroon, and Northern Nigeria [51].Lake Chad has served as a vital source of freshwater and other vital ecosystem resources for the human, livestock and wildlife communities of the basin. The flood plains support a rich terrestrial and aquatic fauna; more than 150,000 fishermen of the artisanal category live on the lake’s shores and its islands. But the artisanal nature of most economic activities on the lake as well as the common-pool property characteristics of the lake’s resources pose difficulty in terms of regulation and control, which, in turn, have posed actual and potential danger to over-exploitation and, hence, degradation of the lake’s ecosystems.

4.6. Anthropogenic Sulphate Aerosols Emissions in the Northern Hemisphere Created a Cooling Effect (Regional Climate Change) that Shifted the Equatorial Tropical Rainbelt Southwards Resulting in a Steady Decrease in Sahel Rainfall

This is the latest addition to the list of hypothesis attempting to explain the Sahel drought: air pollution caused by anthropogenic aerosols pumped from the factories and automobiles of a highly industrialized northern hemisphere caused a cooling effect (regional climate change) that shifted the equatorial tropical rainbelt southwards with a steady decrease in precipitation in the Sahel as from the 1950s. The lowest ever recorded rainfall in the West African Sahel was during the 1980s, “perhaps the most striking precipitation change in the 20th century observational record” (see Hwang, et al. [52]). Figure 4 shows declining rainfall over the decades (1920-2000).

Authors and adherents of this theory (e.g. [53, 54]) admit though, that this is a partial explanation for the Sahel drought, as other ‘culprits’ have been identified such as global warming and climate change, pressure from human population growth, etc. Also, the West African Sahel was not exceptional in the regional climate change caused by aerosols pollution: Northern India, and parts of South America experienced drier decades, while places at the southern edge of the equatorial tropical rainbelt – e.g. northeast Brazil and the Great Lakes Region of East Africa are known to have experienced weter-than-normal conditions.

Climate scientists posit that tropical rainfall is rather sensitive to the temperature difference between the two hemispheres, with the equatorial tropical rainbelt swiftly shifting to the warmer hemisphere. Generally, the tropical rainbelt falls into bands at specific latitudes such as the equatorial tropics; a warner northern hemisphere, for instance, causes the ITCZ to shift northwards, which shifts the tropical rainbelt northwards. The regions most affected by this shift of the ITCZ are likely to be the bands’ north and south edges.

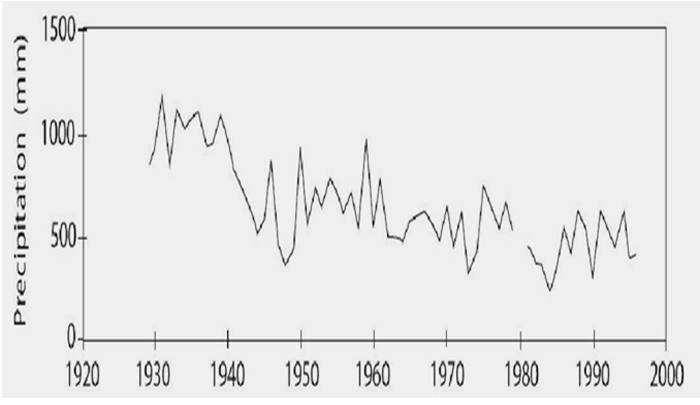

Figure-4. Precipitation in the Chad Basin, 1920-2000

Source: Ngatcha [16]

In Africa these edges most affected by shifts in the ITCZ include the West African Sahel. Abrupt changes in rainfall patterns in the last century or the 1900s in the Sahel coincide with rainfall disruptions in the equatorial tropics caused by shifts in the ITCZ. The largest temperature drop in the atmospheric temperature difference was a drop of about 0.25oC (about 0.50oF) in temperature difference in the late 1960s, which coincided with the beginning of a 30-year drought in the African Sahel that caused famine and increased desertification (e.g. Mortimore [33]).

The northern hemisphere has a greater land mass than the ocean-dominated southern hemisphere, which has implication for the movement of the ITCZs. To understand regional climate change we should not focus so much on the global mean temperature, but the regional pattern of global warming. The cooling effect of anthropogenic aerosols emissions on the northern hemisphere is an example of this regional climate change.

There exist in Earth’s atmosphere national factors and processes that lead to global cooling effects: e.g., on average, clouds cover 50% of Earth’s surface and reflect some 21% of solar radiation away to space-a socalled planetary albedo – and it prevents warming from occurring; volcanic eruptions, such as the mount Pinatubo Volcano in the Philippines in 1991 that spewed some 20 million tons of particles and aerosols into the atmosphere and contributed to a significant drop in average global temperatures “as radiation was reflected and scattered away” (Wright and Nebel, op. cit., p. 517; see also Verheggen and Weijers [55]).

As already posited, heavy concentration of anthropogenic GHGs cause the warming in global temperatures known to affect regional precipitation patterns – e.g. the sudden wet season within the equatorial tropics, but, more explicitly, seasonal shift of air flows, cloud and precipitation systems known as monsoons in the equatorial tropics of South and Southeast Asia, Western Africa, etc.
On the other hand, in contrast the warming effect of GHGs, anthropogenic sulphate aerosols (from ground level pollution) have significant cooling effect by canceling out some of the GHG warming effect. Most climate models reckon that aerosols – such as those from sulphates – cool the atmosphere by about 0.3 – 0.5oC (e.g. Hwang et al., op. cit.; Polson et al., op. cit.). The apparent underestimation of sulphate aerosols’ cooling effect in conventional climate science models until recently might help to settle one of the major controversies in climate science: the lack of a more direct correlation between atmospheric GHG concentrations and global atmospheric temperature increases over the last several decades, which has permitted climate change skeptics to argue that global warming is all but “hot air” (Wright and Nebel, op. cit., p. 524; see also The Economist [56]).

Our survey of the six hypothesis posited to explain Lake Chad’s shrinking reveals that none, singly, offers an adequate explanation. Collectively though they provide useful insights into the processes and mechanisms which caused this ‘ecological catastrophe’.

5. COMPARATIVE PERSPECTIVE: SYMPTOMS OF GLOBAL WARMING AND CLIMATE CHANGE IN TOP-4 AFRICAN INLAND FRESHWATER LAKES

In this section we highlight the symptoms of global warming and climate change in the top-4 African inland freshwater lakes, including Lake Chad itself, in order to provide a comparative perspective to the Lake Chad experience. Table 7 schematizes the relevant features of the four inland freshwater lakes: Lakes Victoria, Tanganyika, Malawi, and Chad.

Table-7.Comparative Features of Top-4 African Inland Freshwater Lakes

  Source: Authors

5.1. Two Distinct Features of Lake Chad vis-à-vis Other Major African Inland Lakes

Two distinct features distinguish the Lake Chad environment, which might help to understand its unique response to climate change vis-à-vis other major African inland freshwater ecosystems. First, it is embedded in a drought-prone Sahel climate. The latter has had significant influence on the net water balance in Lake Chad, which has decreased over the decades (beginning since the 1970s) as a result of incessant drought. Climate change has tended to compound the drought condition: global warming has led to rising surface temperatures and extreme heat, even more importantly than decreased rainfall in the African Sahel, induce high rates of evaporation of lake waters, leading to shrinking lake levels.

Agronomic models (e.g. GIZ [61]) forecast the highest projected increase of mean annual temperature for the central and eastern Lake Chad basin reaching in some areas up to 3-6oC by the end of the 21st century (the 2000s). Rising temperatures will increase evapo-transpiration, thus reducing the available water resources by up to 4-10% until 2099.

Other major African inland lakes – e.g. Lakes Victoria, Tanganyika, Malawi, etc. – are situated in a tropical ecology where regular rainfall has a moderating influence on the rising temperatures and extreme heat associated with current global warming and climate change. Lake Victoria, for instance, sits astride the equatorial tropical zone, which guarantees all-year round rainfall.

Second, Lake Chad has a drainage basin or watershed with no outlet to an outside sea or ocean. Lake Chad’s only source of water input is via natural rainfall, which, however is subject to seasonal and long-term fluctuations due to climate change (see Figure 4). The water levels of Lake Chad as calculated by NASA scientists using data provided by Okonkwo, et al. [62] show that since 1900 bumps and dips characterize the lake level, mirrowing fluctuations in rainfall. Between the early 1960s and end of the 1980s Lake Chad’s water levels sank 3 meters below the mean level between 1900 and 2010. By the 1980s the lake surface area had reached a low of just 1500 km2 – down from 25000 km2 in the early 1960s.

5.2. Is Lake Chad Surface Area Recovery Sustainable?

However, by the first two decades of the 2000s the lake levels were reported to the stable and rainfall increasing somewhat (see Dong and Sutton [63]). Scientists warm, however, that the stabilization of Lake Chad’s water levels observed as from 2010 should not be taken to mean that the shrinking of the lake is now a phenomenon of the past, given the history of the lake’s evolution and the bumps and dips that have featured in this evolution. So, there is reason to predict a possible long-run decline in Lake Chad’s surface area; even some researchers predict the Lake Chad could possibly disappear completely in the next 50 years or so.

Available evidence shows that Lake Chad’s experience, though quite exceptional when viewed in the context of other major African inland freshwater lakes, does tally with the response of inland lakes in arid regions of the world to climate change. Bai, et al. [1] studied changes in the area of nine (9) inland lakes in arid regions of Central Asia during a space of 30 years, 1975-2007 and found similar results. The area changes in these lakes have been proved to be the results of regional climate changes and recent human activities. The results indicated that the total surface areas of these nine lakes decreased from 91,402.06 km2 to 46,042.23 km2, accounting for 49.62% of the original area of 1975.

Finally, IPCC Assessment Reports show that global warming and climate change has had adverse outcomes for Africa. The IPCC Assessment Report for 2014 predicts the following climate change induced scenarios for Africa:

75-250 million of Africa’s population will be made vulnerable to water stress and more than 1.8 billion by the 2080s. Already inland freshwater bodies are being degraded by climate change; some are even disappearing – e.g. Lake Chad.

Rainfed agriculture could decline by 50% in some African countries by the year 2020; wheat production will be hardest hit and may disappear from African agriculture by the 2080s, and maize (a key grain staple) will fall significantly in Southern Africa  (e.g. [64, 65]).

Arid and semi-arid land will increase by up to 8% with severe socioeconomic implication – specifically, it will exacerbate the food security problem and undermine efforts towards poverty eradication. Currently, almost 1 billion people live in arid lands; in Africa alone there are 180 million (1.8% of the global total).

Sub-Saharan Africa and South Asia are two world regions with the highest levels of chronic malnourishment (hunger); those are regions that are most likely to be exposed to the highest degree of instability in food production.

6. SUMMARY AND CONCLUSIONS

Global warming and climate change constitutes the major environmental degradation challenge currently facing human societies. Its symptoms in Earth’s ecosystems have been intensely studied and extensively documented in the climate science literature. The broad objective of this paper was to explore the scientific literature in order to identify and examine the effect of global warming and climate change on ecosystems; in particular, it examined the mechanisms and process through which global warming and climate change degrades ecosystems. The latter describes biological communities (of plants, animals, and microbial organisms) in their interaction with the natural or physical environment (land, water, air, etc.) in which they are embedded; thus, the ecosystem category includes consideration of the processes by plant and animal population and associated microbial organisms interact with each other and the natural environment to reproduce and perpetuate the entire biological community.

The specific objective of the paper was to analyse the response of inland freshwater ecosystems to global warming and climate change, drawing empirical illustration from the degradation of Lake Chad, an inland freshwater lake ecosystem embedded in the Sahel climatic zone of West-Central Africa.

The study is premised on the argument, that ecosystems are dynamic entities whose functioning is controlled by both internal and external processes and forces. The most important internal processes controlling ecosystems are human beings and their activities; specifically, human beings exploit ecosystem resources to sustain their existence. On the other hand, the most important external processes shaping ecosystem functioning originate in the climate factor (temperature and precipitation). However, the influence of the climate variables on ecosystems can be compounded by non-climate variables – specifically, over-exploitation of ecosystem resources by humans, which can – and, indeed, does – lead to degradation of the regenerative capabilities of ecosystems and even, total collapse.

The degradation of Lake Chad clearly illustrates this interaction between the climate factor and non-climate factors in the degradation of ecosystems. The paper explores six theories / hypotheses to attempt to explain the Lake Chad and experience:  (i) natural climate variation; (ii) anthropogenic climate change compounding the effect of the Sahel drought to undermine the regenerative potential of the Lake Chad hydrologic cycle; (iii) unregulated exploitation of the Lake Chad hydrologic system overdrew the regenerative potential of the hydrologic cycle; (iv) high rates of deforestation in the tropical rainforest basin of West-Central Africa shifted the rainbelt southwards; (v) pressure from rapidly growing human and livestock population exceeded the carrying capacity of Lake Chad’s ecosystem; and, (vi) anthropogenic aerosols emissions in the northern hemisphere caused air pollution (regional climate change) that shifted the tropical rainbelt southwards with a steady decrease in precipitation in the West african Sahel from the 1950s onwards.

A survey of evidence finds that, there is no single-cause explanation for the degradation of Lake Chad; rather, the influence of anthropogenic climate change compounded those of non-climate factors – e.g. deforestation, unregulated exploitation of lake’s resources by the riparian states, human pressure on lake’s aquatic resources, etc. – to degrade Lake Chad; and, second, Lake Chad’s experience, though quite exceptional when viewed in the context of the experiences of other major African inland freshwater lakes, does tally with the responses of inland lakes in arid region of the world to climate change.

End Notes

1 The terms ‘global warming’ and ‘climate change’ are often used synonymously in the literature even though they describe quite different processes, the one referring to an increase over time in Earth’s average surface temperatures, the other to a long-term change in the elements of the Earth’s climate system, such as temperature, rainfall, wind, and pressure measured over time of at least 30 years. In this paper we use the term global warming and climate change to describe a single process: the exceptional changes observed in Earth’s climate system beginning since the Industrial Revolution Centuries (the 1700s and 1800s).

2 Cited in Nikoulima [2] p. 83 (figure 5.4).

3 One of the four largest lakes in the world before its degradation, with an area of 68,000 km2, the Aral Sea steadily began to shrink in the 1960s as the rivers (Ama Darya and Syr Darya) flowing into the inland Aral Sea were diverted into irrigation development for cotton production in Soviet Kazakhstan and Uzbekistan. By 2007 the Aral Sea had already lost some 90% of its original size; by 2014 satellite images revealed that parts of the original Aral Sea have, in fact, completely dried up for the first time in modern history turning into what is now called Aral Kam desert [66].
4 See Adams [67] plate 1.2, p. 18, on Mount Kenya.

5 Glacier retreat, along with melting ice caps and mountain snow loss, provides, one of the most visible and sensitive evidence of global warming climate change. Given current trends, nearly all glaciers have lost their mass balance (Gardner and 16 Others, 2013); see also The Economist [68] and IPCC [69].

6 Most of the warming due to climate change (93.4%) is going into the oceans, where a lot of ecosystem changes are transpiring. Rapidly rising GHG concentrations are driving ocean systems towards conditions not observed in millions of years, with an associated risk of fundamental and irreversible ecological changes (see [3, 70, 71]).

7 In the 1980s scientists had discovered that anthropogenic GHG concentrations in Earth’s atmosphere have been transforming the chemical properties of the ozone layer (ozonesphere), thus allowing more UV radiation to penetrate the biosphere, with adverse health and environmental outcomes – e.g. skin cancer which causes mutation of DNA and suppressing certain activities of the human immune system. See Oxford Dictionary of Science, 2005, p. 594.

8 Previous changes in Earth’s average surface temperatures were caused by volcanic eruptions, changes in ocean currents, variations in the angle of Earth’s rotation in its distance from the sun; etc.
9 When scientists analyse atmospheric carbon dioxide concentrations they employ the term parts per billion (ppb) or parts per million (ppm), but when analyzing carbon dioxide being released into the atmosphere they use the term gigatonnes of carbon (Gt.C). Whereas ppm and ppb are mass or stock phenomena, Gt.C is a flow concept: carbon dioxide, as it cycles through Earth’s various spheres (atmosphere, land, water) often changes from one form to another, rather than remaining carbon dioxide: it is stored as carbohydrates, oils, carbonates, and various other organic materials – socalled carbon fluxes in the scientific literature.

10 See Adams (op. cit.,) especially pp. 37-58.

11 A large aquatic ecosystem can influence local climate – see Thiery, et al. [58] on Lake Victoria in East Africa.

12 Samuelson [72] is credited with pioneering the concept of ‘public goods’ in modern economics, defining them as “collective consumption goods” – i.e. goods which everyone enjoys in common, in the sense that each individual’s consumption of such goods does not subtract from any other individual’s consumption of these goods – the non-rivalnessprinciples. In addition, a public good has a second property, namely, non-excludability meaning that it is impossible to barr or prevent others from consuming public goods. Some goods may be rivalrous but non-excludable, and are called common-pool resources – e.g. open sea fisheries, water in an open lake, village grazing pasture, etc. Common-pool resources raise similar problems to public goods – the tragedy of the commons.
13 Earth-atmosphere’s ‘carrying capacity’ in the present context is the maximum amount of GHGs or gaseous pollutants the atmosphere as a natural waste ‘sink’ can effectively assimilate without its chemical composition or properties changing to a vastly different state.

14 Scientists employ different approaches to attempt to discover the symptoms of climate change in Earth’s natural systems, including ecosystems, namely, use of instrumental records, Palaeoclimatic analogues, and coupled general circulation models (CGCMs). See Dike and Dike [39] chapter 3, subsection 3.9.

15 The Holocene epoch was preceded by the Pleistocene epoch (or Ice Age) when most of Earth’s species began to evolve. The Plaeistocene epoch began since 1.8 million years ago. All known human civilizations began during the Holocene epoch. Historians put the first evidence of human civilization in 9,500 BC, only 100 years before the beginning of the Holocene epoch.

16 Numerical models upnesenting physical processes in the atmosphere, hyerospheae, cryuspheae, (solid foam of water e.g sea ice, lake ice, river ice, snow cover, glaciers, ice caps, ice sheels and frozen land) and land surface.

17 Monsoon involves large-scale sea breezes occurring when temperatures on land is significantly warmer than that of the oceans, causing temperature imbalance. Usually, the latter occurs because land and ocean exhibit significant differences in capacity to absorb heat, with the oceans absorbing heat faster than land can, which makes the land environment significantly warmer than ocean environment (which explains, also, why coastal regions are cooler than continental region). As the lower atmosphere (troposphere) over land gets warmer, evaporation will intensify resulting in an increase in moisture circulating in the lower atmosphere, which, in turn, leads to increased frequency over precipitation events mainly over land. As the latter warms up faster than the ocean it creates low pressure into which moisture-laden winds flow.

18 See End Note no. 5 above.

19 The proportion of solar radiation reflected from a surface, such as clouds or bare rock, which is found to the higher for lighter, white bodies than for darker, black bodies (e.g. forest canopy).

20 Dukiya and Galhot explain that the floods in the Niger-Benue confluence come as a result of the monsoon rains occurring in July through September in West Africa. The monsoon rains produce “a surge” that expands the flood plains of the Niger River to as high as 25000 km2 but which shrink to as low as 4000 km2 in dry periods. Complementing the monsoon factor is a “conflict between man and environment”: specifically, land-use (especially urbanization) and land-cover have been poorly managed in the drainage basin and river courses of the Niger River, which gives rise to silt-laden floodwater cascading down the Niger River and overflowing its banks.

REFERENCES

[1]          J. Bai, X. Chen, J. Li, L. Yang, and H. Fang, "Changes in the area of inland lakes in arid regions of Central Asia during the past 30 years," Environmental Monitoring and Assessment, vol. 178, pp. 247-256, 2011.Available at: https://doi.org/10.1007/s10661-010-1686-y.

[2]          O. Nikoulima, Small-scale, high-impact policies for fighting climate change in 2017 foresight Africa: Top priorities for the continent in 2014 (Amadousy, ed.) Brookings Institution, Africa Growth Initiative, 2017.

[3]          R. T. Wright and B. J. Nebel, Environmental science: Toward a sustainable future, 8th ed. Delhi: Prentice-Hall (India) Private Ltd, 2004.

[4]          G. Schmidt, "Water vapour: The feedback or forcing?," Real Climate, 2005.

[5]          R. Russel, The greenhouse effect and green gases: The University Corporation for Atmospheric Research Windows to the Universe, 2007.

[6]          The Economist, The heat is on: A survey of climate. London: The Economist, 2013.

[7]          S. Arrhenius, "XXXI. On the influence of carbonic acid in the air upon the temperature of the ground," The London, Edinburgh, and Dublin Philosophical Magazine and Journal of Science, vol. 41, pp. 237-276, 1896.Available at: https://doi.org/10.1080/14786449608620846.

[8]          Oxford Dictionary of Science, A dictionary of science, 5th ed.: Oxford University Press, 2005.

[9]          A. G. Tansley, "The use and abuse of vegetational concepts and terms," Ecology, vol. 16, pp. 284-307, 1935.Available at: https://doi.org/10.2307/1930070.

[10]        IPCC, "Climate change 2007: Working group 1: The physical science basis FAQ 3.2. How is precipitation changing?," 2007.

[11]        T. Tietenberg, Environmental and national resource economics, 5th ed. New York: Addison-Wesley, 2000.

[12]        N. R. Nunally, "Application of fluvial relationships to planning and design of channel modifications," Environment Management, vol. 9, pp. 417-425, 1985.Available at: https://doi.org/10.1007/bf01866340.

[13]        G. Hardin, "The tragedy of the commons," Science vol. 162, pp. 1243-1248, 1968. 10.1126/science.162.3859.1243.

[14]        World Bank, World Development Report 1992: Development and the Environment Oxford University Press1992.

[15]        A. Salkida, "Africa’s vanishing lake chad – Action needed to counter an ecological catastrophe," Africa Renewal, 2012.

[16]        B. N. Ngatcha, "Water resources protection in the lake chad basin environment," European Water, vol. 25, pp. 3-12, 2009.

[17]        S. J. Armitage, C. S. Bristow, and N. A. Drake, "West African monsoon dynamics inferred from abrupt fluctuations of Lake Mega-Chad," in Proceedings of the National Academy of Sciences (ANAS), USA, 2015.

[18]        J. A. Gritzner, "Lake Chad," Encyclopaedia Brittanica, 2018.

[19]        J. F. Ghienne, M. Schuster, A. Bernard, P. Duringer, and M. Brunet, "The Holocene Giant Lake Chad revealed by digital elevation models," Quarternary International, vol. 87, pp. 81-85, 2002.Available at: https://doi.org/10.1016/s1040-6182(01)00063-5.

[20]        E. Schuster, "Holocene Lake Mega-Chad Palaeo-shorelines from space," Quarterly Science Review, vol. 24, pp. 1821-1827, 2005.

[21]        I. M. Held and B. J. Soden, "Robust responses of the hydrological cycle to global warming," Journal of Climate, vol. 19, pp. 5686-5699, 2006.Available at: https://doi.org/10.1175/jcli3990.1.

[22]        D. Suzuki, Is Alberta flooding a sign of climate change?: Huff Post Alberta Canada, 2013.

[23]        M. H. I. Dore, "Climate change and changes in global precipitation patterns: What do we know?," Environment International, vol. 31, pp. 1167-1181, 2005.Available at: https://doi.org/10.1016/j.envint.2005.03.004.

[24]        A. M. Fowler and K. J. Hennessy, "Potential impacts of global warming on the frequency and magnitude of heavy precipitation," Natural Hazards, vol. 11, pp. 283-303, 1995.Available at: https://doi.org/10.1007/bf00613411.

[25]        S. Shukla, M. Safeeq, A. AghaKouchak, K. Guan, and C. Funk, "Temperature impacts on the water year 2014 drought in California," Geophysical Research Letters, vol. 42, pp. 4384-4393, 2015.Available at: http:/doi.org/0.1002/2015GLo63666.

[26]        N. S. Diffenbaugh, D. C. Swain, and D. Touma, "Anthropogenic warming has increased drought risk in California," in Proceedings of the National Academy of Sciences (PNAS) USA, 2015, pp. 3931-3936.

[27]        M. Ly, S. B. Traore, A. Agali, and B. Sarr, "Evolution of some observed climate extremes in the West African Sahel," Weather Climate Extremes, vol. 1, pp. 19-25, 2013.Available at: https://doi.org/10.1016/j.wace.2013.07.005.

[28]        J. M. Collins, "Temperature variability over Africa," Journal of Climate, vol. 24, pp. 3649-3666, 2011.Available at: https://doi.org/10.1175/2011jcli3753.1.

[29]        M. T. S. Birkett, "Fishing and farming at Lake Chad: Responses to Lake-level fluctuations," Geographic Journal, vol. 166, pp. 156-172, 2000.Available at: https://doi.org/10.1111/j.1475-4959.2000.tb00015.x.

[30]        G. Andrae and B. Beckman, The wheat trap: Bread and underdevelopment in Nigeria. London: Zed Books, 1985.

[31]        E. Dike, "Problems of large-scale irrigation schemes in Nigeria," Science, Technology & Development, vol. 8, pp. 245-252, 1990.

[32]        M. T. Coe and J. A. Foley, "Human and natural impacts on the water resources of the Lake Chad basin," Journal of Geophysical Research: Atmospheres, vol. 106, pp. 3349-3356, 2001.Available at: https://doi.org/10.1029/2000jd900587.

[33]        M. Mortimore, Roots in the African dust: Sustaining the Sub-Saharan Drylands: Cambridge University Press, 1998.

[34]        M. Mortimore and W. M. Adams, Working the Sahel: Environment and society in Northern Nigeria. London: Routledge, 1999.

[35]        E. P. Stebbing, "The encroaching Sahara; The threat to the West African Colonies," Geographical Journal, vol. 85, pp. 506-524, 1935.

[36]        E. P. Stebbing, "The advance of the desert," Geographical Journal, vol. 91, pp. 356-359, 1938.

[37]        H. Lamprey, "Report on the desert encroachment reconnaissance in northern Sudan, October 21 – November 10, 1875," Desertification Control Bulletin, vol. 17, pp. 1-7, 1988.

[38]        J. G. Charney, "Dynamics of deserts and drought in the Sahel," Quarterly Journal of the Royal Meteorological Society, vol. 101, pp. 193-202, 1975.Available at: https://doi.org/10.1256/smsqj.42801.

[39]        E. Dike and N. Dike, Global warming and climate change: Causes, symptoms and coping strategies: : iUniverse, 2017

[40]        J. J. Dukiya and V. Galhot, "Remote sensing and GIS based assessment of flood vulnerability in Lokoja (Nigeria)," Journal of Environmental Science and Sustainability, vol. 1, pp. 74-80, 2013.

[41]        G. Conway, "The science of climate change in Africa: Impacts and adaptation," Grantham Institute for Climate Change Discussion Paper, vol. 1, p. 24, 2009.

[42]        N. B. Mijindadi and J. O. Adegbehin, "Drought, desertification and food production in Nigeria," Savanna, vol. 12, pp. 25-40, 1991.

[43]        FAO. Irrigation potential in Africa: A basin approach. FAO Land and Water Bulletin, 4, 1997.

[44]        D. Smith, "Death stalks millions in drought-stricken areas," National Geographic News, 2000.

[45]        C. J. Tucker, B. N. Holben, and T. E. Goff, "Intensive forest clearing in Rondônia, Brazil, as detected by satellite remote sensing," Remote Sensing and the Environment, vol. 15, pp. 255-261, 1984.Available at: https://doi.org/10.1016/0034-4257(84)90035-x.

[46]        C. J. Tucker, J. E. G. Townsend, and T. E. Goff, "African land cover classification using satellite data," Science, vol. 277, pp. 187-198, 1985.Available at: https://doi.org/10.1126/science.227.4685.369.

[47]        C. J. Tucker, C. O. Justice, and S. D. Prince, "Monitoring the grasslands of the Sahel, 1984-1985," International Journal of Remote Sensing, vol. 7, pp. 1571-1583, 1986.Available at: https://doi.org/10.1080/01431168608948954.

[48]        N. Brooks, "Drought in the African Sahel: Long term perspectives and future prospects," Saharan Studies Program and Tyndall Centre for Climate Change Research Working Paper No. 61, 2004.

[49]        M. P. Todaro and S. C. Smith, Economic development, 10th ed.: Addison-Wesley, 2009.

[50]        F. C. Onuoha, "Saving Africa’s shrinking lakes through inter-basin water transfer: Reflections on the Lake Chad replenishment project," Nigerian Journal of International Affairs, vol. 34, pp. 65-84, 2008.

[51]        J. Ibrahim, Lake Chad as a instrument of international cooperation. In Asiwaju, A.I. and Adeniyi, P.O. (Eds.), Borderlands in Africa: A multidisciplinary and comparative focus on Nigeria and West Africa. Lagos: University of Lagos Press, 1989.

[52]        Y. T. Hwang, D. M. Frierson, and S. M. Kang, "Anthropogenic sulfate aerosol and the Southward shift of tropical precipitation in the late 20th century," Geophysical Research Letters, vol. 40, pp. 2845-2850, 2013.Available at: https://doi.org/10.1002/grl.50502.

[53]        R. Sanders, "Rising temperatures difference between hemisphere could dramatically shift rainfall patterns in tropics," Berkeley News, 2013.

[54]        D. Polson, M. Bollasina, G. C. Hergerl, and L. J. Wilcox, "Decreased monsoon precipitation in the Northern Hemisphere due to anthropogeni aerosols," Geophysical Research Letters, vol. 41, pp. 6023-6029, 2014.Available at: https://doi.org/10.1002/2014gl060811.

[55]        B. Verheggen and E. P. Weijers, Climate change and the impact of Aerosol: Energy Research Centre of the Netherlands (ECN), 2010.

[56]        The Economist, Climate science: A sensitive matter. London: The Economist, 2013.

[57]        J. Atkinson and K. Botlen, "Lake victoria hazardous thunderstorm study could improve climate forecasts around U.S," NASA Global Climate Change. Vital Signs of the Planet, 2016.

[58]        W. Thiery, E. L. Davin, S. L. Seneviratne, K. Bedka, S. Lhermitte, and N. P. M. VanLipzig, "Hazardous thunderstorm intensification over Lake Victoria," Nature Communications, vol. 7, p. 12786, 2016.Available at: 10.1038/ncomms12786.

[59]        C. M. O’Reilly, S. R. Allen, P. D. Plisner, A. S. Cohen, and B. A. McKee, "Climate change decreases aquatic ecosystem productivity in Lake Tanganyika," Nature, vol. 424, pp. 766-768, 2015.

[60]        M. Banda, Rapid drop in Lake Malawi’s water levels drives down fish stocks: Guardian (UK) Development Network, 2013.

[61]        GIZ, German society for international cooperation, African supraregional adaptation to climate change in the Lake Chad Basin. Bonn: Federal Ministry for Economic Cooperation & Development, 2015.

[62]        C. Okonkwo, B. Demoz, R. Sakai, C. Ichoku, C. Anarado, J. Adegoke, and S. I. Abdullahi, "Combined effect of El Niňo Southern oscillation and atlantic multidecadal oscillation on Lake Chad level variability," Cogent Geoscience, vol. 1, p. 1117829, 2015.Available at: https://doi.org/10.1080/23312041.2015.1117829.

[63]        B. Dong and R. Sutton, "Dominant role of greenhouse-gas forcing in the recovery of sahel rainfall," National Climate Change, vol. 5, pp. 757-760, 2015.Available at: https://doi.org/10.1038/nclimate2664.

[64]        P. G. Jones and P. K. Thornton, "The potential impacts of climate change on maize production in Africa and Latin America in 2055," Global Environmental Change, vol. 13, pp. 51-59, 2003.Available at: https://doi.org/10.1016/s0959-3780(02)00090-0.

[65]        U. Adhikari, A. P. Nejadhashemi, and S. A. Woznicki, "Climate change and Eastern Africa: A review of impact on major crops," Food and Energy Security, vol. 4, pp. 110-132, 2015.Available at: https://doi.org/10.1002/fes3.61.

[66]        P. Miklin and N. V. Aladin, "Reclaiming the Aral Sea," Scientific American, vol. 298, pp. 64 - 71, 2008.

[67]        W. M. Adams, Green development: Environment and sustainability in a developing world, 3rd ed. London & New York: Routledge Taylor & Francis Group, 2009.

[68]        The Economist, Special report the Arctic: The Melting North. London: The Economist, 2012.

[69]        IPCC, International panel on climate change, graph of 20 glaciers on retreat worldwide climate change 2001, WGI: The scientific basis: Cambridge University Press, 2001.

[70]        J. Cook, "Infographic on where global warming is going," Skeptical Science. com, vol. 20, 2011.

[71]        F. Maes, A. Cliquet, W. Due Plessis, and McLeoa-Kilmurray, Biodiversity and climate change: Linkages at international and local levels: Edward Elgar, 2013.

[72]        P. A. Samuelson, "The pure theory of public expenditure," Review of Economics and Statistics, vol. 36, pp. 387-389, 1954.Available at: https://doi.org/10.2307/1925895.
